Installing the Charger Tray and Charger

4. Ensure that the AC mains supply to the charger is isolated.
5. Install the charger tray onto the support rails securing it with the M4 screws, nuts and washers
supplied; see Figure 7.

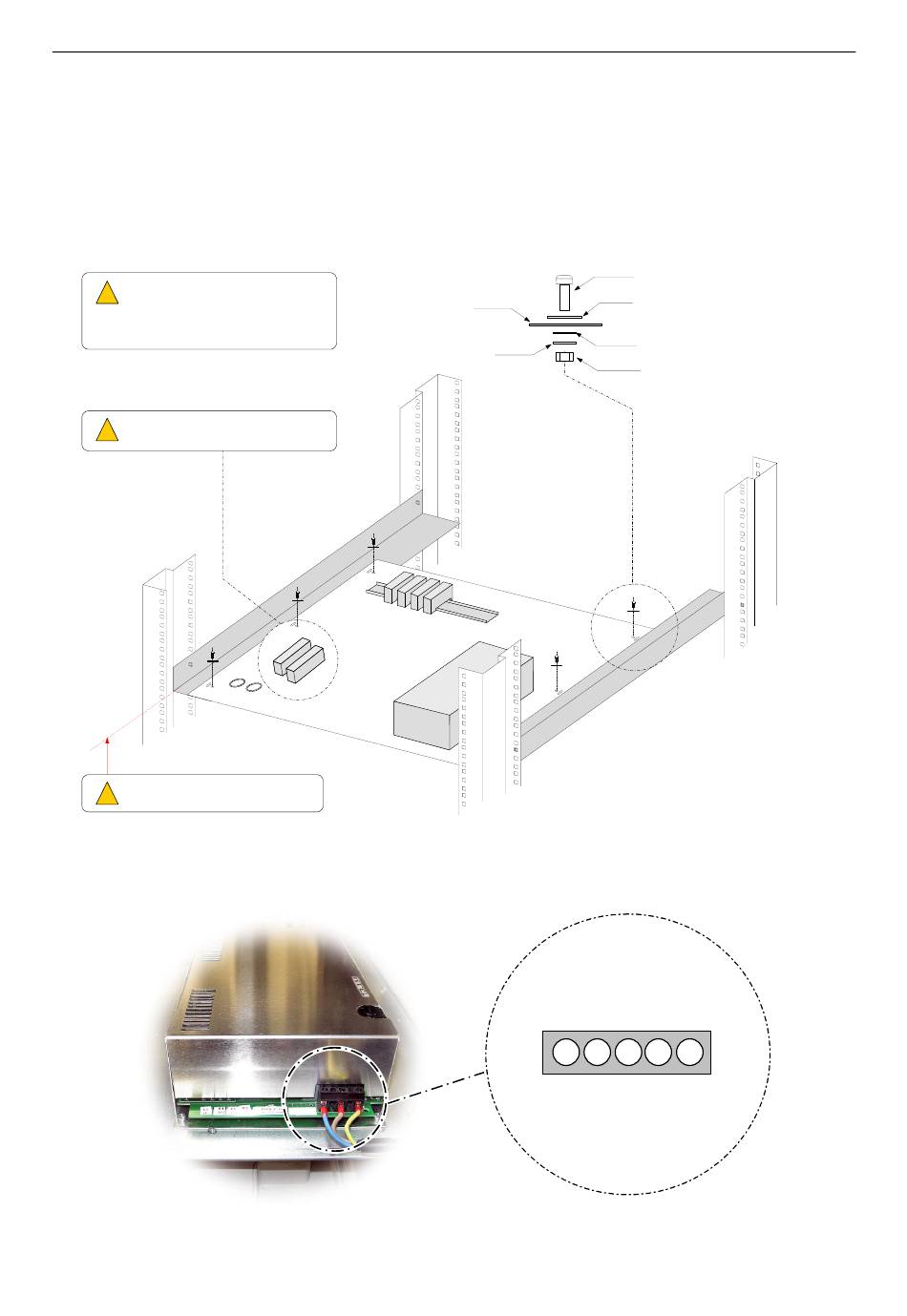

Figure 7 Installing the charger tray
Ensure that the charger tray is
!
!
attached to the rack by six M4
screws and nuts and that they are
tightly fitted.
Protection cap must be fitted.
! !
Distance from battery tray = 5U
!
!
6. Connect the charger mains cable to the terminal block marked N-L-E; see Figure 8.
Figure 8 Charger connections (front of rack)
