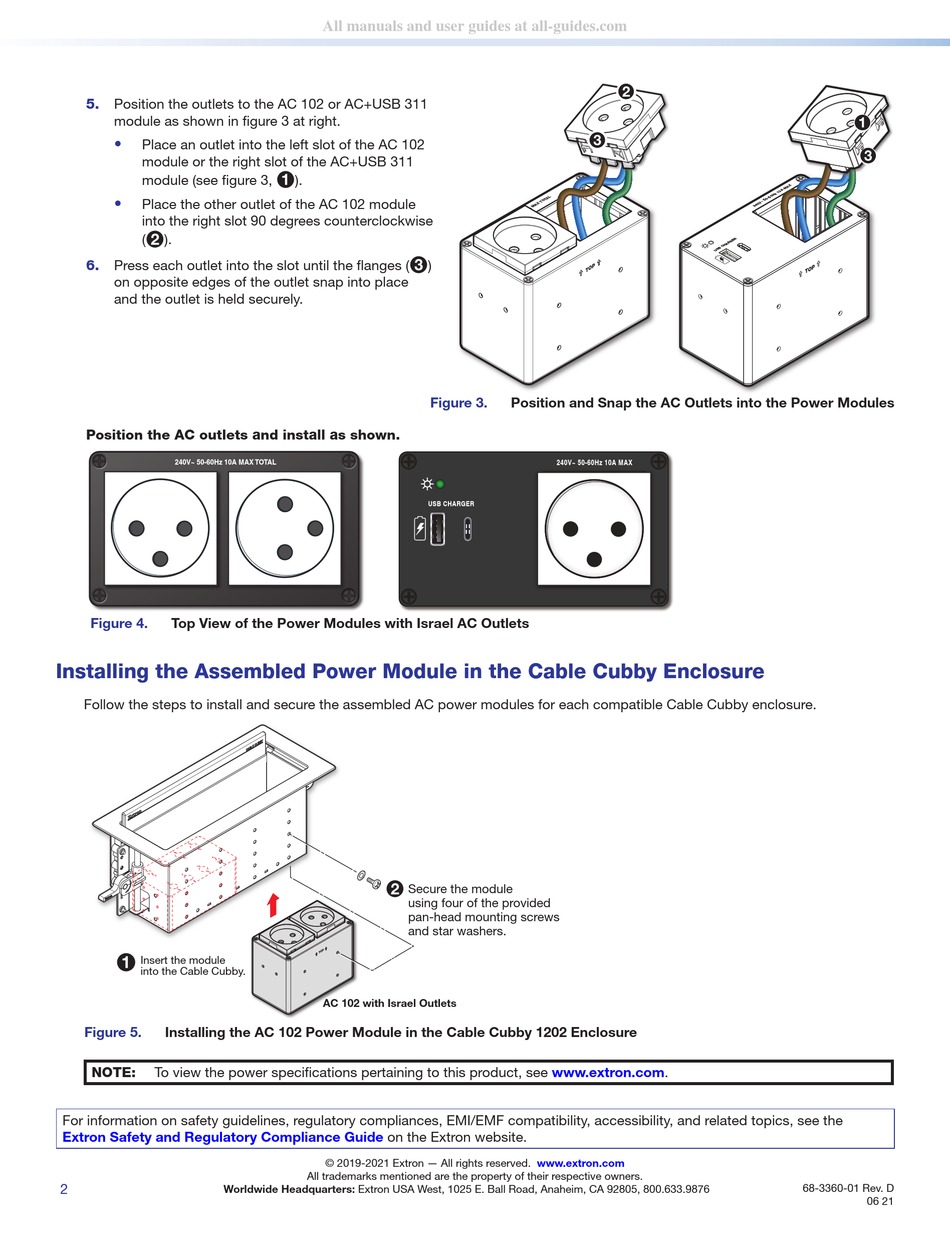

Positioning And Installing The Ac Outlets - Extron electronics AC+USB 311 Installation Manual

5. Position the outlets to the AC 102 or AC+USB 311
module as shown in figure 3 at right.
•
Place an outlet into the left slot of the AC 102
module or the right slot of the AC+USB 311
module (see figure 3,
•
Place the other outlet of the AC 102 module
into the right slot 90 degrees counterclockwise
2
( ).
6. Press each outlet into the slot until the flanges (
on opposite edges of the outlet snap into place
and the outlet is held securely.
Position the AC outlets and install as shown.
240V~ 50-60Hz 10A MAX TOTAL
Figure 4. Top View of the Power Modules with Israel AC Outlets
Installing the Assembled Power Module in the Cable Cubby Enclosure
Follow the steps to install and secure the assembled AC power modules for each compatible Cable Cubby enclosure.
1
Insert the module
into the Cable Cubby.
Figure 5. Installing the AC 102 Power Module in the Cable Cubby 1202 Enclosure
NOTE: To view the power specifications pertaining to this product, see www.extron.com.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
2
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
All manuals and user guides at all-guides.com
1 ).
3 )
Figure 3.
USB CHARGER
2
Secure the module
using four of the provided
pan-head mounting screws
and star washers.
P
T O
AC 102 AC 102 with Israel Outlets
on the Extron website.
© 2019-2021 Extron — All rights reserved.
All trademarks mentioned are the property of their respective owners.
2 2 2 2 2
3 3 3 3 3 3
P
T O
Position and Snap the AC Outlets into the Power Modules
240V~ 50-60Hz 10A MAX
www.extron.com
1
3
P
T O
68-3360-01 Rev. D
06 21
