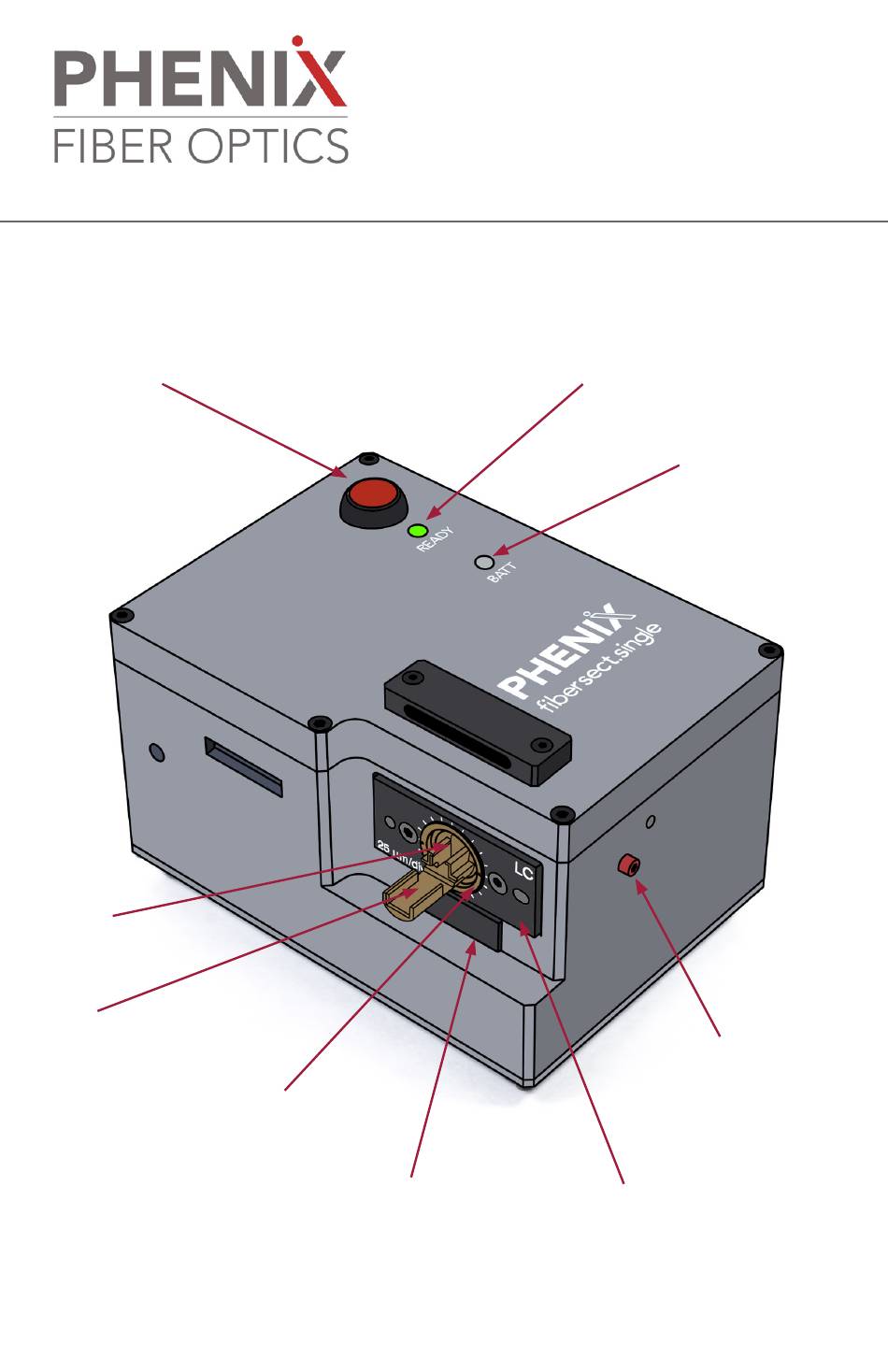

- Page 1 QUICK START GUIDE QUICK START GUIDE Start Button READY Light BATT Light Adapter Hole Adapter Extension Shipping Screw Adjusting Ring Waste Bin Adapter...
- Page 2 Remove the Shipping Screw Remove the Shipping Screw Re-install shipping screw if shipping or transporting the fibersect. Hand-tighten only. Wake Up the Fibersect Wake Up the Fibersect Press and hold Start Button to turn on the fibersect and release when the READY Light turns red. The READY Light will then turn green, indicating that it’s ready for use.
- Page 3 Adjusting the Cut Length with Adjusting Ring Adjusting the Cut Length with Adjusting Ring As shipped, the installed adapter will cut at approximately 100-200 µm from the face of the ferrule. This distance can be adjusted over a wide range; a distance of 50-100 µm is recommended.
- Page 4 Fibers should protrude no more than 7 mm from the face of the ferrule. • • Under no circumstances should the top or bottom cover of the fibersect be removed or adjustments made. Doing so will void the warranty. Phenix Fiber Optics, LLC Phone/Fax: 800.716.8052 2011 N. 22nd Ave, Suite 3 info@phenixfo.com Bozeman, MT 59718 www.phenixfo.com...
