INTEGRATED LED AC + EMERGENCY DRIVER
18450X (184500/184501)
A1-EN

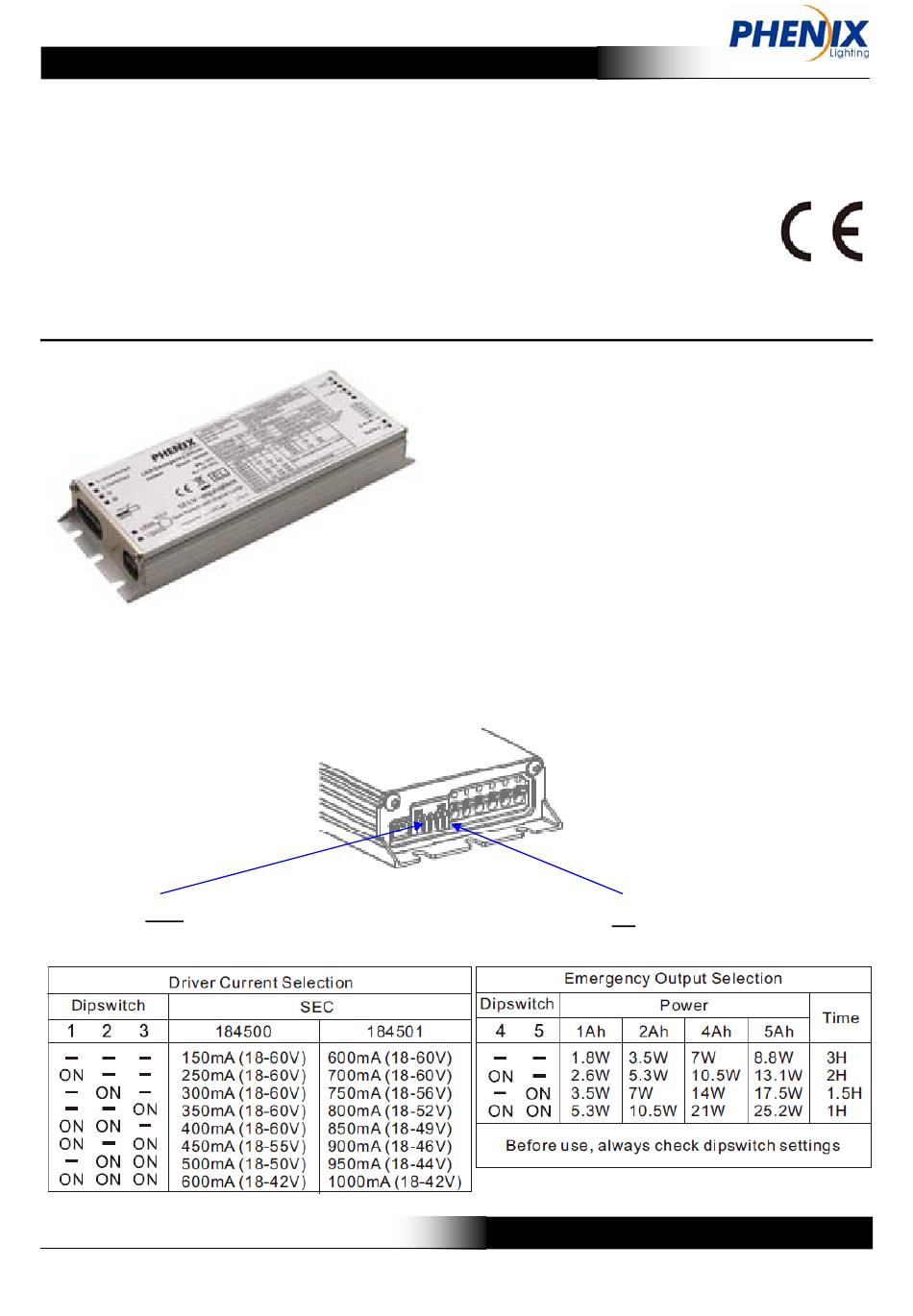

Dipswitch 1/2/3: Setting LED working
current in normal mode
Phenix Lighting (Xiamen) Co., Ltd
No.89-3, Xiyuan Road, Xinyang Industrial Zone, Haicang, 361028 Xiamen, China.
Tel: 0086-592-6892619 Fax: 0086-592-6892289
1. For normal and emergency operation of LEDs, no
need an extra AC LED driver
2. Constant current, multi-current selectable output
3. Normal mode LED soft start, emergency mode
conversion within 0.3 seconds
4. 1-10V dimmable
5. Emergency output (power and time) selectable
6. Auto Test
7. Slim aluminum housing
8. Suitable for indoor, dry and damp applications
Dipswitch 4/5: Setting emergency output
