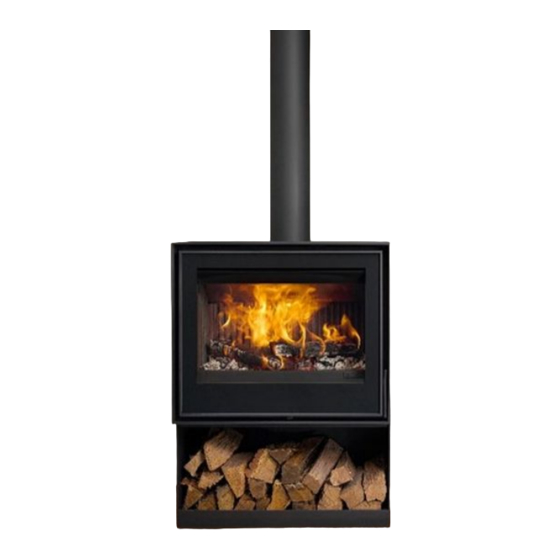

barbas BOX30 75 User Manual

Hide thumbs Also See for BOX30 75:
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
30
BOX
75
Serial number:
Production date:

Advertisement

Table of Contents
loading

Related Manuals for barbas BOX30 75

Summary of Contents for barbas BOX30 75

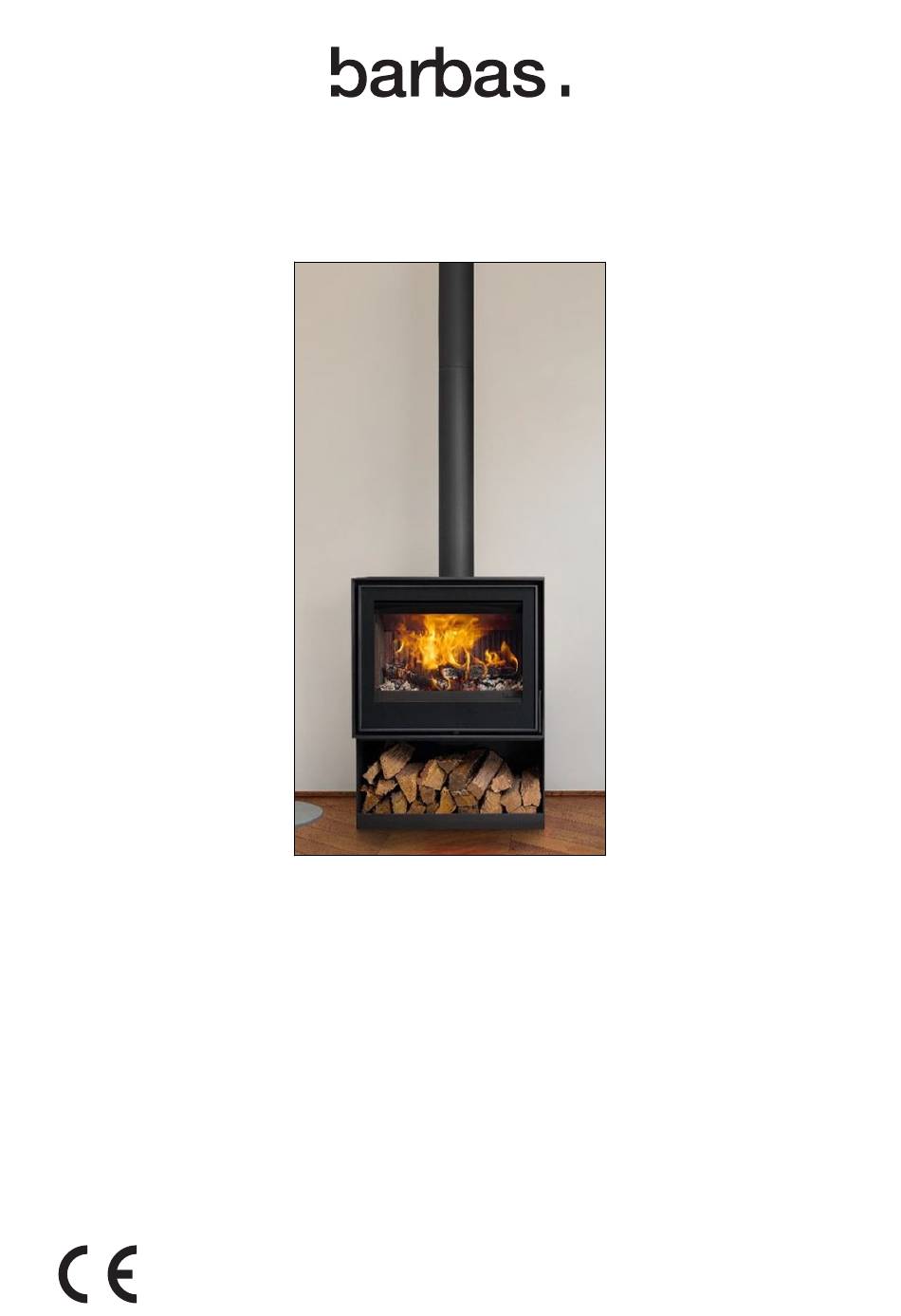

  • Page 1 User manual Serial number: Production date:...
  • Page 2 Barbas Bellfires BV.This document could contain technical inaccuracies or typographical errors. Barbas Bellfires BV reserves the right to revise this document from time to time in thecontents thereof.

  • Page 3: Table Of Contents

    Contents Contents Declaration of Performance..............5 75............................. 5 75 with wood log storage module..................6 About this document................7 How to work with this document....................7 Warnings and cautions used in this document................7 Related documentation........................ 7 Description....................8 Overview of the front of the appliance..................8 Intended use..........................
  • Page 4 Contents Warranty Terms..................23 BOX 30 75...

  • Page 5: Declaration Of Performance

    Name, registered trade name or registered trade Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; The Netherlands mark and contact address of the manufacturer as required pursuant to Article 11(5)

  • Page 6: Box 75 With Wood Log Storage Module

    Name, registered trade name or registered trade mark Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; The Netherlands and contact address of the manufacturer as required pursuant to Article 11(5)

  • Page 7: About This Document

    About this document About this document This document shows the necessary information to do these tasks on the 75: • Operate the appliance • Do basic maintenance This document refers to the 75 as 'the appliance'. This document is an essential part of your appliance.Read it carefully before you do work on the appliance.

  • Page 8: Description

    Description Description Overview of the front of the appliance Door handle Ash tray (under the grate) Glass Cast iron panels Primary air inlet Flue connection Grate Control lever Steel bottom plates Steel base Log guard BOX 30 75...

  • Page 9: Intended Use

    Description   Intended use The appliance is intended for indoor use to heat the room wherein it is installed. Do not use it for other purposes. It is not allowed to use the appliance as primary heating appliance. The appliance is intended for use with wood logs or wood briquettes as fuel. Do not use other fuels.

  • Page 10: Safety

    Note: • Do inspect and clean the appliance, the chimney and the external combustion air supply by a Barbas dealer minimum every year. • Do not use the appliance continuously. The intended use is as intermittent appliance.

  • Page 11: Safety Instructions With Regard To The Environment

    Safety   Safety instructions with regard to the environment • Dispose of the packing materials in an environmentally friendly way. • Dispose of ceramic heat-resistant glass as household waste. Do not dispose of ceramic heat-resistant glass in a glass recycling container. •...

  • Page 12: Fuel

    Fuel Fuel Fuel types Warning: Do not use coal, anthracite, coal briquettes, liquid fuel or gel fuel. The appliance is not designed for these fuels. Use of these fuels is dangerous and can lead to bodily harm and to serious damage to the appliance. Suitable fuels are: •...

  • Page 13: Operation

    Operation Operation Preparation before first use Report any defects to your dealer immediately. Make sure that the appliance is not damaged. Make sure that the glass is not damaged. Make sure that the door opens and closes completely. Remove document and components from the combustion chamber. Make sure that the control lever moves easy.
  • Page 14 Operation Put 6 wood logs crosswise on the floor of the combustion chamber. Put a layer of small wood pieces and 2 firestarter cubes on top of the wood logs. Put some kindling wood above the firestarter cubes. Light the firestarter cubes with a lighter or a match. Close the door of the appliance.

  • Page 15: Reload With Fuel

    Operation 6.3.2 Reload with fuel Caution: If there is insufficient burning material in the firebed to light a new fuel charge, excessive smoke emission can occur. Refueling must be done onto a sufficient quantity of glowing embers and ash to make sure that the new fuel charge will ignite in a reasonable period.

  • Page 16: General Firing Tips

    Operation Control lever in the far right position: primary air inlet maximum open secondary air inlet maximum open airwash inlet maximum open Control lever in the center position: primary air inlet is closed secondary air inlet maximum open airwash inlet maximum open Control lever in the far left position: primary air inlet is closed secondary air inlet is closed...
  • Page 17 Operation • Do not remove all the ashes. An ash layer in the combustion chamber forms a heat insulating layer, that helps the fuel to ignite easy. • Do not set the control lever in the far left position (all combustion air inlets closed) when the appliance is used.

  • Page 18: Maintenance

    Maintenance Maintenance Maintenance schedule Caution: Clean the glass when it is dirty. If the glass is not cleaned when it is dirty the glass can become permanently dull. Task Frequency Procedure Remove the ashes When necessary Refer to section Clean the glass When necessary Refer to section Maintenance by your fitter...

  • Page 19: Troubleshooting

    Troubleshooting Troubleshooting Problem Possible cause Possible solution • Set the control lever in the far left position. • Call the emergency services. (112) • Put out the fire in the appliance with sand. Warning: Chimney fire (recognized by a Ignition of soot and tar de- Never use water roaring sound in the chimney) posits in the chimney.
  • Page 20 Troubleshooting Problem Possible cause Possible solution • Use the recommended amount of fuel. Refer to section • Increase the amount of com- The combustion chamber is bustion air with the control lev- 6.3.3 not hot enough er. Refer to section •...

  • Page 21: Information On Disposal Of The Appliance

    Information on disposal of the appliance Information on disposal of the appliance • Dispose of an obsolete appliance according to instructions of the authorities or the installer. • The information in this section is informative. Always obey the national and local regulations on recycling and disposal of the appliance or parts of the appliance.

  • Page 22: Technical Data

    Technical data Technical data Name Barbas • Model • 75 with wood log storage module EN 13240:2001-A2:2004 EN 16510-1 annex D, E, F Tested in accordance with BS 3841-2:1994 Energy efficiency index (according EU 2015/1186) Energy efficiency class • Wood logs Fuel •...
  • Page 23 Warranty Terms Warranty Terms To make a claim under the warranty, it is important to register the Barbas appliance after pur- chase via www.barbasbellfires.com. Barbas Bellfires Warranty Terms Barbas Bellfires B.V. guarantees the quality of the supplied Barbas appliance and the quality of the materials used.
  • Page 24 Article 5: Warranty period This warranty will only be granted during the warranty period. The body of the Barbas appliance is guaranteed for a period of 10 years against construction and/or material faults, starting from the moment of purchase. For other parts of the Barbas appliance, a similar warranty applies from the moment of purchase for a period of two years.
  • Page 25 Warranty Terms BOX 30 75...
  • Page 26 Warranty Terms BOX 30 75...
  • Page 27 Warranty Terms BOX 30 75...
  • Page 28 Your Barbas dealer 11.03.2023 - 352578 - 275-003...
