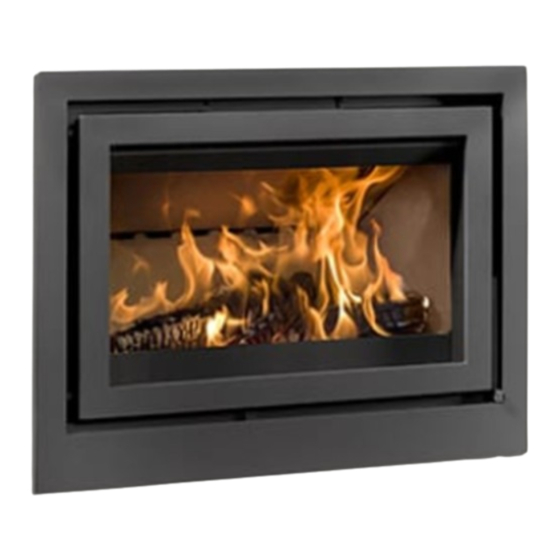

barbas UNIVERSAL-6 70 Instructions For Use & Maintenance Manual

Wood-burning appliance
Hide thumbs Also See for UNIVERSAL-6 70:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTIONS FOR USE & MAINTENANCE MANUAL
UNIVERSAL-6 70
Barbas wishes you many cosy evenings with your new appliance
This document is an essential part of your appliance.
Read it carefully before use of the appliance and keep it in a safe place!
Version number: 03 - 338113
Date: 01-07-2019
Wood-burning
appliance
Serial number:
Production date:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNIVERSAL-6 70 and is the answer not in the manual?

Questions and answers

Related Manuals for barbas UNIVERSAL-6 70

Summary of Contents for barbas UNIVERSAL-6 70

  • Page 1 UNIVERSAL-6 70 Wood-burning appliance Barbas wishes you many cosy evenings with your new appliance This document is an essential part of your appliance. Read it carefully before use of the appliance and keep it in a safe place! Version number: 03 - 338113...
  • Page 3 Name, registered trade name or registered trade mark Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; The Netherlands and contact address of the manufacturer as required pursuant to Article 11(5)
  • Page 4 UNIVERSAL-6 70 Instructions for use...

  • Page 5: Table Of Contents

    UNIVERSAL-6 70 CONTENTS Page 1. INTRODUCTION ..................2. SAFETY ...................... 3. OPERATION ....................4. USING THE APPLIANCE FOR THE FIRST TIME ........5. USE ......................6. FUEL ......................7. MAINTENANCE ..................8. FREQUENTLY ASKED QUESTIONS ............9. TECHNICAL DATA ..................
  • Page 6 UNIVERSAL-6 70 Instructions for use...

  • Page 7: Introduction

    UNIVERSAL-6 70 INTRODUCTION Congratulations on your purchase of this modern Barbas appliance. This quality product will provide you with many years of enjoyment due to the fl ame effect and warmth that it provides. This appliance is recommended as suitable for use in smoke control areas when burning wood logs.

  • Page 8: Safety

    Ensure that the room in which the appliance is situated has adequate ventilation. It is essential that the appliance, the fl ue and combustion air supply are cleaned and inspected annually by a Barbas dealer/specialist. The safe operation of the appliance will thus remain guaranteed. Instructions for use...
  • Page 9 UNIVERSAL-6 70 The appliance must never be used with the door open or the door glass removed. Wood and wood briquettes may be stoked in the appliance. Coals can’t be burned in the appliance. Avoid over-loading (white burning glow), caused, for example, by lengthy burning with a fully open primary air vent (combustion air supply slider all the way to “...

  • Page 10: Operation

    UNIVERSAL-6 70 OPERATION Handle Ceramic heat-proof glass Convection air outlet opening (appliance) Outlet opening (2x grate) (chimney breast) ventilation air chimney breast Outlet opening (2x grill convection set) (chimney breast) convection air Grate Ashtray Inlet opening (2x grate)(chimney breast) ventilation air chimney breast...

  • Page 11: Using The Appliance For The First Time

    UNIVERSAL-6 70 USING THE APPLIANCE FOR THE FIRST TIME GENERAL Allow your home to dry properly, after you have had your chimney breast modifi ed or newly built. Walls which have not been allowed to dry properly are a magnet for dust such as any smoke particles created when stoking up the appliance or suddenly opening the door.
  • Page 12 UNIVERSAL-6 70 4.3 INSPECTION OF THE APPLIANCE BEFORE FIRST USE Check all available functions before using the appliance for the fi rst time. • Check the opening and closing operation of the door. Turn the handle all the way down: Door is locked.
  • Page 13 UNIVERSAL-6 70 • Check whether the 2 retardant plates are located correctly in the supports. • Check the operation of the slider for the regulation of the combustion air intake (middle below the window). • Check whether the ashtray is completely empty.

  • Page 14: Use

    UNIVERSAL-6 70 5.1 VENTILATION If wood is to burn, it needs air. For each kilo of wood that you put on the appliance (door closed), 10 - 15 m of extra air is needed. That means about 35 m per hour! Depending on how the appliance has been installed, the combustion air will either be drawn directly from outside or from the living room itself.
  • Page 15 UNIVERSAL-6 70 5.3 INSTRUCTIONS WHILE STOKING Using the air supply slider you can adjust the air supply for further combustion. Make sure the appliance burns quietly. Note: Once you have got the appliance going, leave the air supply slider in the centre position for optimal combustion.
  • Page 16 UNIVERSAL-6 70 Control range of primary air supply (by grate) Control range of secondary and tertiary air supply Combustion air supply slider Centre position We recommend that you maintain a substantial layer of ash (2 - 3 cm). This not only forms a protective layer for the base of the appliance but also signifi...
  • Page 17 UNIVERSAL-6 70 Ventilation When using the appliance, ensure a good supply of fresh air, particularly if the combus- tion air is drawn from the room itself. Turn on the fl ue gas fan if the fl ue is fi tted with one.
  • Page 18 UNIVERSAL-6 70 GENERAL HEATING TIPS • Burn dry wood only. Damp wood not only burns poorly, it causes more pollution in the appliance (window), the chimney, your room (when opening the door of the appliance, for instance) and the environment. Wood can only be classifi ed as dry if it has been stored under a Dutch barn for at least two years (not covered with plastic).
  • Page 19 UNIVERSAL-6 70 OUTPUT In practice, combustion is all about loss. This entails: • Loss through excess heat leaving the chimney, rather than going into the room. • Loss through insuffi cient combustion, such as CO (carbon monoxide) and soot particles.

  • Page 20: Fuel

    If this happens, there is a risk of fi re. It may also damage your appliance and chimney. BARBAS will not assume liability for damage caused by overheating. Burning one layer of wood can lead to varying outputs. When used correctly, one load will burn in around 45 minutes.
  • Page 21 UNIVERSAL-6 70 Per fi lling: (= for 45 minutes) Wood: 2 blocks each around 1.2 kg Briquettes: 3 blocks each around 0.5 kg Dimensions wood block: c. 30 cm long and 30 cm perimeter ê The maximum burning load is based on a nominal capacity of 9 kW and a effi...

  • Page 22: Maintenance

    UNIVERSAL-6 70 MAINTENANCE • Emptying the ashtray • Regularly check how much ash is in the ashtray. • Make sure the ashtray is never more than ¾ full. If the ashtray is more than ¾ full, it can obstruct the fl ow of air to the appliance.
  • Page 23 UNIVERSAL-6 70 • Paint Check annually, if necessary touch up with BARBAS heat-resistant paint (do not paint when the appliance is in use!) • Parts Individual parts for replacement/accessories are available from your BARBAS dealer Use only original parts • Modifi cations Introduced modifi...

  • Page 24: Frequently Asked Questions

    0.4 kW. Can a wood-burning appliance/fi replace insert be connected to a central heating installation? The Barbas range does not have any appliances that can be connected to central heating installations. We do not advise attempting it!! Instructions for use...
  • Page 25 UNIVERSAL-6 70 At what temperature does the convection fan cut in? If the appliance is fi tted with a convection fan, this can be regulated using an built-in dimmer. The fan does not have any automatic regulation based on the appliance temperature.
  • Page 26 UNIVERSAL-6 70 Can I leave my appliance unattended? Only do this when the appliance is burning quietly, with just a little wood, with a closed door and with the combustion air supply slider in the centre position between “ + ” and “...
  • Page 27 UNIVERSAL-6 70 Decomposition At moderate - high temperatures (150°C - 350°C), the decomposition process can be discerned. This is when the chemical structure of the fuel breaks down. This process involves the creation of volatile compounds such as carbon monoxide (CO), water...

  • Page 28: Technical Data

    UNIVERSAL-6 70 TECHNICAL DATA Combustion: Measured in compliance with EN 13229 : 2001 and EN 13229 - A2 : 2004 Fuel Wood Nominal output 9 kW Effi ciency Emissions (dry, at 13% O , 273 K, 1013 hPa): Carbon monoxide (CO) 0.09%;...
  • Page 29 UNIVERSAL-6 70 Combustion air supply: At least 150 cm opening in the room where the fi re is located or a outside air supply opening of Ø125 mm in wall/fl oor. • Convection fan 230 VAC / 39 W Options: Rev control by built-in fanspeed controller.

  • Page 30: Warranty Terms

    1.1. If Barbas Bellfi res B.V. determines that the Barbas appliance you have purchased is defective as a result of a fl aw in the construction or material, Barbas Bellfi res B.V. guarantees to repair or replace the appliance free of charge, without charging any costs for labour or spare parts.
  • Page 31 Article 5: Warranty period 5.1. This warranty will only be granted during the warranty period. 5.2. The body of the Barbas appliance is guaranteed for a period of 10 years against construction and/or material faults, starting from the moment of purchase.
  • Page 32 Your Barbas dealer 03 - 010719 - 338113...
