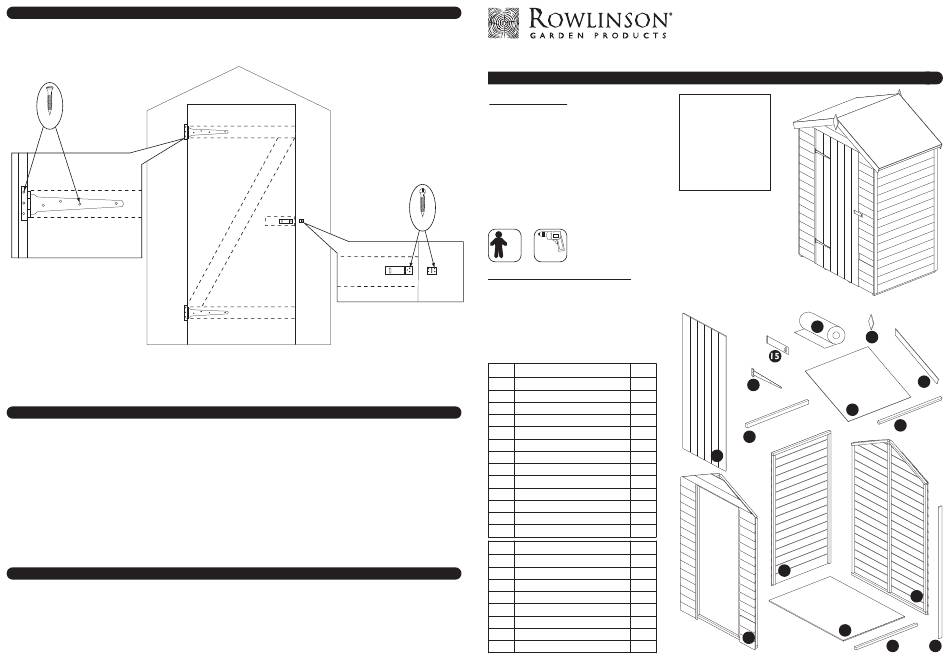

7. Door
Place door into position. Fix the two T-hinges to the door with 4 x 32mm screws per hinge. Secure the hinges to the
front panel using 3 x 32mm screws per hinge. Attach the hasp and staple with 7 x 19mm round head screws, Fit the hasp
to the door and the staple to the front panel ensuring that they are positioned so the hasp will fit over the staple.
30mm
Important information
When positioning the shed, it is recommended that adequate provision is made to ensure ground contact is avoided and
air is able to circulate underneath the building.
Placing the building on a concrete pad or slab base is acceptable provided that the building is not allowed to sit in pooled
water during wet conditions. If the building is to sit on soil or grass it MUST be erected on pressure treated wooden
50mm x 50mm or similar bearers (These are not supplied in the kit).
Rowlinson Garden Products recommend using pressure treated bearers with all buildings on any type of base.
Timber Information.
As timber is a natural material, there are certain weather conditions that may affect the materials properties. In times of
excessive dry spells the material may lose some of its internal moisture causing a certain degree of shrinkage on a panel
and in periods of excessive rain there will be a certain amount of swelling throughout the wooden panels. This process
can not be avoided. If you have problems with certain boards shrinking in dry spells try to decrease the amount of direct
sunlight on the building or the amount of air passing over the building. During hot spells spray water directly onto the
panels with the aid of a garden hose.
If in doubt of any aspect regarding the assembly, use or safety of your building please contact us :
Help Line (Normal Office Hours) 01829 261 121
ROWLINSON GARDEN PRODUCTS LIMITED
Green Lane
Wardle Nr. Nantwich
Cheshire
CW5 6BN
19mm
We constantly improve the quality of our products, occasionally the
components may differ from the components shown and are only
correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
2011 © Rowlinson Garden Products Ltd
4x3 Oxford Shiplap Shed
Assembly Instructions
Before assembly
•
We recommend that time is taken to
read the instructions before starting
assembly, then follow the easy step by
step guide. The instruction sheet is only
a guide to the assembly.
Certain items may not be shown
to scale.
•
Check all components prior to assembly
•
This product should be assembled
by no less than two people
•
Drill all components where indicated
x 2
Drill
Recommended tools for assembly
•
Power drill/screwdriver
•
3mm drill bit
•
Crosshead screwdriver bit
•
Hammer
•
Spirit level
•
Sharp knife
.
No. Components
Qty
1 Floor 1
(1174 x 882mm)
2 Floor bearer 4
(28 x 28 x 882mm)
3 Side panel 2
4 Back panel 1
5 Front panel 1
6 Roof purlin 1
(45 x 28 x 882mm)
7 Roof panel 2
(700 x 905mm)
8 Felt batten 2
(28 x 28 x 905mm)
9 Roof felt 1
(1.5m)
10 Bargeboard 4
11 Coverstrips 4
(11 x 40 x 1580mm)
12 Door 1
13 Finials 2
No. Fixing Kit Qty.
14 T-hinge 2
(200mm) (zinc)
15 Hasp and staple 1
(zinc)
16 63mm screws 2
17 50mm screws 16
18 32mm screws 14
19 19mm round head screws 7
20 30mm nails 72
21 10mm felt nails 32
English SS276B
Biocidal Products
Regulation EU 528/2012
Permawood ACQ1900 treated
wood is a treated article that
incorporates biocidal products:
copper hydroxide and
Benzalkoniumchloride. They
protect wood against fungal
decay /rot/ and insect
attack.Keep away from food,
drink and animal feeding stuffs.
Avoid breathing dust when
cutting treated wood.
