Rowlinson Triple Bin Store Assembly Instructions

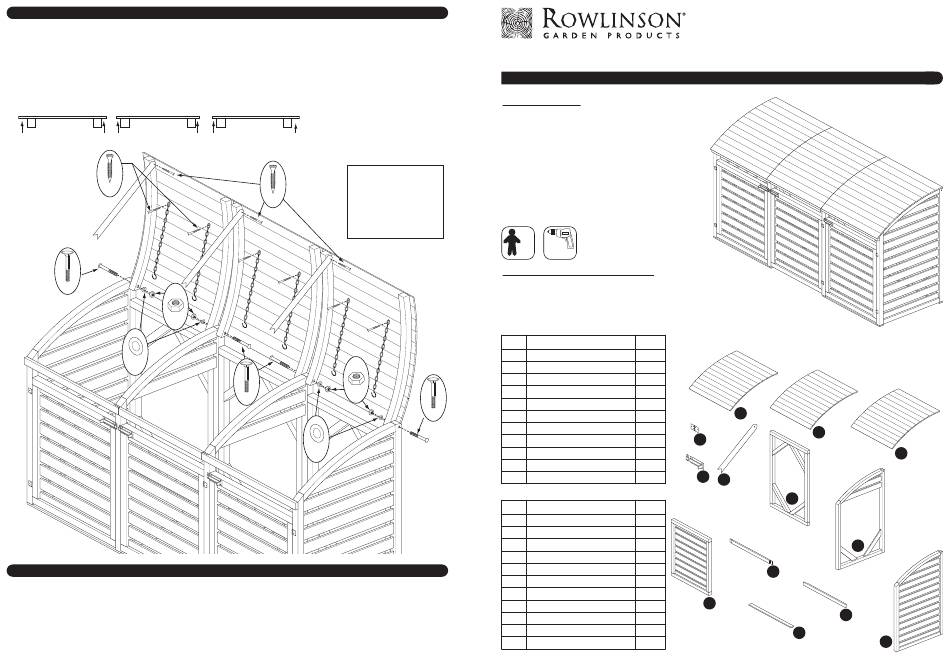

6. Lids

Determine which lid is which as described below, Position the lids in place. Align the pre-drilled bolt holes and insert a
bolts. Using the 100mm bolts in the end panels and the 150mm bolts in the dividing panels. Secure each bolt with a
washer and a nut. Do not over tighten the nuts. Attach two chains to the inside of each lid using 1 x 12 mm screw per
chain. Position the chains so that they can be looped round the handles of the bin and hooked back on the chain. Attach
the lid stays using 1 x 40mm screws per stay as shown.
Important Note: To determine which roof panel is which, look at the front
edge of each lid, the overhang of the cladding at each side is different.
View of the front edges of the three lids
Left Lid Centre Lid
Large Small
overhang overhang
12mm
100mm
Nut
Washer
If in doubt of any aspect regarding the assembly, use or safety of your bin store please contact us :
Help Line (Normal Office Hours) 01829 261 121
ROWLINSON GARDEN PRODUCTS LIMITED
Green Lane
Wardle Nr. Nantwich
Cheshire
CW5 6BN
Right Lid
Small Large
overhang overhang

Using the bin store

Position the bin inside
the store, loop the
40mm
chains around the
handles of the bin and
attach the S hook to
one of the chain links.
Nut
150mm
Washer
We constantly improve the quality of our products, occasionally the
components may differ from the components shown and are only
correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
2013 © Rowlinson Garden Products Ltd

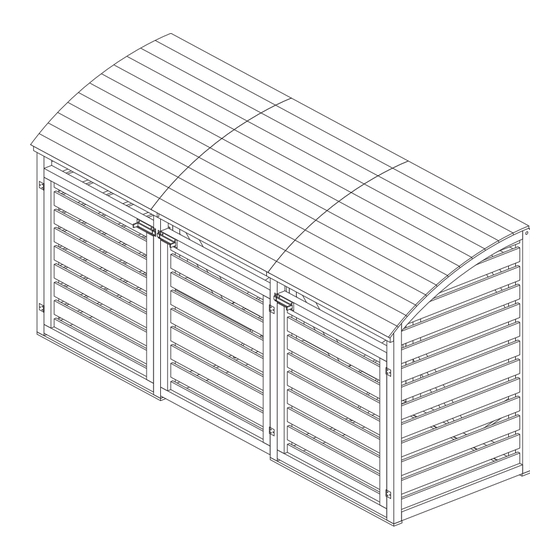

Triple Bin Store
Assembly Instructions

Before assembly

•
We recommend that time is taken to
read the instructions before starting
assembly, then follow the easy step
by step guide.The instruction sheet
is only a guide to the assembly.
Certain items may not be shown to scale.
•
Check all components prior to assembly
•
This product should be assembled
by no less than two people.
•
Never attempt to erect the assembly
in high winds.
x 2
Drill

Recommended tools for assembly

• Power drill/screwdriver
• Cross head screwdriver bit
No. Components
1 Base plate
2 End panel
3 Dividing panel
4 Back panels
5 Door
100mm
6 Left lid
7 Centre lid
8 Right lid
9 Lid stay
10 Centre front rail
11 left/right front rail
No. Fixing kit
12 Hinges
13 Slide bolt
14 150mm bolt
15 100mm bolt
16 Nuts
17 Washers
18 Chain
19 60mm screws
20 40mm screws
21 30mm screws
22 12mm screws
English SS317
Qty.
6
2
2
3
3
6
1
1
7
12
1
3
1
2 13
9
4
.
Qty
6
3
2
2
4
10
4
6
5
18
23
54
1
6
8
3
11
2
