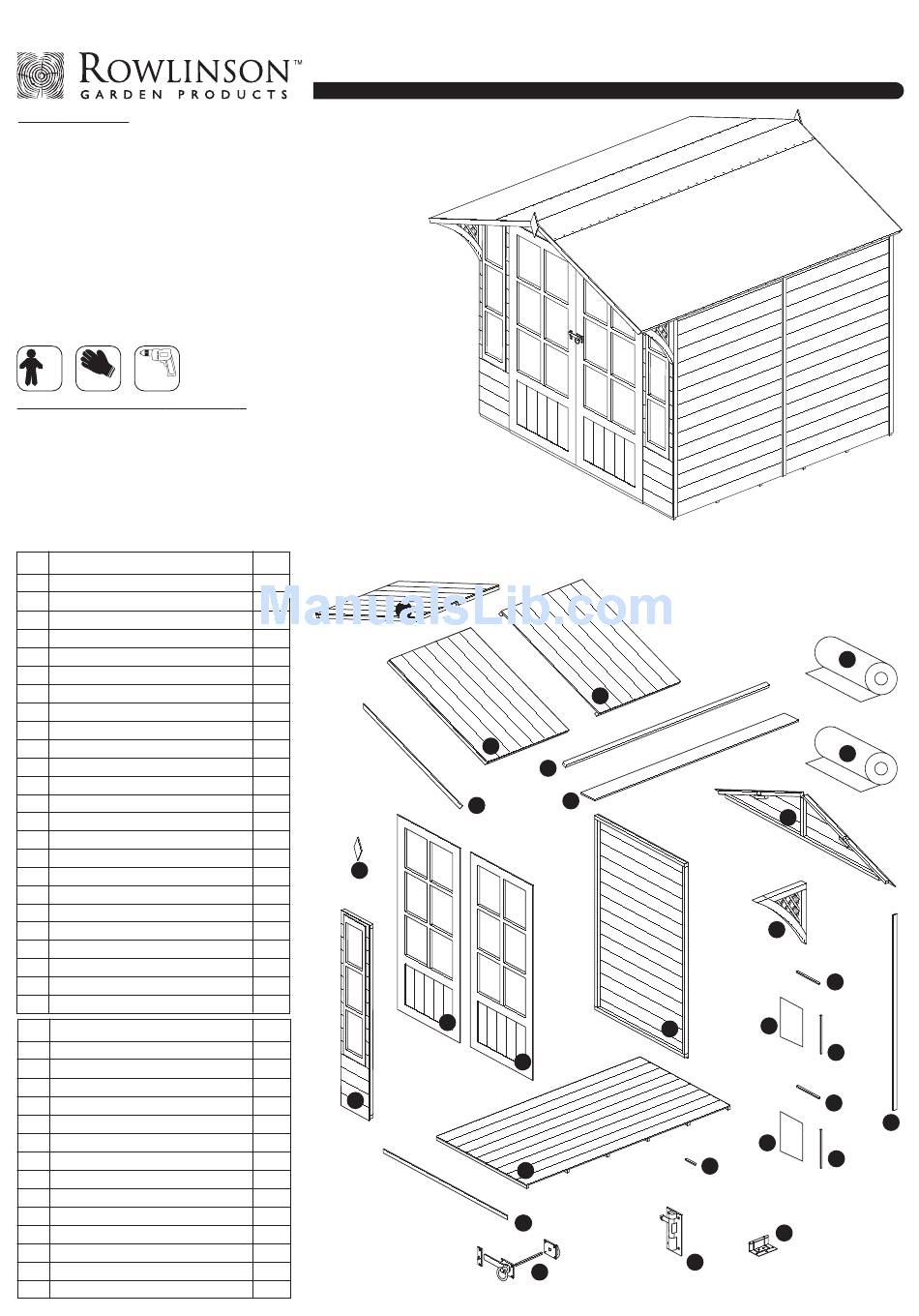

Rowlinson Eaton Summerhouse Assembly Instructions

Before assembly

•
We recommend that time is taken to read the
instructions before starting assembly, then
follow the easy step by step guide.
The instruction sheet is only a guide to
the assembly. Certain items may not be
shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no
less than 2 people.
•
Some of the components may have sharp
edges wear protective work gloves while
handling components.
•
Never attempt to erect the assembly in
high winds.
•
Drill components where indicated.
x 2
Gloves Drill

Recommended tools for assembly

•
Cross head screw driver
•
Hammer
•
Sharp knife
•
Hacksaw
•
Drill
•
4mm diameter drill bit
•
12mm diameter drill bit
•
Spirit level
•
Silicon sealant
•
Step ladder
No.

Components

1 Floor sections
2 Back and side panels
3 Front panels
4 Left door
5 Right door
6 Apex panels
7 Front right roof section
8 Front left roof section
9 Middle/rear roofs sections
10 Roof purlin
(36 x 29 x 2050mm)
11 Coverstrip
(48 x 12 x 1690mm)
12 Kick strip
(38 x 12 x 1360mm)
13 Lattice wing panels
14 Door glazing
(372 x 264mm)
15 Window gazing
(190 x 370mm)
16 Door beading
(375mm)
17 Door beading
(236mm)
18 Window beading
(165mm)
19 Window beading (
375mm)
20 Roof felt roll (
5m)
21 Roof ridge felt roll
(2.5m)
22 Barge boards
(48 x 12 x 1150mm)
23 Apex cover
(110 x 12 x 1990mm)
24 Door frame beading
(15 x 15 x 100mm)
No.

Fixing Kit

25 Finials
26 Latch Door handle kit
27 Door Hinges
28 Tower bolts
29 60mm screws
30 50mm screws
31 35mm screws
32 25mm screws
33 19mm round head screws
34 19mm black round head screws
35 60mm nails
36 40mm nails
37 25mm nails
38 10mm felt nails
Eaton Summerhouse
Assembly Instructions
Qty.
2
6
8
2
1
1
2
1
1
4
4
7
1
2
12
6
24
25
24
12
12
1
1
4
1
1
Qty.
2
1
6
3
2
2
39
6
30
8
10
8
77
219
148
9
7
10
23
22
4
5
1
12
26
English SS167
20
6
13
16
14
2
17
18
15
19
24
27
28
21
11
