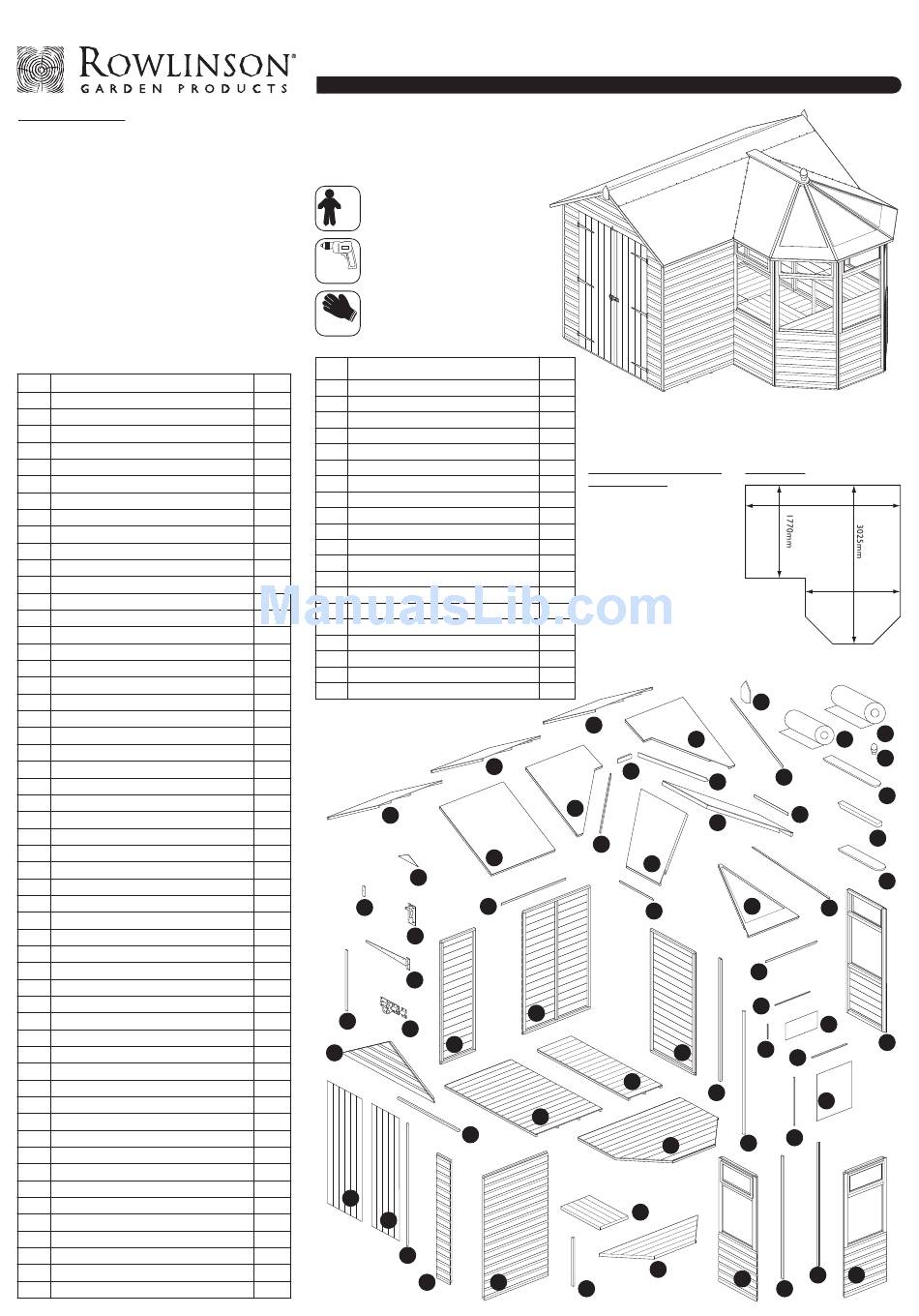

Rowlinson SS225D Assembly Instructions Manual

Corner potting store

Advertisement

Quick Links

Before assembly
We recommend that time is taken to read the
instructions before starting assembly, then
follow the easy step by step guide.
The instruction sheet is only a guide to
the assembly. Certain items may not be
shown to scale.
Check all components prior to assembly
This product should be assembled by no
less than 2 people.
Never attempt to erect the assembly in
high winds.
Drill components where indicated.
Some of the components may have sharp
edges wear protective work gloves while
handling components.
No.
Components
1
Large floor panel
2
Small floor panel
3
Angled floor panel
4
Large back wall panel
(1890x1174mm)
5
Small back wall panel
(1890x600mm)
6
Front wall panel
(1890x1125mm)
7
End wall panel
(1890x850mm)
8
Door end wall panel
(1890x250mm)
9
Corner post
(45 x35x1890mm)
10
Corner post with notch
(45 x35x1890mm)
11
Left-hand window panel
12
Window panel
(Opening window)
13
Right-hand window panel
14
Apex panel
15
Door header rail
16
Door rebate coverstrip
17
Left-hand door end roof panel
18
Right-hand door end roof panel
19
Left angled roof panel
(1160x1140mm)
20
Right angled roof panel
(1160x1040mm)
21
Left-hand roof panel
(1160x1040mm)
22
Right-hand roof panel
(1160x1040mm)
23
Left-hand hip roof panel
(1055x965mm)
24
Right-hand hip roof panel
(1055x965mm)
25
Triangular styrene roof panels
26
Left door
(1890x662mm)
27
Right door
(1890x525mm)
28
Roof block
(84x45x965mm)
29
Roof capping
(165x15x1060mm)
30
Internal roof capping
(148x15x925mm)
31
Left roof join cover
(85x17x925mm)
32
Right roof join cover
(85x17x925mm)
33
Centre roof join cover
(60x17x262mm)
34
Corner/joint coverstrips
(48x12x1890mm)
35
Angled corner coverstrips
(12x35x1910mm)
36
Angled roof coverstrips
(12x35x1160mm)
37
Door coverstrips
(12x48x920mm)
38
Apex bargeboards
39
Left-hand bargeboard
40
Right-hand bargeboard
41
Window panel bargeboards
42
Front panel bargeboard
43
Large window glazing
(750x655mm)
44
Small window glazing
(580x255mm)
45
Large window beading
(12x30x728mm)
46
Large window beading
(12x30x657mm)
47
Small window beading
(15x15x555mm)
48
Small window beading
(15x15x257mm)
49
Roofing felt roll
(10m)
50
Roofing felt roll
(5m)
51
Potting table
52
Side potting table
53
Potting table legs
(29x35x740mm)
54
Acorn finial
Corner Potting Store
Assembly Instructions
x 2
Drill
Gloves
No.
Qty.
55 Roof gussets
2
56 Special finial
1
57 T-hinge (254mm)
1
58 Turn button
2
59 Pad bolt
1
60 Tower bolt
61 Metal L-brackets
1
62 50mm coach bolts
2
63 6mm washers
2
64 6mm nuts
1
65 63mm screws
1
66 50mm screws
1
67 38mm screws
3
68 32mm screws
1
69 25mm screws
2
70 22mm screws
1
71 19mm round head screws
2
72 30mm nails
1
(1160x1132mm)
73 25mm nails
1
(1160x1132mm)
74 10mm felt nails
1
1
1
1
1
1
3
1
1
1
1
1
1
58
1
1
7
4
4
2
4
37
1
1
14
3
1
5
5
10
10
10
10
26
1
1
1
2
4
1
Fixing kit
Qty.
10
23
130
16
50
17
12
113
136
232
22
17
18
55
42
60
57
4
59
5
1
15
27
16
8
6
2
6
1
1
2
Recommended tools
for assembly
4
4
Cross head screw driver
4
Hammer
4
Sharp knife
Drill
3mm diameter drill bit
6mm diameter drill bit
Spirit level
Silicon sealant
8
Step ladder
Prop
21
20
33
32
19
24
31
23
39
7
2
10
3
52
51
53
English SS225D
Footprint
2950mm
1810mm
56
49
50
54
38
29
40
28
30
25
36
41
47
44
13
48
46
43
45
9
35
12
11
34
