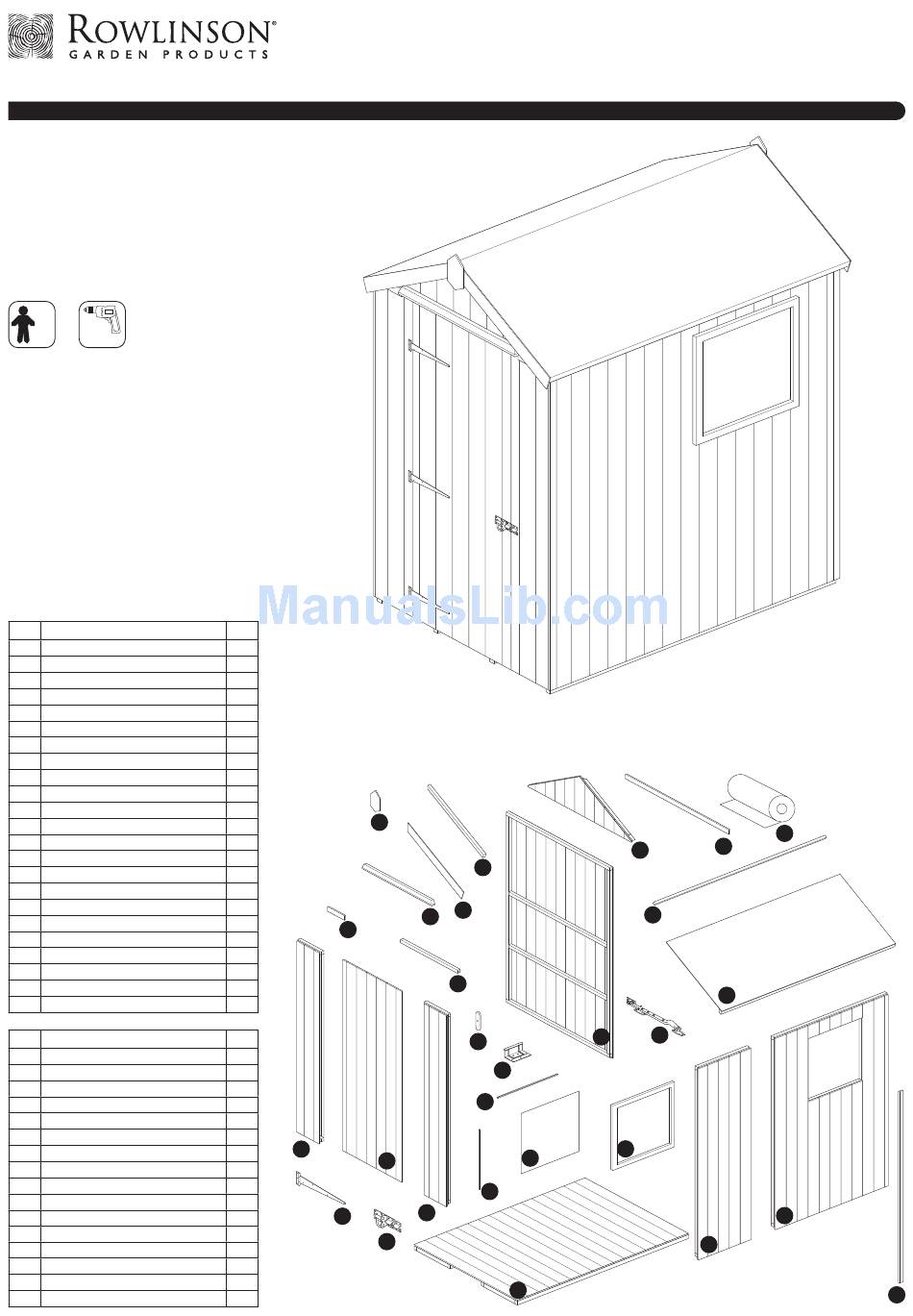

6x4 Heritage Shed
Assembly Instructions
Before assembly
• We recommend that time is taken to read
the instructions before starting assembly,
then follow the easy step by step guide.
The instruction sheet is only a guide to the
assembly. Certain items may not be shown
to scale.
• Check all components prior to assembly
• This product should be assembled by no less
than two people
• Drill all components where indicated
x 2
Drill
Recommended tools for assembly
• Power drill/screwdriver
• 3mm drill bit
• 6mm drill bit
• Crosshead screwdriver bit
• Hammer
• Spirit level
• Sharp knife
No.
Components
1
Floor
(1770 x 1174mm)
2
Large wall panel
(width1174mm)
3
Small wall panel
(width 540mm)
4
Window panel
5
Left-hand front panel
6
Right-hand front panel
7
Apex panel
8
Door header rail
(29 x 29 x 647mm)
9
Roof purlin
(29 x 29 x 1770mm)
10
Roof panel
11
Roof rafter
12
Door
13
Roof felt roll
(4m)
14
Weatherstrip
15
Rear apex joint coverstrip
16
Front apex joint coverstrips
17
Window frame
18
Glazing
(563 x 520mm)
19
Window beading
(15 x 15 x 469mm)
20
Window beading
(15 x 15 x 565mm)
21
Corner coverstrips
(12 x 40 x 1725mm)
22
Bargeboards
23
Finial
No.
Fixing Kit
24
T-hinge
(Black 254mm)
25
Pad bolt
(Black)
26
Cabinet hinge
27
Turn button
(Black)
28
Window stay
29
50mm bolt
30
Washers
31
Nuts
32
63mm screws
33
50mm screws
34
32mm screws
35
25mm screws
36
25mm screws
(Black)
37
30mm nails
38
25mm nails
39
10mm Felt nails
Qty.
1
2
2
1
1
1
2
1
2
2
4
23
1
1
1
1
2
1
1
16
2
2
4
4
2
Qty.
3
1
2
1
1
4
5
4
12
4
10
43
24
28
20
25
28
35
12
81
11
22
14
8
27
26
20
18
19
6
1
English SS405
15
7
9
10
28
2
17
3
13
4
21
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rowlinson SS405
Summary of Contents for Rowlinson SS405
- Page 1 6x4 Heritage Shed English SS405 Assembly Instructions Before assembly • We recommend that time is taken to read the instructions before starting assembly, then follow the easy step by step guide. The instruction sheet is only a guide to the assembly.
- Page 2 1. Floor Prepare a level area for the shed to sit. Attach five treated wooden or similar bearers of size 50 x 50 x 1175mm to the floor panel (Not supplied in kit). Position the floor on the prepared area and ensure level. To VALIDATE the guarantee, this item should be erected on 50mm x 50mm treated wooden or similar bearers (These are not supplied with the kit.) Ground contact must be avoided.
- Page 3 5. Securing walls to the floor Ensure the panels are sitting square on the floor. Secure using 10 x 63mm screws, screw through the panel frames and floorboards into the floor frames. It is recommended to drill pilot holes for each screw before assembly.
- Page 4 Important information Rowlinson Heritage buildings come ready painted. To maintain the effective waterproofing of the treatment and to VALIDATE the guarantee, the building must be properly treated with a recognised external wood preserver EVERY TWO YEARS. The building MUST also be erected on pressure treated wooden 50mm x 50mm or similar bearers (These are not supplied in the kit).
