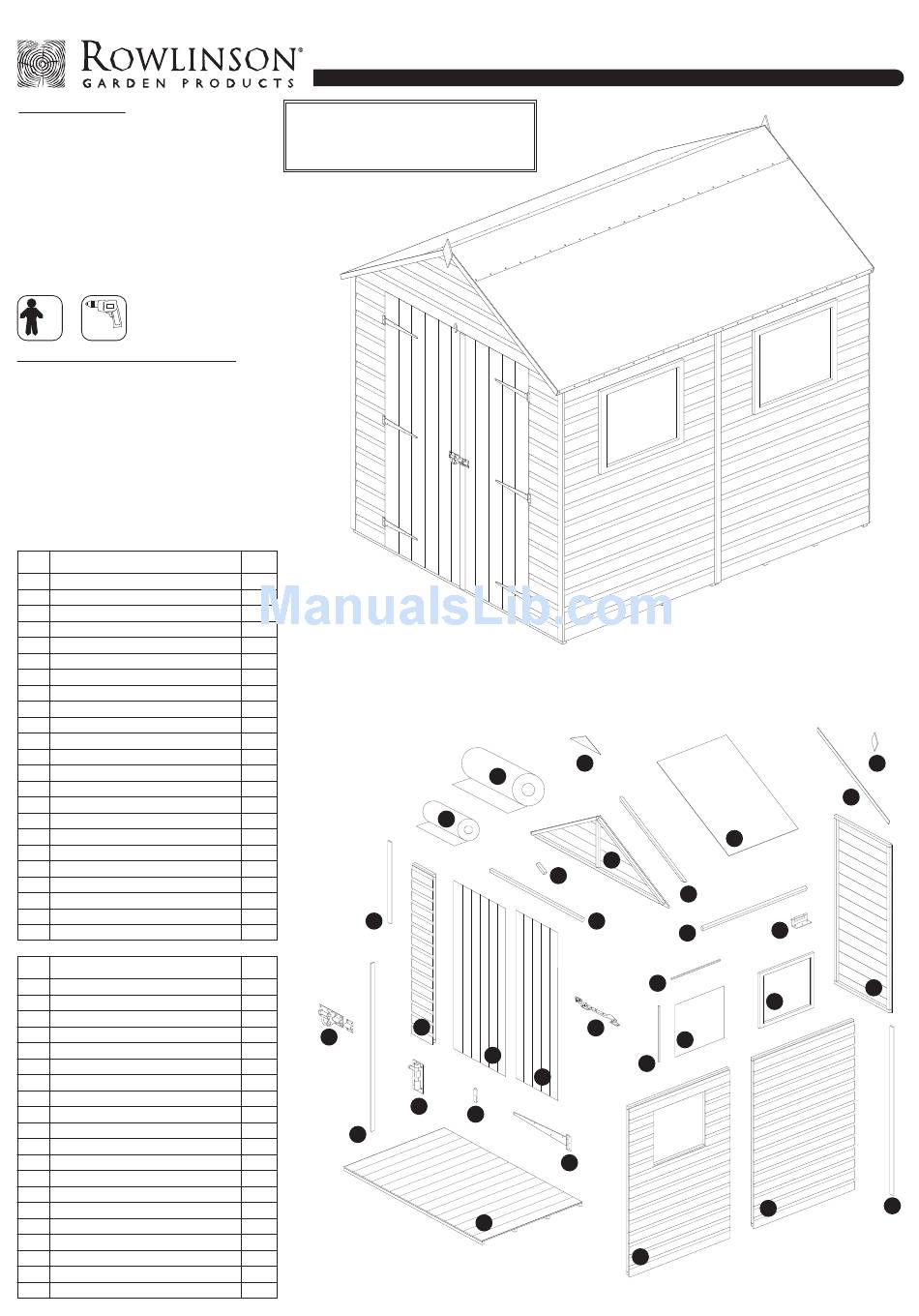

Rowlinson SS197C Assembly Instructions

Before assembly

•
We recommend that time is taken to read the
instructions before starting assembly, then
follow the easy step by step guide.
The instruction sheet is only a guide to
the assembly. Certain items may not be
shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no
less than two people.
•
Never attempt to erect the assembly in
high winds.
•
Drill components where indicated.
x 2
Drill
Recommended tools for assembly
•
Cross head screw driver
•
10mm spanner
•
Hammer
•
Sharp knife
•
Drill
•
3mm diameter drill bit
•
Spirit level
•
Silicon sealant
•
Step ladder
No. Components
1 Floor panel
2 Large plain panel
(Width 1174mm)
3 Small plain panel
(Width 850mm)
4 Window plain panel
5 Front panel
6 Apex panel
7 Door header rail
(29 x 29 x 1200mm)
8 Roof rafter
9 Roof panel
(1140 x 809mm)
10 Felt batten
(29 x 29 x 1213mm)
11 Felt batten block
12 Left door
13 Right door
14 Door rebate coverstrip
(32 x 12 x 1685mm)
15 Roof felt
(5m)
16 Roof ridge felt
(2.5m)
17 Coverstrip
(12 x 40 x 1710mm)
18 Window frame
19 Window perspex
(515x560mm)
20 Window beading
(565mm)
21 Window beading
(500mm)
22 Door coverstrip
(12 x 40 x 830mm)
23 Bargeboards
No. Fixing kit
24 Roof gussets
25 Finial
26 T-hinge (254mm)
27 Turn button
28 Padbolt
29 Towerbolt
30 Storm proof hinges
31 Window Stay
32 50mm coachbolts
33 6mm washers
34 6mm nuts
35 63mm screws
36 50mm screws
37 38mm screws
38 25mm screws
39 22mm screws
40 19mm round head screws
41 30mm nails
42 20mm nails
43 10mm felt nails
2.4 x 1.8 (8' x 6') Premier Shiplap
Modular Shed
Assembly Instructions
RECOMMENDED BASE AREA
A recommended base area of no less
than 1870mm x 2450mm
