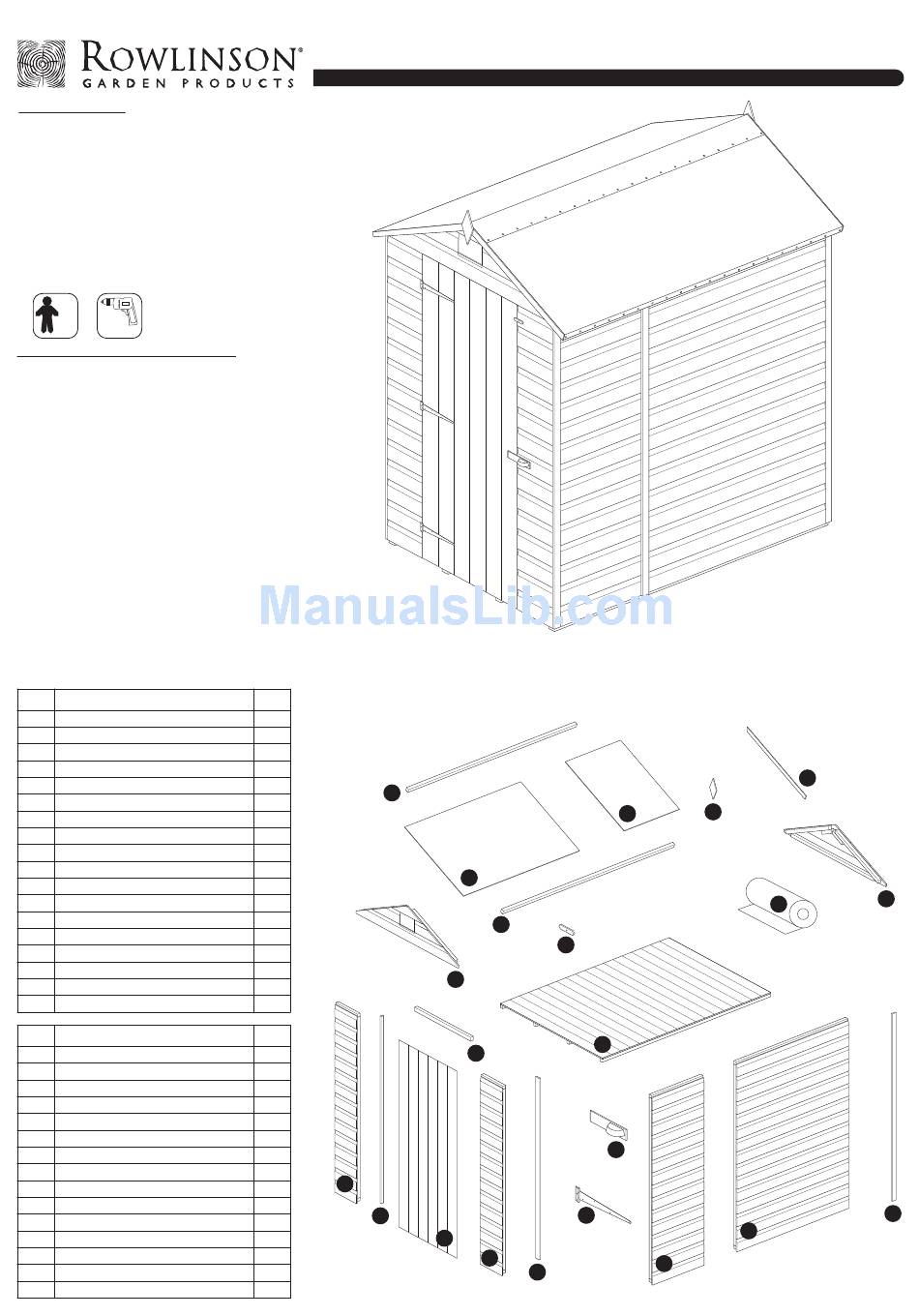

Rowlinson SS289A Assembly Instructions

Before assembly

•
We recommend that time is taken to read the
instructions before starting assembly, then
follow the easy step by step guide.
The instruction sheet is only a guide to
the assembly. Certain items may not be
shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no
less than two people.
•
Never attempt to erect the assembly in
high winds.
•
Drill components where indicated.
x 2
Drill

Recommended tools for assembly

•
Cross head screw driver
•
Hammer
•
Sharp knife
•
Drill
•
3mm diameter drill bit
•
6mm diameter drill bit
•
Spirit level
•
Step ladder
No.

Components

1 Floor
2 Large plain panel
3 Small plain panel
4 Front panel
(Door hinge side)
5 Front panel
(Padlock protector support rail)
6 Door rebate strip
(12 x 40 x 1685mm)
7 Door rebate strip
(12 x 28 x 1685mm)
8 Front apex panel
(with window)
9 Rear apex panel
10 Door header rail
(28 x 28 x 674mm)
11 Roof purlin
(28 x 28 x 1770mm)
12 Large roof panel
13 Small roof panel
14 Felt batten
(28 x 28 x 1800mm)
15 Coverstrips
(12 x 40 x 1710mm)
16 Door
17 Roof felt
(4m)
18 Bargeboards
No.

Fixing Kit

19 Finials
20 T-hinges
21 Turn button
22 Padlock protector kit
23 65mm coach bolts
24 50mm coach bolts
25 6mm washer
26 6mm nut
27 63mm screws
28 50mm screws
29 38mm screws
30 32mm security screws
31 25mm screws
32 30mm nails
33 10mm felt nails
1.8 x 1.2 (6' x 4')
Security Shed
Assembly Instructions
Qty.
1
3
2
1
1
11
1
1
1
1
1
2
2
2
2
6
1
1
4
Qty.
2
3
1
1
2
6
8
8
4
10
28
7
24
21
11
54
80
12
14
21
8
1
10
22
20
16
5
6
English SS289A
19
13
17
2
3
18
9
15
