Assembly

1

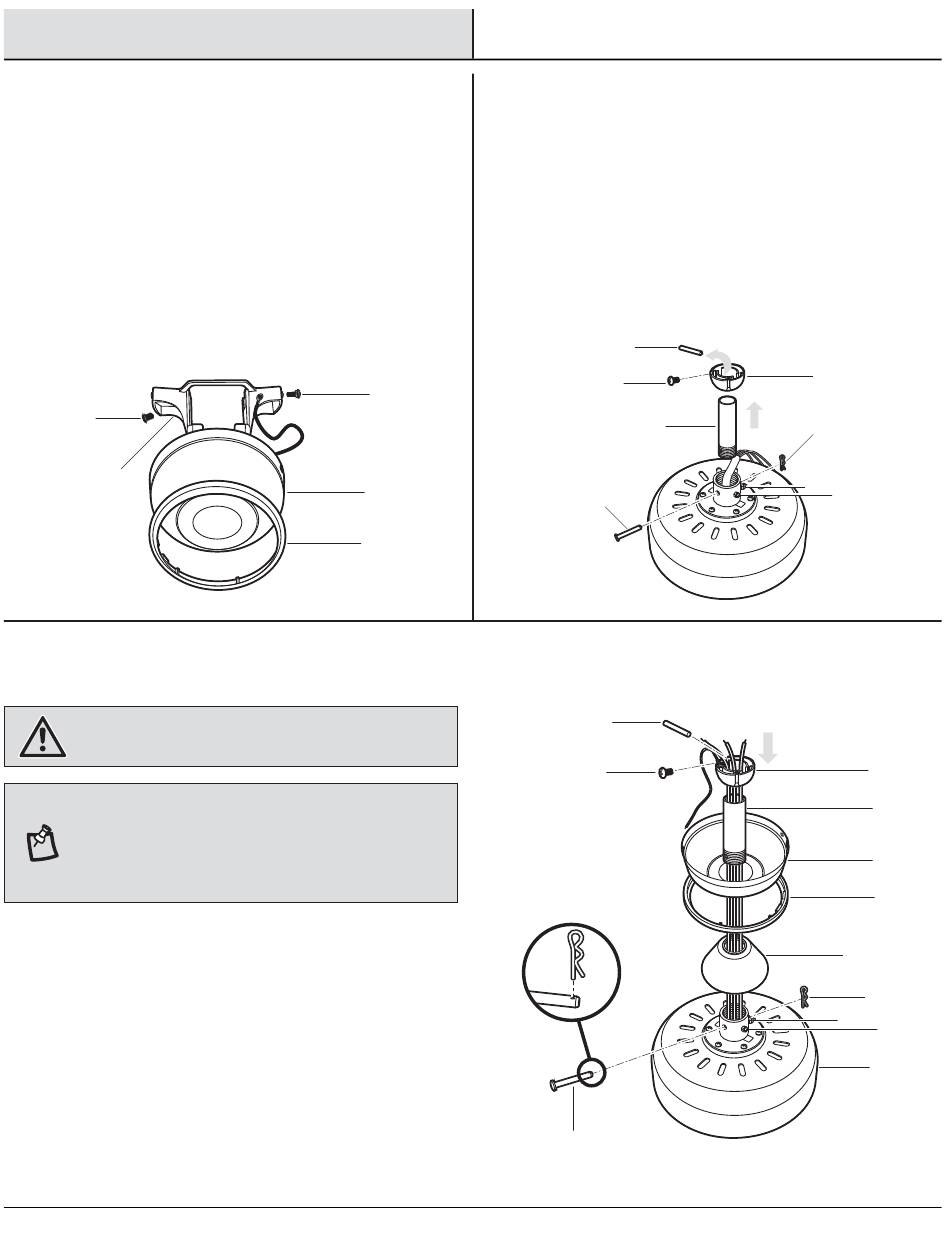

Preparing the canopy
□
Remove the canopy ring (B) from the canopy (C).
□
Remove the two non-slotted canopy mounting screw
with lock washer (BB) from the canopy (C), and
loosen the slotted canopy mounting screw with lock
washer (BB) on the canopy (C).
□
Remove the canopy (C) from the mounting bracket
(A) by turning the canopy (C) counterclockwise.
BB
A
3
Assembling the fan
WARNING:
Failure to properly install the cotter pin (EE)
could result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (NN), lower the hanger
ball (NN) and remove the pin (FF). Remove all three pieces
from the downrod and assemble them onto the new longer
downrod before proceeding to the downrod installation.
□
Carefully feed the motor wires up through the
downrod (OO). Thread the downrod (OO) into the
collar.
□
Align the holes and replace clevis pin (DD) and cotter
pin (EE). Tighten the two collar setscrews (HH).
□
Slip the coupling cover (E), canopy ring (B), and
canopy (C) onto the downrod (OO).
□
Carefully reinstall the hanger ball (NN) onto the
downrod (OO). Being sure that the cross pin (FF) is in
the correct position, the setscrew (GG) is tightened
and wires are not twisted.
2
Preparing the motor
□
Remove the cotter pin (EE) and clevis pin (DD), and
□
Take out the setscrew (GG) located in the hanger ball
BB
C
B
8
loosen the two collar setscrews (HH) from the motor
collar.
(NN), lower the hanger ball (NN) and remove the
cross pin (FF). Remove the hanger ball (NN) from the
hanger ball/downrod assembly (D).
FF
GG
D
DD
FF
GG
DD
NN
EE
HH
HH
NN
OO
C
B
E
EE
HH
HH
F
