Model #56044
UL Model #EF200T(C)-52
USE AND CARE GUIDE

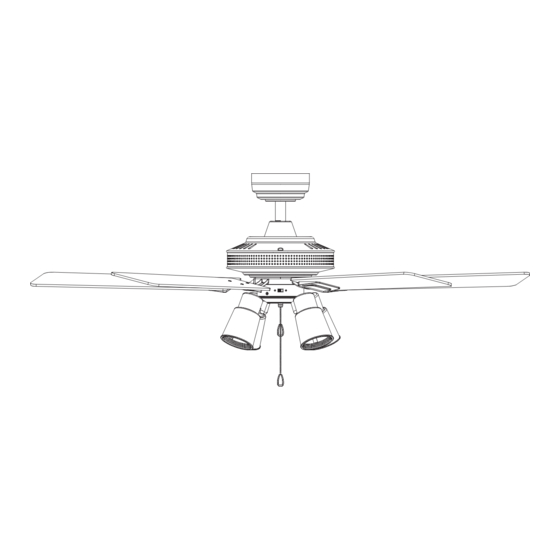

PRATT 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
"Product Overview" section.
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Related Manuals for Home Decorators Collection PRATT 56044
Summary of Contents for Home Decorators Collection PRATT 56044
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................13 Warranty ................3 Care and Cleaning ............. 14 Pre-Installation ..............3 Troubleshooting ..............14 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as To reduce the risk of electric shock, ensure the electricity has been... -
Page 3: Warranty
Warranty The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire extension Blade screws Pull chain extensions...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Fan-motor assembly (inside canopy) Light kit fitter assembly Canopy LED bulb Canopy bottom cover Blade bracket Ball/downrod assembly Blade Coupler cover IMPORTANT: This product and/or components are governed by one or more of the following U.S.
-
Page 6: Installation
Installation MOUNTING OPTIONS NOTE: You may need a longer ball/downrod to maintain WARNING: To reduce the risk of fire, electric shock proper blade clearance when installing on a steep, sloped or personal injury, mount to outlet box marked ceiling. The maximum angle allowable is 20° away from “Acceptable for fan support of 35 lbs. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Preparing for mounting Routing the wires □ □ Remove the canopy bottom cover (C) from the canopy (B) by Route the wires exiting the top of the fan motor assembly (F) turning the bottom cover counterclockwise until it unlocks. through the center of the canopy bottom cover (C). - Page 8 Assembly - Hanging the Fan Attaching the fan to the Hanging the fan electrical box WARNING: When using the standard ball/downrod mounting, WARNING: To reduce the risk of fire, electric shock or personal the tab in the ring at the bottom of the mounting bracket injury, mount to outlet box marked “Acceptable for fan support must rest in the groove of the hanger ball.
- Page 9 Assembly - Hanging the Fan (continued) Making the electrical connection Wrapping the extra wire IMPORTANT: Use the plastic wire connectors (AA) supplied with NOTE: Follow this step ONLY if you did not cut the extra length off your fan. Secure the connectors with electrical tape and ensure from the wires coming from the ceiling fan.
- Page 10 Assembly - Hanging the Fan (continued) Attaching the canopy □ Align the locking slots of the canopy (B) with the two screws (FF) and alignment post (EE) in the mounting bracket (A). □ Push up the canopy (B) and turn clockwise until the alignment post (EE) engages to the round hole and the screws (FF) engage to the key slots.
- Page 11 Assembly - Attaching the Fan Blades Attaching the blade assemblies to the motor □ Fasten the blade bracket (I) to the motor (F) by inserting the allignment post into the slot on the bottom fo the fan-motor assembly (F) and tightening the motor screws (GG) that are pre-assembled to the blade bracket (I) □...
- Page 12 Assembly - Attaching the Light Kit Installing the bulbs WARNING: Allow the spot light to cool completely before removing. CAUTION: Make sure the power is off before attaching or removing the spot light. CAUTION: Over lamping the fan will result in the fan lights shutting down until the proper wattage bulbs are installed.
-
Page 13: Operation
Operation Turn on the power and check the operation of the fan. The pull chain controls the fan speeds as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, 4 pulls - off A. Warm weather The appropriate speed settings for warm or cool weather depends on factors such as the room size, ceiling height, and number of fans. -
Page 14: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 15 Questions, problems, missing parts? Before returning to the store, call Home Depot Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
