USE AND CARE GUIDE

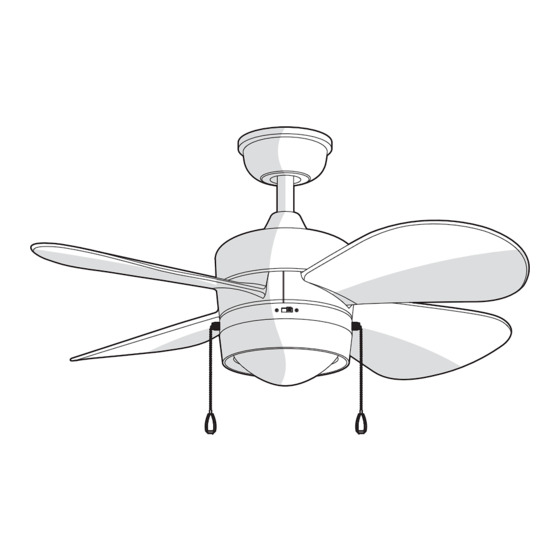

PADGETTE 36 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.
1-800-986-3460
THANK YOU
THANK YOU
Item #1003 236 515
#1003 236 512
Model #YG683AP-BL
#YG683AP-GN
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection PADGETTE
Summary of Contents for Home Decorators Collection PADGETTE
- Page 1 Model #YG683AP-BL #YG683AP-GN USE AND CARE GUIDE PADGETTE 36 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Pull Chain Operating Instructions .......... Safety Information ............Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-installation .............. Troubleshooting ............Specifications ................Tools Required ................. Service Parts ............... Hardware Included .............. -
Page 3: Safety Information
Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning. -
Page 4: Warranty
Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Plastic wire nut Canopy mounting screw with lock washer (preassembled) Blade screw with lock washer and metal washer Clevis pin (preassembled) Cotter pin (preassembled) Cross pin (preassembled) -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Fan motor assembly Canopy ring (preassembled) Blade Canopy Switch housing Hanger ball/downrod assembly 14 watt LED Light kit Coupling cover Plastic shade... -
Page 7: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS NOTE: WARNING: You may need a longer downrod to maintain proper To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°... -
Page 8: Assembly
Assembly Preparing the canopy Preparing the motor □ □ Remove the cotter pin (EE) and clevis pin (DD), and Remove the canopy ring (B) from the canopy (C). loosen the two collar setscrews (HH) from the motor □ collar. Remove the two non-slotted canopy mounting screw with lock washer (BB) from the canopy (C), and □... -
Page 9: Hanging The Fan
Assembly — Hanging the Fan Hanging the fan to the Installing the mounting bracket mounting bracket to the electrical box WARNING: To reduce the risk of fire, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball/downrod assembly (D). - Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground Black White conductor WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
- Page 11 Assembly — Hanging the Fan (continued) Installing the canopy WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball/downrod assembly (D) before attaching the canopy (C) to the mounting bracket (A) by turning the canopy (C) until it drops into place. WARNING: The locking slots of the canopy (C) are provided only as an aid to mounting.
-
Page 12: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Fastening the blade Removing the rubber assemblies to the motor packing mounts □ The fan motor assembly (F) is shipped with rubber WARNING: packing mounts (PP) to prevent movement during To reduce the risk of personal injury, do not transportation. -
Page 13: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the switch housing Attaching the LED light kit to the mounting ring and glass shade CAUTION: Before starting installation, disconnect the CAUTION: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse power by turning off the circuit breaker or removing the fuse at the fuse box. -
Page 14: Operation
Operation PULL CHAIN OPERATING INSTRUCTIONS PULL CHAIN OPERATING INSTRUCTIONS Install two pull chains and fobs (KK) onto the pull chains located in the switch housing (H). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off. -
Page 15: Care And Cleaning
Care and Cleaning Do Do Do not Do not □ Check the support connections, brackets, and blade □ Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some connections may become loose over time. - Page 16 Troubleshooting (continued) Problem Problem Solution Solution □ Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
-
Page 17: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Plastic wire nut Canopy ring (preassembled) Canopy mounting screw with lock washer (preassembled) Canopy Blade screw with lock washer and metal washer Hanger ball/downrod assembly Clevis pin (preassembled) Coupling cover Cotter pin (preassembled) Fan motor assembly... - Page 18 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. YG683001-A...
