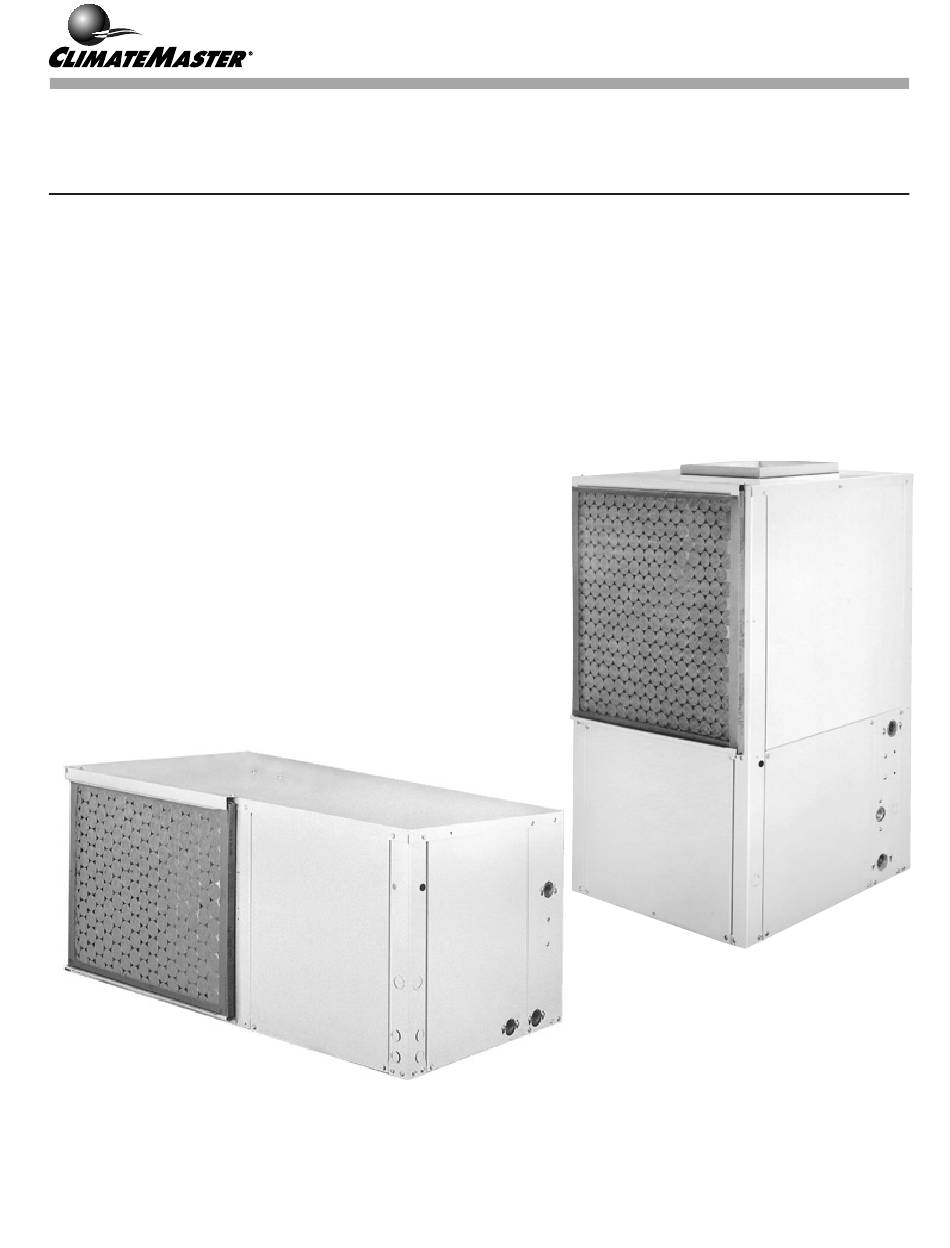

HS/HL/HP and VS/VL/VP Series
Horizontal & Vertical Series
Water Source Heat Pumps
Installation, Operation, &
Maintenance Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ClimateMaster HS Series

  • Page 1 HS/HL/HP and VS/VL/VP Series Horizontal & Vertical Series Water Source Heat Pumps Installation, Operation, & Maintenance Instructions...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page General Information Inspection Introduction Storage Unit Protection Pre-Installation Location and Access-Horizontal Units Location and Access-Vertical Units Installation Installation of Supply and Return Piping Condensate Piping Hanging and Mounting a Horizontal Unit Sound Attenuation for Horizontal Units Installing a Vertical Unit Sound Attenuation for Vertical Units Electrical Wiring...
  • Page 3: General Information

    15 days of receipt of shipment. Note: It is the any of the system components. Remove any dirt found on responsibility of the purchaser to file all necessary these components. claims with the carrier. Notify the ClimateMaster Traffic Department of all damage within fifteen (15) Pre-Installation days of shipment.
  • Page 4: Location And Access-Horizontal Units

    Horizontal Units Location and Access Horizontal Units are typically installed above a false To avoid the release of refrigerant into the ceiling or in a ceiling plenum. Refer to Figure 1 for an atmosphere, the refrigerant circuit of this unit MUST illustration of a typical installation.
  • Page 5: Location And Access-Vertical Units

    panels, discharge collars and all electrical with adequate clearance to allow maintenance and connections. servicing. Conform to the following guidelines when selecting unit location: 3. Provide a duct slot for filter replacement, if a return duct is used. 1. Provide adequate clearance for filter replacement and drain pan cleaning.
  • Page 6: Installation

    Installation of Supply and Return Piping Optional pressure-rated hose assemblies designed CAUTION specifically for use with ClimateMaster units are available. Similar hoses can be obtained from alternate Piping must comply with all applicable codes. suppliers. Supply and return hoses are fitted with swivel- joint fittings at one end to prevent kinking during Follow these piping guidelines.
  • Page 7: Hanging And Mounting A Horizontal Unit

    Figure 5 illustrates a typical trap and vent used with To avoid condensate overflow in Horizontal Units: HS/HL/HP & VS/VL/VP Heat Pumps. Design the Horizontal Units sizes 006-030 must be hung level to length of the trap (water-seal) based upon the amount of ensure proper condensate drainage.
  • Page 8: Sound Attenuation For Horizontal Units

    For additional wiring information pertinent to units All field installed wiring, including electrical ground, supplied with a ClimateMaster CMC-2000 Series Control must comply with the National Electrical Code (NEC) as Board, refer to the CMC-2000 Series Installation, well as all applicable local codes.
  • Page 9: Operating Limits

    Operating Limits 4. Determination of operating limits is dependent primarily upon three factors: 1) return air Environment - This unit is designed for indoor temperature, 2) water temperature and 3) ambient installation ONLY. temperature. When any one of these factors is at Power Supply - A voltage variation of +/- 10% of minimum or maximum levels, the other two factors nameplate utilization voltage is acceptable.
  • Page 10: System Checkout

    7. Refill the system and add trisodium phosphate in a Horizontal and Vertical units. Refill the system and proportion of approximately one pound per 150 bleed off all air. gallons of water. Reset the boiler to raise the loop Test the system pH with litmus paper. The system temperature to about 100°F.
  • Page 11: Unit Start-Up

    UNIT START-UP Use the procedure below to initiate proper unit start-up: If the unit has an optional MCO thermostat, set the WARNING temperature indicator to the highest setting and set When the disconnect switch is closed, high voltage is the selector switch to HEAT. The fan and the present in some areas of the electrical panel.
  • Page 12 Page 12...
  • Page 13: Warranty

    Page 13...
  • Page 14 Page 14...
  • Page 15 Page 15...
  • Page 16: Maintenance Bc

    Part #: 69197301 ClimateMaster works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice and may not be as described herein. Please contact ClimateMaster’s Customer Service Department at 1-405-745-6000 for specific information on the current design and specifications.
