YOODA ARTISTIC 5R Quick Start Manual

www.sukcesgroup.pl
In order to fully explore available functions of ARTISTIC series please take a moment and read this manual before using the device.
ARTISTIC transmitters are compatible with all YOODA brand devices.

1. General information

Radio receiver range is a variable value and can differ from declared values depending on conditions in which device
operates. Possible sources of changes in range are building construction, interference caused by other radio transmitters
etc.

2. Detailed description

LCD display
UP button
CHANNEL -
DOWN button
ARTISTIC_1R | ARTISTIC_5R | ARTISTIC_15R
15-channel transmitter
(front)
1. Control:
can control single motor, or a group
of up to 20 motors on each channel
2. Range:
200 meters outdoor,
35 meters indoor
3. Battery:
1 x CR2430
4. Power supply:
3 V
5. Dimensions:
130 x 44 x 10 mm
6. Transmitting power:
10 mW
7. Operating temperature:
from 0°C to 50°C
8. Protection degree:
IP 30

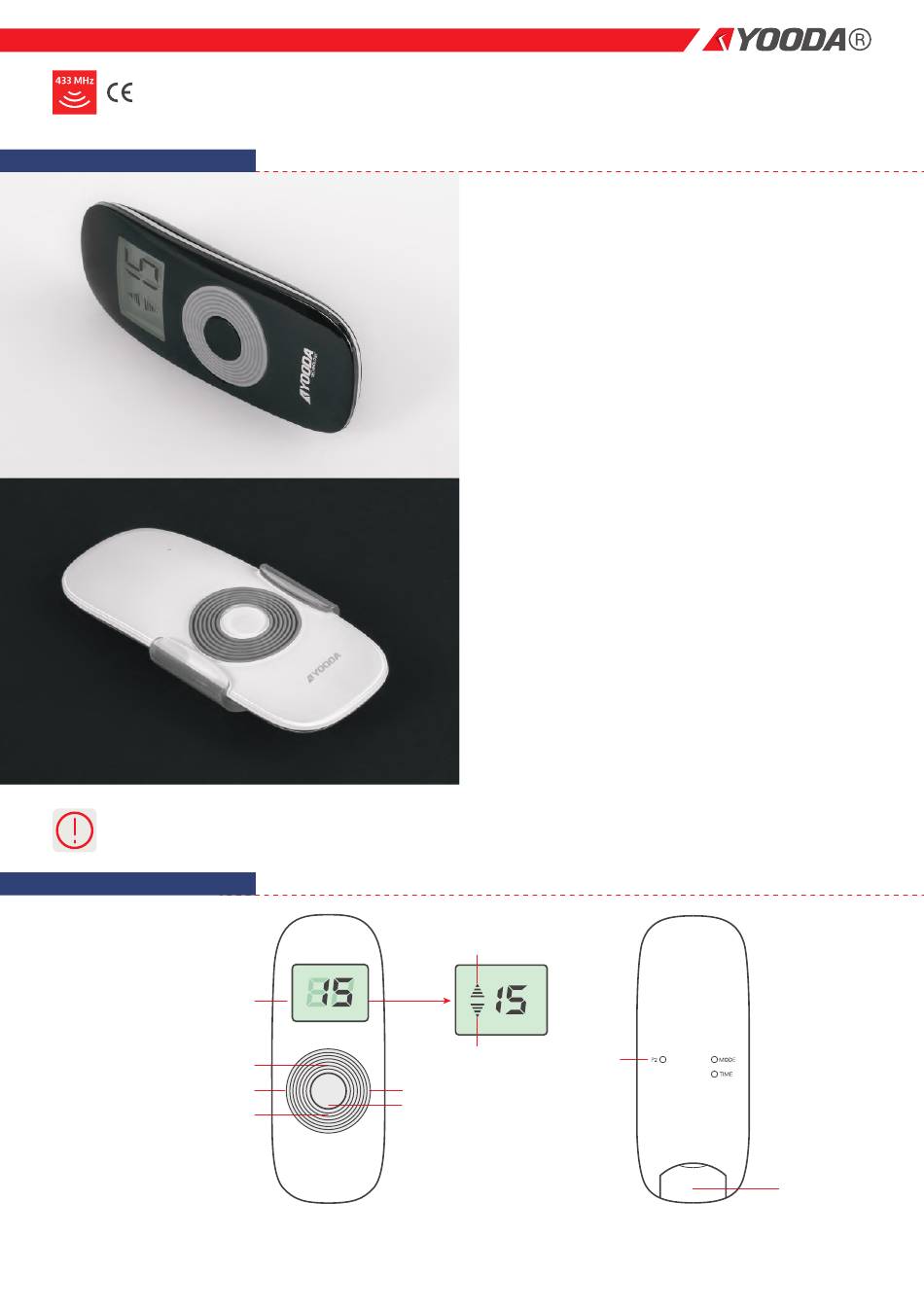

Illustrations (from the top):
Fig. 1. 15-channel ARTISTIC remote control with display, black (ARTISTIC_15R_B)
Fig. 2. Single-channel ARTISTIC remote control, white (ARTISTIC_1R)
UP
DOWN
programming button
CHANNEL +
STOP button
1
P2
15-channel transmitter
(back)
bateria
