YOODA MELODY Series Quick Start Manual

MELODY_1R | MELODY_5R | MELODY_9R | MELODY_15R
www.sukcesgroup.pl
In order to fully explore available functions of MELODY series please take a moment and read this manual before using the device.
MELODY transmitters are compatible with all YOODA brand devices.

General information

Radio receiver range is a variable value and can differ from declared values depending on conditions in which device
operates. Possible sources of changes in range are building construction, interference caused by other radio transmitters
etc.

Detailed description

LCD display
UP button
PREVIOUS CHANNEL button
DOWN button
NEXT CHANNEL button
STOP button
9- or 15-channel transmitter
(front)
1. Control:
can control single motor, or a group
of up to 20 motors on each channel
2. Range:
200 meters outdoor,
35 meters indoor
3. Battery:
1 x CR2430
4. Power supply:
3 V
5. Dimensions:
90 x 40 x 10 mm
6. Transmitting power:
10 mW
7. Operating temperature:
from 0°C to 50°C
8. Protection degree:
IP 30
Illustrations (from the top):

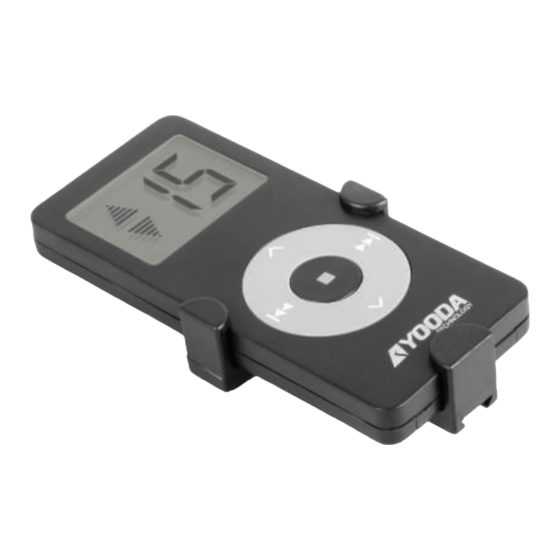

Fig. 1. 15-channel MELODY remote control with display, black
Fig. 2. Single-channel MELODY remote control, white
next
channel
previous
P2
channel
programming button
9- or 15-channel transmitter
battery cover
(back)
