1. General information

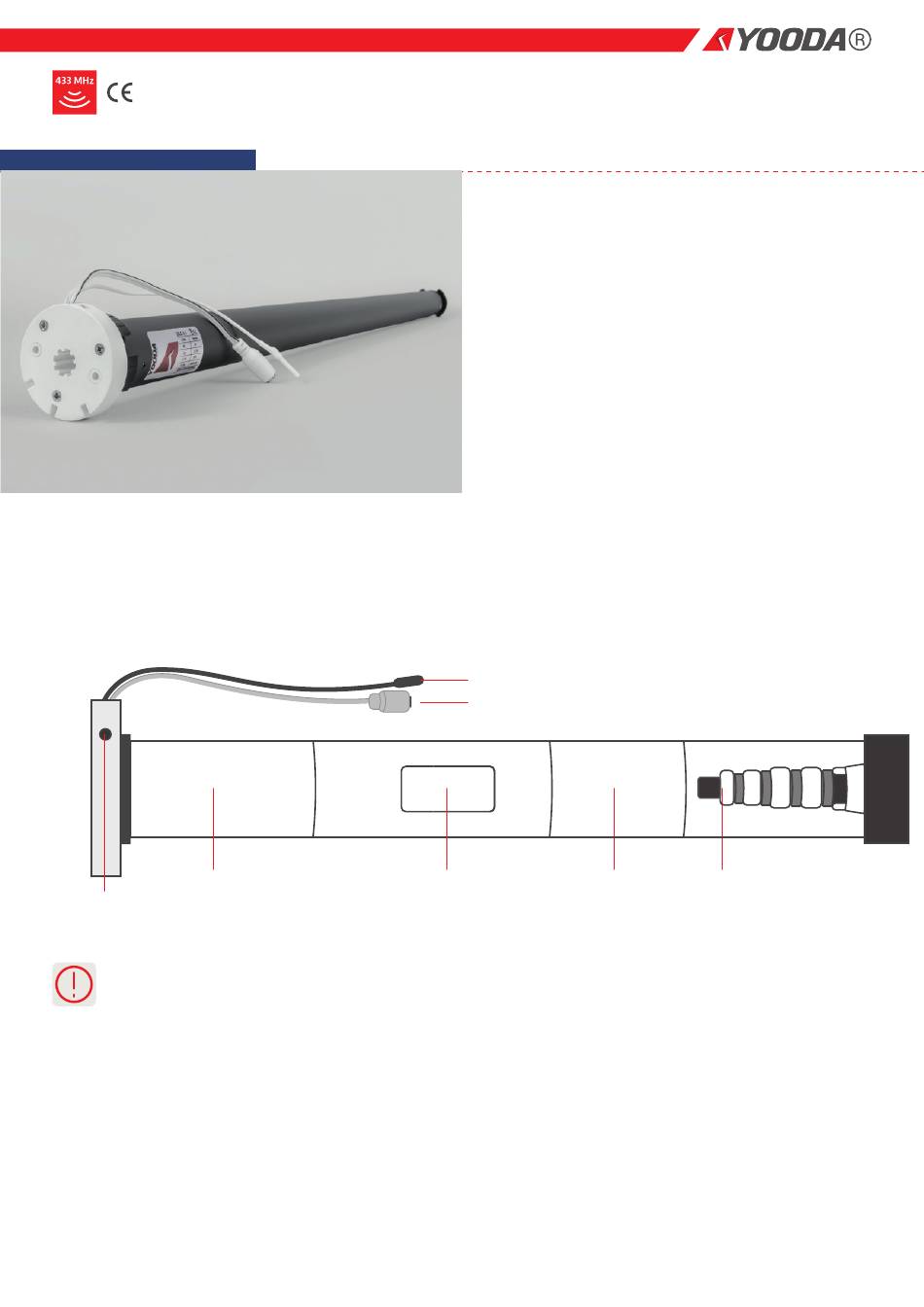

28 LEQ motor with radio receiver and with battery
battery
programming button
Programming button functions:
1. Pressing the programming button briefly for approximately 1 second controls the drive step by step.
2. Press the programming button for 2 seconds to enter the first transmitter programming mode.
3. Pressing the programming button for 6 seconds changes work motor direction.
4. Pressing the programming button for 11 seconds deletes the motor memory and restores the factory settings.
28LEQ SERIES TUBULAR MOTOR
radio receiver,
limit switches system
1
LE type motors equipped with a radio receiver are wireless
and can be controlled with a remote. They are designed for
automation of blinds. They have electronic limit switches
which are programmed by the remote control. The built-in
rechargeable battery allows you to mount the drive without
having to power it. LE type motores are compatible with all
YOODA transmitters.
Radio receiver memory:
up to 20 transmitters
Power supply:
12 V DC
Operating temperature:
from -5°C to 50°C
Protection degree:
IP 40
Load:
up to 6 kg
antenna
Charging socket
motor
gear
Advertisement
Table of Contents
Related Manuals for YOODA 28LEQ Series
Summary of Contents for YOODA 28LEQ Series
- Page 1 28LEQ SERIES TUBULAR MOTOR www.sukcesgroup.pl Non-compliance with the specification might cause risk for life or health and can determine proper work of the blind. We strongly recommend to comply with the specification. 1. General information LE type motors equipped with a radio receiver are wireless and can be controlled with a remote.
- Page 2 2. Safety measures Before installing or using motor please read the following instruction. The installer must comply with the standards and regulations in force in the country where the appliance will be installed and provide information to users about the conditions and maintenance of the device.
- Page 3 Connect the motor During charging, the LED diode When the battery is fully charged, to the power supply. on the power supply light is red. the LED diode will turn to green. 5. Range Radio receiver range is a variable value and can differ from declared values depending on conditions in which device operates.
- Page 4 8. Programming limit positions To set the upper and lower limit position press the programming button P2 during the motor movement, it causes the work displacement. Then you can precisely set the limit positions. Pressing the P2 button again motor will run continuously. Press Blind will make up/down Press...
- Page 5 11. Removing third limit position Favourite position has been removed. Press Blind will make up/down Press Blind will make up/down Press Blind will make up/down programming movement. Motor will STOP button. movement. Motor will STOP button. movement. Motor will make button P2.
- Page 6 15. Activating impulse mode 1. Longer than 5 seconds pause between series of button clicks during programming will cause device to switch off from programming mode without saving any changes. 2. To reverse this procedure please repeat the instruction. Blind will make When motor is in Press programming Blind will make up/down...
