In order to fully explore available functions of SMART TOUCH 2 system please take a moment and read this manual before using the device. SMART
TOUCH 2 system is compatible with all YOODA brand devices.

1. General information

Radio receiver range is a variable value and can differ from declared values depending on conditions in which device
operates. Possible sources of changes in range are building construction, interference caused by other radio transmitters
etc.
System SMART TOUCH 2
1. Range:
up to 35 meters
2. Battery:
1 x CR2430
3. Power supply:
3 V
4. Dimensions of the transmitter:
40 x 65 x 17 mm
6. Transmitting power:
10 mW
7. Operating temperature:
from -20°C to 50°C
8. Protection degree:
IP 55
9. Possibility to program 3 work modes:
a) stop the work motor,
b) stop the work motor and reverse one turn
c) stop and maximum motor reverse to the upper end position
From the top:

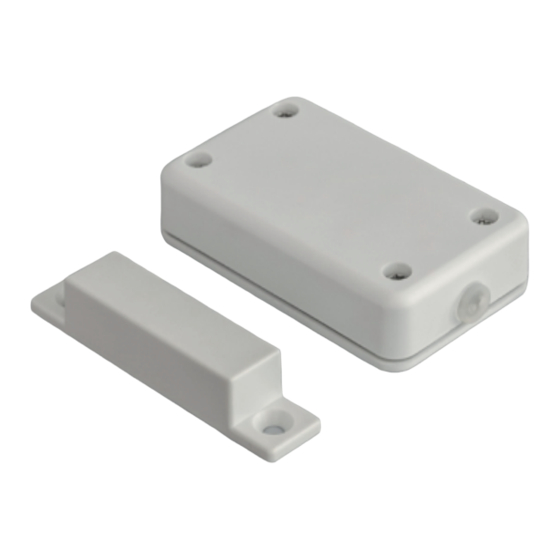

SMART TOUCH 2 transmitter system
Seal SMART TOUCH 2 system
Finish elements of the seal for SMART TOUCH 2 system
Transition strip with touch sensor for SMART TOUCH 2 system
