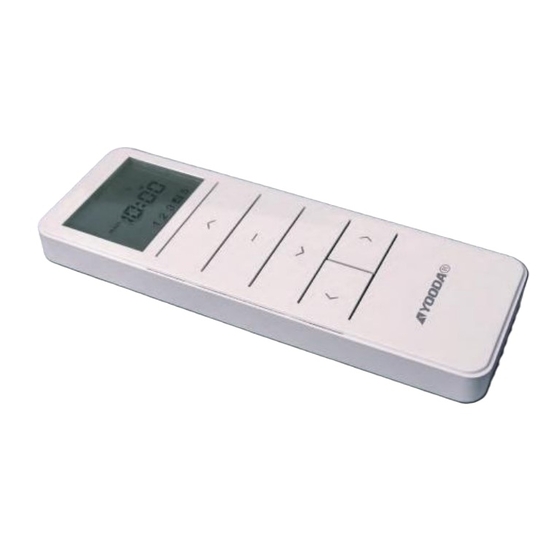

MAGNETIC_PRO 1RT, 5RT YSH
To use the technical capability of MAGNETIC ECO YSH transmitters optimally, read the following instructions carefully.
MAGNETIC PRO YSH transmittersare compatible with all devices of YOODA SMART HOME system.
www.sukcesgroup.pl
MAGNETIC PRO YSH transmitters is control dedicated to bidirectional communication.
1. Technical data
MAGNETIC PRO 5-channel remote control with a display and timer,
white (MAGNETIC PRO_5RT YSH)
The range given by the manufacturer is a variable value, depending on the conditions in the environment in which the device works.
Factors such as building structure, signal interference from other devices, etc. affect range.
2. Description of the device
day of
the week
operation
mode
time
selected channel
Display
of 5-channel transmitter
with timer
Display
of 1-channel transmitter with timer
low battery message
minutes
up
down
CHANNEL - button (P1 -)
1-channel and 5-channel transmitter
with a timer (front)
1. Control:
possibility to control 1 motor or a group of up to 20 motors
on each channel
2. Range:
up to 200 meters in open area,
up to 35 meters indoors
3. Battery:
CR2450
4. Power supply:
3 V
5. Dimensions:
130 x 45 x 12 mm
6. Signal power:
10 mW
7. Operation temperature:
from 0°C to 50°C
8. Safety degree:
IP 30
LCD display
UP button
STOP button
DOWN button
CHANNEL + button (P1 +)
P2 programming button
Operation mode button
1-channel and 5-channel transmitter
1
Time adjusting
button
with a timer (back)
Advertisement
Table of Contents
Related Manuals for YOODA MAGNETIC PRO 1RT YSH
Summary of Contents for YOODA MAGNETIC PRO 1RT YSH
- Page 1 MAGNETIC_PRO 1RT, 5RT YSH To use the technical capability of MAGNETIC ECO YSH transmitters optimally, read the following instructions carefully. MAGNETIC PRO YSH transmittersare compatible with all devices of YOODA SMART HOME system. www.sukcesgroup.pl MAGNETIC PRO YSH transmitters is control dedicated to bidirectional communication.
- Page 2 1. Move the back housing of the remote control down to access the battery and the programming button. 2. Activate the group channel for the transmitter to control all of the receivers. The group channel is on, if all channels are highlighted.
- Page 3 6. Time setting for automatic lifting and lowering 1. Time adjusting for automatic lifting and lowering should be performed in automatic mode only. 2. Time setting of automatic lifting and lowering should be performed separately on each channel. 3. A break between succesive button presses longer than 60 seconds, will automatically cause the exit from changing mode. 4.
- Page 4 9. Programming the first transmitter for motors of EV/S type 1. Programming of a transmitter depends on the type of receiver. While programming you should abide by the manual of the device, that the transmitter is supposed to control. 2. A break between succesive button presses longer than 6 seconds, will automatically cause the exit from programming mode without saving the changes.
