OSP Home Furnishings KH30 Assembly Instructions

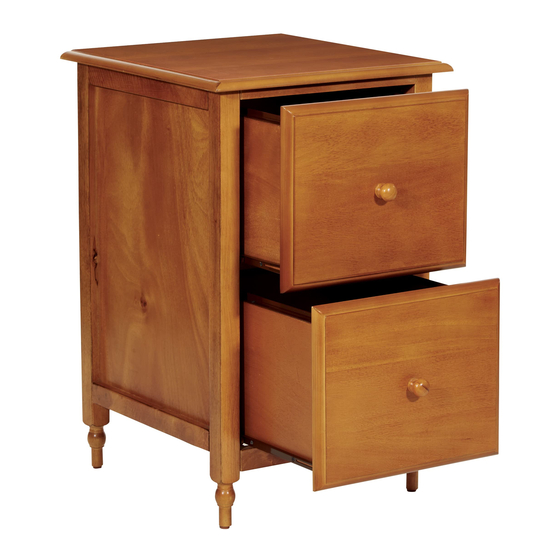

Knob hill file cabinet

September, 2019

KH30

KNOB HILL FILE CABINET

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when

assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or

information on other products, please visit our website: www.officestar.net or call or write us.

Table of Contents

Need help?

Do you have a question about the KH30 and is the answer not in the manual?

Page 1 September, 2019 KH30 KNOB HILL FILE CABINET Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
Page 3 PARTS (A) Top (1 PC) (B) Left Side Panel (1 PC) (C) Right Side Panel (1 PC) (D) Bottom Frame (2 PCS) (E) Back Panel (1 PC) (F) Drawer Front (2 PCS) (G) Drawer Bottom (2 PCS) (H) Left Drawer Side (2 PCS) (I) Right Drawer Side (2 PCS) (J) Drawer Back (2 PCS)
Page 4 HARDWARE LIST DRAWING DESCRIPTION QUANTITY Screw 8 PCS Screw 24 PCS Screw 2 PCS Bolt 8 PCS Knob 2 PCS L Bracket 2 PCS Allen Wrench 1 PC Phillips Screwdriver also needed for assembly (not provided). STEP 1 FULLY TIGHTEN ALL SCREWS USING PHILLIPS SCREW DRIVER (NOT PROVIDED).
Page 5 STEP 2 TURN TO THE UPRIGHT POSITION, APPLY FIRM PRESSURE TO ALIGN & FULLY TIGHTEN BOLTS (4) USING ALLEN WRENCH (7). STEP 3 FULLY TIGHTEN ALL SCREWS (1) USING PHILLIPS SCREW DRIVER (NOT PROVIDED).
