Depending on a required protection level of the alarm system in the installation place, the PSU efficiency and the
battery charging current should be set as follows:
* Grade 1, 2 - standby time 12h
** General use – if the PSU is not mounted in an installation complaint with the EN-50131 standard, the acceptable
current efficiency amounts to:
Total current of the receivers + battery charging current is max. 1A.
In case of power decay, a battery back-up is activated immediately. The PSU is housed in a metal enclosure with
battery space for a 7Ah/12V battery. It is fitted with micro switches indicating unwanted door opening (front panel).
The power supply is pre-configured for use in alarm systems (stage 1 and 2) in accordance
with the PN-EN 50131-6 standard.
Changes to parameter settings (jumper configuration, output voltage adjustment, etc.) may
cause the power supply unit to be no longer compliant with the PN-EN 50131-6 standard for alarm
systems.

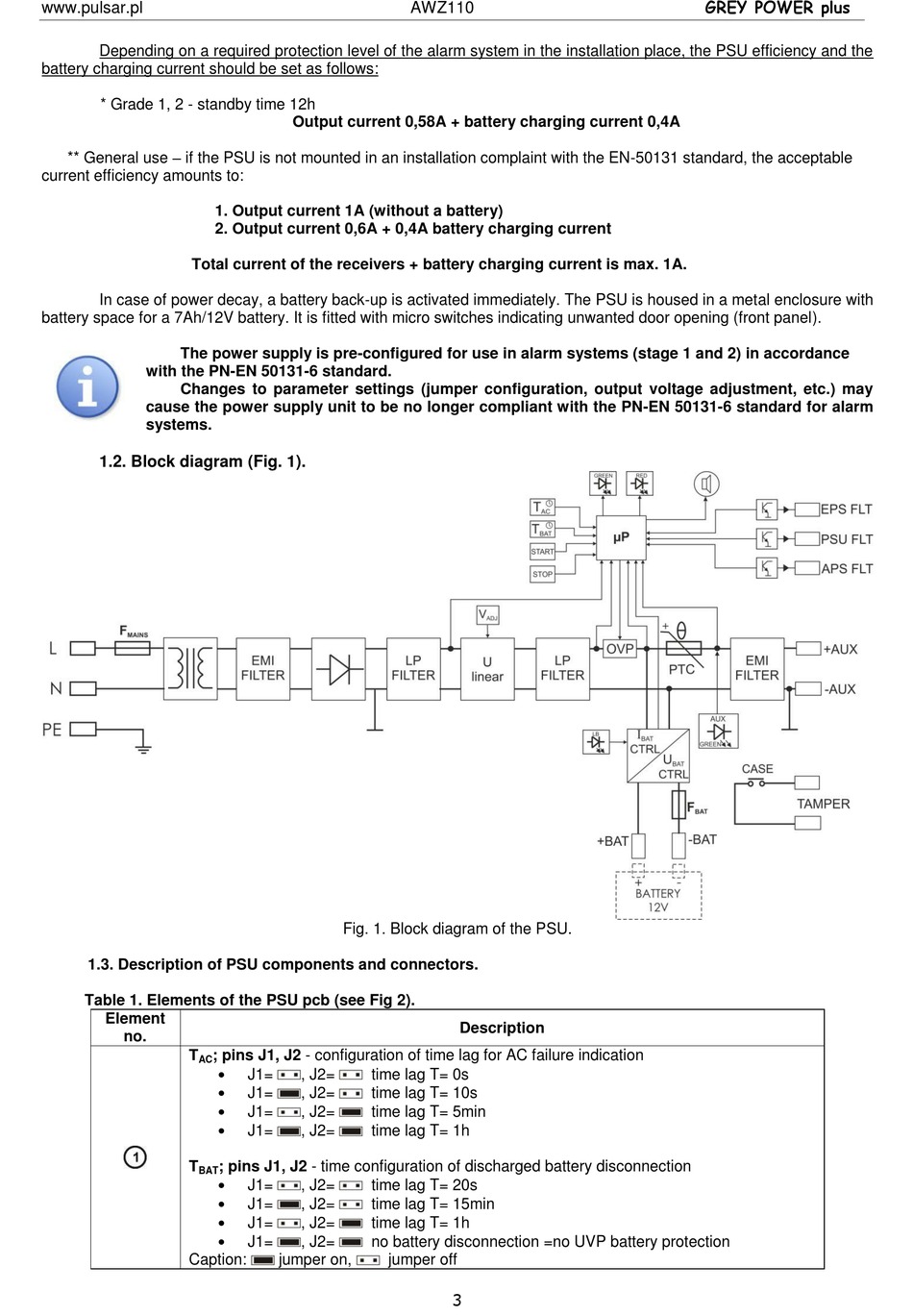

1.2. Block diagram (Fig. 1).

1.3. Description of PSU components and connectors.

Table 1. Elements of the PSU pcb (see Fig 2).
Element
no.
T ; pins J1, J2 - configuration of time lag for AC failure indication
AC
T
BAT
Caption:
Output current 0,58A + battery charging current 0,4A
1. Output current 1A (without a battery)
2. Output current 0,6A + 0,4A battery charging current
Fig. 1. Block diagram of the PSU.

J1= , J2= time lag T= 0s

J1= , J2= time lag T= 10s

J1= , J2= time lag T= 5min

J1= , J2= time lag T= 1h
; pins J1, J2 - time configuration of discharged battery disconnection

J1= , J2= time lag T= 20s

J1= , J2= time lag T= 15min

J1= , J2= time lag T= 1h

J1= , J2= no battery disconnection =no UVP battery protection
jumper on,
AWZ110
Description
jumper off
3
