Pulsar AWZ 100 Manual

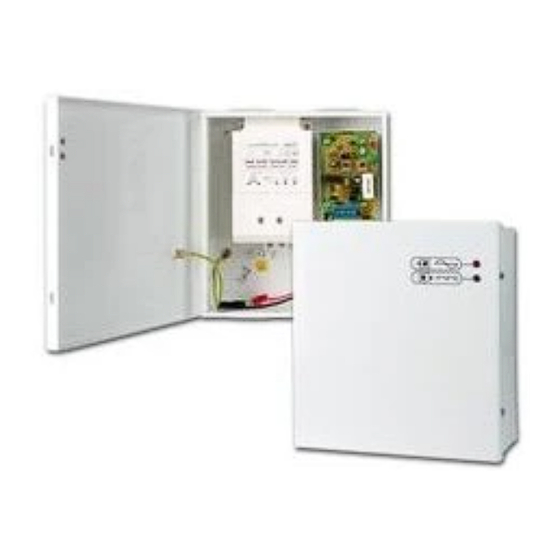

Linear, buffer power supply unit awz 13,8v / 1a / 1,2ah/l
Hide thumbs Also See for AWZ 100:
Table of Contents

Advertisement

Quick Links

Download this manual
AWZ 100
v.2.4
AWZ 13,8V/1A/1,2Ah/L
Linear, Buffer Power Supply Unit
EN**
Edition: 7 from 15.05.2014
Supercedes the edition: 6 from 13.02.2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWZ 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Pulsar AWZ 100

Summary of Contents for Pulsar AWZ 100

  • Page 1 AWZ 100 v.2.4 AWZ 13,8V/1A/1,2Ah/L Linear, Buffer Power Supply Unit EN** Edition: 7 from 15.05.2014 Supercedes the edition: 6 from 13.02.2014...

  • Page 2: Table Of Contents

    GREY POWER www.pulsar.pl AWZ100 Features:  13,8VDC/1A uninterruptible supply  LED indication  fitting battery: 1,2Ah/12V  protections:  mains supply 230VAC  SCP short-circuit  linear voltage regulator  OLP overload  battery over-discharge protection (UVP)  OHP overheat ...

  • Page 3: Block Diagram

    GREY POWER www.pulsar.pl AWZ100 1.2 Block diagram (Fig. 1). Fig. 1. Block diagram of the PSU. 1.3 Description of PSU components and connectors. Table 1. Elements of the PSU pcb (see Fig. 2). Element no. Description Connector: AC power supply input – factory setting fuse in the battery circuit –...

  • Page 4: Specifications

    GREY POWER www.pulsar.pl AWZ100 Table 2. Elements of the PSU (see Fig. 3.) Element no. Description Isolation transformer Pcb of the PSU (Tab. 1, Fig. 2) TAMPER – microswitch (contacts) of antisabotage protection (NC) fuse in the battery circuit (230V/AC)
  • Page 5 GREY POWER www.pulsar.pl AWZ100 required) 110% ÷ 150% (@65 ºC ÷25ºC) of PSU power - limitation with Overload protection OLP the PTC resettable fuse, manual restart (the fault requires disconnection of the DC output circuit) Battery circuit protection SCP and reverse...

  • Page 6: Installation

    GREY POWER www.pulsar.pl AWZ100 2. Installation 2.1 Requirements The buffer PSU is to be mounted by a qualified installer, holding relevant permits and licenses (applicable and required for a given country) for 230V/AC and low-voltage installations. The unit should be mounted in confined spaces, in accordance with the 2nd environmental class, with normal relative humidity (RH=90% maximum, without condensing) and temperature from -10°C to +40°C.

  • Page 7: Operating Status Indication

    GREY POWER www.pulsar.pl AWZ100 3. Operating status indication. 3.1 LED indication The PSU is equipped with two diodes in the front panel. RED LED:  on – the PSU is supplied with 230V AC  off – no 230V AC supply GREEN LED: ...
  • Page 8 GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a five-years warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material...
