Pulsar AWZ101 Quick Start Manual

Psu-b-13,8v/l-1a/1/el-tr-7ah/mc linear, buffer type power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PSU-B-13,8V/L-1A/1/EL-TR-7Ah/MC
AWZ101
v.1.0
Linear, buffer type power supply.
EN
Release: 1, dated July 22, 2010
Suppressed release: -----

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWZ101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar AWZ101

Summary of Contents for Pulsar AWZ101

  • Page 1 PSU-B-13,8V/L-1A/1/EL-TR-7Ah/MC AWZ101 v.1.0 Linear, buffer type power supply. Release: 1, dated July 22, 2010 Suppressed release: -----...

  • Page 2: Table Of Contents

    The power-supply has got a metal casing (RAL 9003 color) with a space for 7Ah/12V battery. The casing features a microswitch indicating door (front) opening. Caution! Using AWZ101 Power Supply for CCTV, KD, SSiW or other similar applications demands using the MZN1 overvoltage module in the output DC stage of Power Supply. 1.2 Block diagram.

  • Page 3: Technical Parameters

    1.3 Technical parameters. Power supply voltage 230V AC, 50 Hz (-15%/+10%) Transformer TR 30 VA Output voltage Uout *12.8 V ÷ 13.8 V DC 13.8 V DC – rated 13.3 V DC @ 1A Output current Iout Imax – 1A (const.) Power 18 W of supply power –...

  • Page 4: Power Supply Elements Description

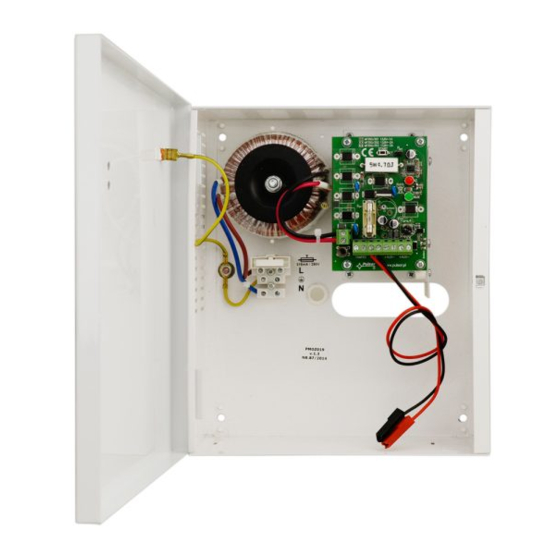

    1.4 Power supply elements description. Fig. 3. General view of the power pack.

  • Page 5: Installation

    Element no. (fig. 3) ~AC~ - joint - fuse in transformer circuit - voltage adjustment Red diode - optical signalling Green diode - optical signalling Outputs - joint (Tab. 3) Battery outputs 230 – 0V - AC supply connectors - transformer primary circuit fuse [10] - joint (with yellow-green PE protective conductor) Tab.2 Description of designations from the figure 3.

  • Page 6: Handling And Operation

    Connect the leads of the consumers to joints OUT + and - of the joint box on the power pack board [6]. (Optionally connect the MZN1 module between +OUT- and load). Activate the 230 V AC power supply and insert the power network fuse protecting the transformer primary circuit [9].

  • Page 7: Maintenance

    4. Maintenance. All the maintenance duties may be performed following disconnection of the power pack from the power grid. The power pack does not require any specific maintenance procedures, however, in the case of significant level of dust, its interior should be cleaned with the compressed air. When replacing the fuse, use only substitutes in conformity to originals.
  • Page 8 GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (manufacturer) grants a two-year quality warranty for the equipment, starting from the date of purchase placed on the purchase order. 2. Should such purchase order be missing when the claim is submitted, the three-year guarantee period is counted from the date of the manufacturing of the device.
