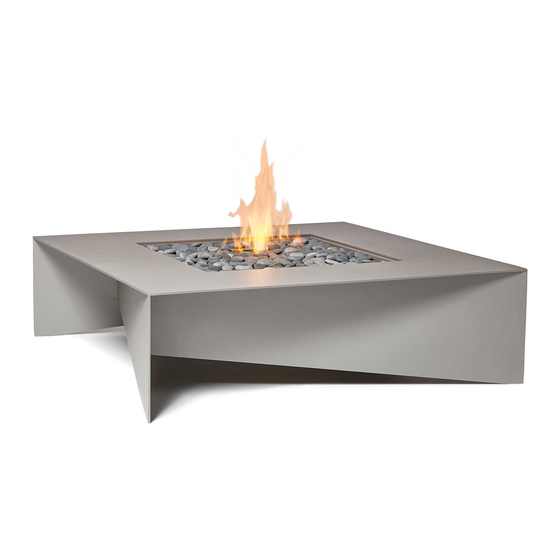

FOLD 48 FIRE TABLE
We recommend that our fire pits be
installed and serviced by professionals
that are certified in the U.S. by NFI
(National Fireplace Institute)
Match-lit
Installation + Owner's Manual
Burner conforms to:
ANSI Z21.97/CSA 2.41 - 2017 "Outdoor Decorative Gas Appliances"
CSA-2.17-2017 "Gas-fired Appliances For Use at High Altitudes"
DANGER - FIRE OR EXPLOSION HAZARD
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area immediately.
4. After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion, which could
cause property damage, personal injury, or death.
WARNING: FOR OUTDOOR USE ONLY.
Installation and service must be performed by a qualified installer, service
agency, or gas supplier
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance. An LP-cyllinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent, car
or home.
WARNING:
If the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury, or loss of life.
INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference

Advertisement

Table of Contents
loading

Related Manuals for Paloform FOLD 48

Summary of Contents for Paloform FOLD 48

  • Page 1 FOLD 48 FIRE TABLE Match-lit Installation + Owner's Manual Burner conforms to: ANSI Z21.97/CSA 2.41 - 2017 “Outdoor Decorative Gas Appliances” CSA-2.17-2017 "Gas-fired Appliances For Use at High Altitudes" DANGER - FIRE OR EXPLOSION HAZARD If you smell gas: 1. Shut off gas to the appliance.

  • Page 2: Safety Information

    SAFETY INFORMATION FOLD 48 FIRE TABLE Match-lit | Installation & Owner's Manual WARNINGS: WARNING: 10. Turn the appliance off and let cool before servicing, Any modification to this appliance or its installing, repairing or covering. Any guard or other controls can be dangerous.

  • Page 3: Basic Assembly

    BASIC ASSEMBLY FOLD 48 FIRE TABLE Match-lit | Installation & Owner's Manual UNPACK: Account for all parts (see p. 14) FRAGILE: Handle with care METAL COVER LEVEL: Place on a solid, level surface AIR VENTS: Do not block ventilation holes in base (see p.

  • Page 4: Dimensions And Specifications

    DIMENSIONS & SPECIFICATIONS FOLD 48 FIRE TABLE Match-lit | Installation & Owner's Manual NATURAL GAS PROPANE Burner Model # CIR-M-18 CIR-M-18P Max Heat Input 69,000 BTU/h 60,000 BTU/h Inlet Pressure - Min. 4.5" W.C 11.0" W.C. Inlet Pressure - Max.

  • Page 5: Required Clearances

    REQUIRED CLEARANCES FOLD 48 FIRE TABLE Match-lit | Installation & Owner's Manual 72" 72” 6" 5” 0" CLEARANCE BELOW FIG 1. MINIMUM CLEARANCES TO COMBUSTIBLES...
  • Page 6 ASSEMBLY FOLD 48 FIRE TABLE Match-lit | Installation & Owner's Manual TO ASSEMBLE THE FIRE PIT WARNING: 1. Connect the Burner Assembly to the gas/propane CORRECT FLAME APPEARANCE Failure to position parts in supply using the supplied flex connector and following accordance with these diagrams the instructions on page 8.
  • Page 7 BURNER MEDIA & DECORATIVE TOPPING FOLD 48 FIRE TABLE Match-lit | Installation & Owner's Manual CAUTION: Do not use any media over the burner that have not been supplied by Paloform. Landscape stone or other natural or manufactured materials may explode when heated.

  • Page 8: Connecting To Gas Supply

    CONNECTING TO GAS SUPPLY FOLD 48 FIRE TABLE Match-lit | Installation & Owner's Manual WARNING: INSTALLATION REQUIREMENTS CHECKING GAS CONNECTION A qualified service person must connect Installation must include a manual shutoff valve, union, WARNING: Test all gas piping and connections the appliance to the gas supply.

  • Page 9: Initial Lighting Instructions

    LIGHTING YOUR FIRE PIT FOLD 48 FIRE TABLE Match-lit | Installation & Owner's Manual INITIAL LIGHTING INSTRUCTIONS WARNINGS: Failure to follow these instructions exactly may result in fire or 1. Purge air from the supply line as follows: explosion causing property damage, personal injury or loss •...

  • Page 10: Valve Positions

    LIGHTING YOUR FIRE PIT FOLD 48 FIRE TABLE Match-lit | Installation & Owner's Manual The gas valve has three positions: PILOT, ON and OFF. STOP! To light your fire pit, you first light the pilot flame, then turn on the gas to main burner.

  • Page 11: Cleaning And Maintenance

    CLEANING AND MAINTENANCE FOLD 48 FIRE TABLE Match-lit | Installation & Owner's Manual KEEP YOUR FIRE PIT COVERED Covering your fire pit with its all-weather cover when not in use will prolong the life of PILOT ASSEMBLY all its components.

  • Page 12: Troubleshooting

    FOLD 48 FIRE TABLE Match-lit | Installation & Owner's Manual TROUBLESHOOTING WARNING: OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Turn off appliance and let cool before Unit is smoking / sooting excessively. (Note: Poor fuel quality Contact local natural gas company It is natural and unavoidable for appliance Separate the stones to allow more servicing.

  • Page 13: Illustrated Parts List

    ILLUSTRATED PARTS LIST FOLD 48 FIRE TABLE Match-lit | Installation & Owner's Manual Natural Gas Propane Pilot Cover CIR-EPC same Pilot Shroud CIR-EPC same Pilot Assembly PIL-M-388 same 18” Burner Ring CIR-18-BUR same Burner Pan CIR-18-PAN same 3/8” Flare Adapter...

  • Page 14: Warranty Information

    This warranty is expressly in lieu of other warranties, express or implied, including the warranty of merchantability of fitness for purpose and of all other obligations or liabilities. Paloform does not assume for it any other obligations or liabilities in connection with sale or use of the appliance. In states that do not allow limitations on how long an implied warranty lasts, or do not allow exclusion of indirect damage, those limitations of exclusions may not apply to you.
