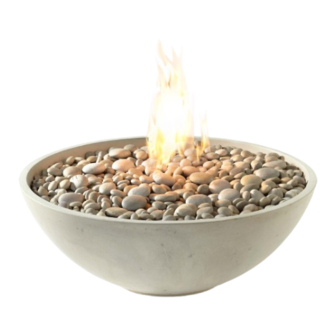

MISO FIRE PIT
0063
Match-lit
Installation + Owner's Manual
Meets the essential requirements as described in the European Directive 2009/142/EC
DANGER - IF YOU SMELL GAS
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and immediately call your gas
supplier or fire department.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance. An LP-cyllinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent, car
or home.
WARNING:
Improper installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING: FOR OUTDOOR USE ONLY!
INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference
Advertisement
Table of Contents
Related Manuals for Paloform MISO
Summary of Contents for Paloform MISO
- Page 1 MISO FIRE PIT Match-lit Installation + Owner's Manual Meets the essential requirements as described in the European Directive 2009/142/EC DANGER - IF YOU SMELL GAS 1. Shut off gas to the appliance. 0063 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
-
Page 2: Safety Information
SAFETY INFORMATION MISO 36 FIREBOWL CE Match-lit | Installation & Owner's Manual WARNINGS: WARNING: 10. Do not use the appliance if any part has been under Any modification to this appliance or its IMPORTANT: This appliance should water. Immediately call a qualified service technician controls can be dangerous. -
Page 3: Basic Assembly
BASIC ASSEMBLY MISO 36 FIREBOWL CE Match-lit | Installation & Owner's Manual UNPACK: Account for all parts (see p. 13) FRAGILE: Handle with care LEVEL: Place on a solid, level surface TOPPING SUPPORT RING AIR VENTS: Do not block ventilation holes in base - if applicable (see p. -
Page 4: Dimensions And Specifications
DIMENSIONS & SPECIFICATIONS MISO 36 FIREBOWL CE Match-lit | Installation & Owner's Manual NATURAL GAS PROPANE Burner Model # CIR-M-18 CIR-M-18P Nominal Heat Input G20 - 20mbar: G31 - 37mbar: 25 kW 25 kW 1770 gr/h Burner Pressure 8.7 mbar... -
Page 5: Required Clearances
REQUIRED CLEARANCES MISO 36 FIREBOWL CE Match-lit | Installation & Owner's Manual 1829 mm 1829 mm 406 mm 305 mm 0 mm CLEARANCE BELOW SOBA MISO FIG 1. MINIMUM CLEARANCES TO COMBUSTIBLES... - Page 6 ASSEMBLY MISO 36 FIREBOWL CE Match-lit | Installation & Owner's Manual TO ASSEMBLE THE FIRE PIT WARNING: 1. Connect the Burner Assembly to the gas/propane CORRECT FLAME APPEARANCE Failure to position parts in supply using the supplied flex connector and following accordance with these diagrams the instructions on page 8.
- Page 7 BURNER MEDIA & DECORATIVE TOPPING MISO 36 FIREBOWL CE Match-lit | Installation & Owner's Manual CAUTION: Do not use any media over the burner that have not been supplied by Paloform. Landscape stone or other natural or manufactured materials may explode when heated.
-
Page 8: Connecting To Gas Supply
CONNECTING TO GAS SUPPLY MISO 36 FIREBOWL CE Match-lit | Installation & Owner's Manual WARNING: INSTALLATION REQUIREMENTS A qualified service person must connect This appliance must be installed and serviced by trained the appliance to the gas supply. Follow all CHECKING GAS CONNECTION gas installation and service technician only. -
Page 9: Initial Lighting Instructions
LIGHTING YOUR FIRE PIT MISO 36 FIREBOWL CE Match-lit | Installation & Owner's Manual WARNINGS: INITIAL LIGHTING INSTRUCTIONS Failure to follow these instructions exactly may result in fire or explosion causing property damage, personal injury or loss of life. 1. Purge air from the supply line as follows: •... -
Page 10: Valve Positions
LIGHTING YOUR FIRE PIT MISO 36 FIREBOWL CE Match-lit | Installation & Owner's Manual The gas valve has three positions: PILOT, ON and OFF. STOP! To light your fire pit, you first light the pilot flame, then turn on the gas to main burner. -
Page 11: Cleaning And Maintenance
CLEANING AND MAINTENANCE MISO 36 FIREBOWL CE Match-lit | Installation & Owner's Manual KEEP YOUR FIRE PIT COVERED Covering your fire pit with its all-weather cover when not in use will prolong the life of PILOT ASSEMBLY all its components. -
Page 12: Troubleshooting
MISO 36 FIREBOWL CE Match-lit | Installation & Owner's Manual TROUBLESHOOTING WARNING: OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Turn off appliance and let cool before Unit is smoking / sooting excessively. (Note: Poor fuel quality Contact local natural gas company It is natural and unavoidable for appliance Separate the stones to allow more servicing. -
Page 13: Illustrated Parts List
ILLUSTRATED PARTS LIST MISO 36 FIREBOWL CE Match-lit | Installation & Owner's Manual Natural Gas Propane Pilot Cover CIR-EPC same Pilot Shroud CIR-EPC same Pilot Assembly PIL-M-388 same 18” Burner Ring CIR-18-BUR same Burner Pan CIR-18-PAN same 3/8” Flare Adapter... -
Page 14: Warranty Information
This warranty is expressly in lieu of other warranties, express or implied, including the warranty of merchantability of fitness for purpose and of all other obligations or liabilities. Paloform does not assume for it any other obligations or liabilities in connection with sale or use of the appliance. In states that do not allow limitations on how long an implied warranty lasts, or do not allow exclusion of indirect damage, those limitations of exclusions may not apply to you.
