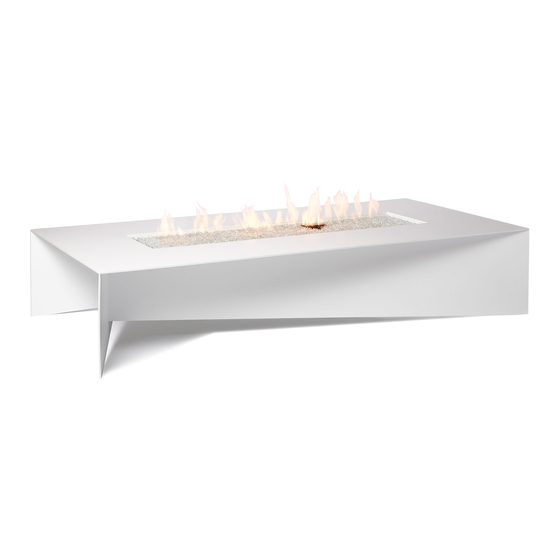

FOLD 72 FIRE TABLE
0063
Electronic Ignition
Installation + Owner's Manual
Meets the essential requirements as described in the European Directive 2009/142/EC
DANGER - IF YOU SMELL GAS
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and immediately call your gas
supplier or fire department.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance. An LP-cyllinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent, car
or home.
WARNING:
Improper installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING: FOR OUTDOOR USE ONLY!
INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOLD 72 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Paloform FOLD 72

  • Page 1 FOLD 72 FIRE TABLE Electronic Ignition Installation + Owner's Manual Meets the essential requirements as described in the European Directive 2009/142/EC DANGER - IF YOU SMELL GAS 1. Shut off gas to the appliance. 0063 2. Extinguish any open flame.
  • Page 2: Safety Information

    SAFETY INFORMATION FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual WARNINGS: WARNING: 10. Do not use the appliance if any part has been under Any modification to this appliance or its IMPORTANT: This appliance should water. Immediately call a qualified service technician controls can be dangerous.
  • Page 3: Basic Assembly

    BASIC ASSEMBLY FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual UNPACK: Account for all parts (p. 14-15) FRAGILE: Handle with care LEVEL: Place on a solid, level surface AIR VENTS: Do not block ventilation gaps (p. 4)
  • Page 4: Dimensions And Specifications

    DIMENSIONS & SPECIFICATIONS FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual 14" SIDE VENTILATION GAP DO NOT OBSTRUCT 72" 36" 1829 11-5/8" FOLD 72 FOLD 72 NATURAL GAS PROPANE Burner Model # LIN-E-36 LIN-E-36P Heat Input...
  • Page 5: Required Clearances

    REQUIRED CLEARANCES FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual 1829 mm 2 " 4 " 4 " 4” 4” 0" CLEARANCE BELOW MINIMUM CLEARANCES TO COMBUSTIBLES...
  • Page 6 ASSEMBLY FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual TO ASSEMBLE THE FIRE PIT WARNING: 1. Assemble fire pit housing per diagram on page 3. Failure to position parts in accordance with these diagrams and instructions 2.
  • Page 7 BURNER MEDIA & DECORATIVE TOPPING FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual CAUTION: Do not use any media over the burner that have not been supplied by Paloform. Landscape stone or other natural or manufactured materials may explode when heated.
  • Page 8: Connecting To Gas Supply

    CONNECTING TO GAS SUPPLY FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual WARNING: INSTALLATION REQUIREMENTS A qualified service person must connect This appliance must be installed and serviced by trained the appliance to the gas supply. Follow all CHECKING GAS CONNECTION gas installation and service technician only.
  • Page 9: Initial Lighting Instructions

    LIGHTING YOUR FIRE PIT FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual WARNINGS INITIAL LIGHTING INSTRUCTIONS Failure to follow these instructions exactly may result in fire or explosion causing property damage, personal injury or loss Before placing burner assembly into a housing: of life.
  • Page 10 LIGHTING YOUR FIRE PIT FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual WARNING: OPERATING INSTRUCTIONS This appliance is designed to be connected to a power 1. STOP! Read the safety information on pages 1, 2 and 10 of this manual.
  • Page 11: Cleaning And Maintenance

    CLEANING AND MAINTENANCE FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual KEEP YOUR FIRE PIT COVERED Covering your fire pit with its all-weather cover when not in use will prolong the life of all its components.
  • Page 12: Troubleshooting

    FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual TROUBLESHOOTING WARNING: OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Turn off appliance and let cool before Burner shuts off/relights intermittently. Wind or gusts in excess of 16 km/h Protect pilot from wind with servicing.
  • Page 13 TROUBLESHOOTING cont’d FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual WARNING: OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Turn off appliance and let cool before When power is turned on, nothing No power to unit Check connections between...
  • Page 14: Illustrated Parts List

    ILLUSTRATED PARTS LIST FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual Natural Gas Propane Pilot Cover LIN-EPC same Pilot Shroud LIN-EPC same LIN-36 Burner Tube LIN-36-ASSY same Air Shutter Orifice FIT-ORI-26 FIT-ORI-43 Media Tray LIN-36-ASSY-A same...
  • Page 15 ILLUSTRATED PARTS LIST - cont’d FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual Natural Gas Propane CIR Control Box Cover CIR-E-BOX same CIR Control Box Housing CIR-E-BOX same Dual Solenoid Valve E-VAL-BASO w/ LP reg. spring 3/8”x1-1/2”...
  • Page 16: Ac Power Adapter

    ILLUSTRATED PARTS LIST FOLD 72 FIRE TABLE CE Electronic Ignition | Installation & Owner’s Manual Wiring Diagram IGNITION CONTROL BOARD: E-BOARD-CC9 PILOT: PIL-E-410 OR PIL-E-410LP GAS VALVE: E-VAL-BASO AC POWER ADAPTER AC POWER ADAPTER INPUT: AC 120V 60 Hz 8A...
  • Page 17: Warranty Information

    This warranty is expressly in lieu of other warranties, express or implied, including the warranty of merchantability of fitness for purpose and of all other obligations or liabilities. Paloform does not assume for it any other obligations or liabilities in connection with sale or use of the appliance. In states that do not allow limitations on how long an implied warranty lasts, or do not allow exclusion of indirect damage, those limitations of exclusions may not apply to you.
