Paloform KODO 72 Manual

Hide thumbs Also See for KODO 72:
Table of Contents

Advertisement

Quick Links

Download this manual

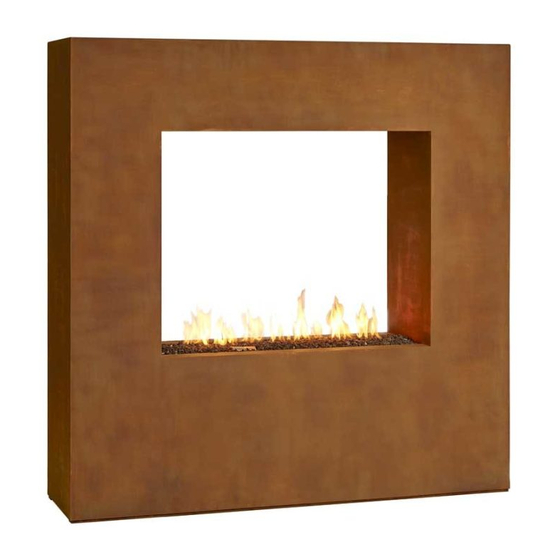

KODO 72 OUTDOOR FIREPLACE
0063
Meets the essential requirements as described in the European Gas Appliance Regulation (EU) 2016/426 (9 March 2016)
DANGER - IF YOU SMELL GAS
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and immediately call your gas
supplier or fire department.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance. An LP-cyllinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent, car
or home.
WARNING:
Improper installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING: FOR OUTDOOR USE ONLY!
INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference
Match-lit
Installation + Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Paloform KODO 72

Summary of Contents for Paloform KODO 72

  • Page 1 KODO 72 OUTDOOR FIREPLACE Match-lit Installation + Owner's Manual Meets the essential requirements as described in the European Gas Appliance Regulation (EU) 2016/426 (9 March 2016) DANGER - IF YOU SMELL GAS 1. Shut off gas to the appliance. 0063 2.

  • Page 2: Safety Information

    SAFETY INFORMATION KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual WARNINGS: WARNING: 10. Do not use the appliance if any part has been under Any modification to this appliance or its IMPORTANT: This appliance should water. Immediately call a qualified service technician controls can be dangerous.

  • Page 3: Basic Assembly

    BASIC ASSEMBLY KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual UNPACK: Account for all parts (see p. 13) FRAGILE: Handle with care ANCHOR: Anchor surround to slab or decking surface (see pp 17-20) AIR VENTS: Do not block ventilation gaps...

  • Page 4: Dimensions And Specifications

    DIMENSIONS & SPECIFICATIONS KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual FACE SIDE 44” 1118 mm 34” 864 mm 72” 1829 mm ACCESS PANEL (OPTIONAL) 24” VENTILATION GAP 19-1/4" 610 mm DO NOT OBSTRUCT 72” 18” 1829 mm 457 mm 43-5/8”...

  • Page 5: Required Clearances

    REQUIRED CLEARANCES KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual 305 mm 12” Zero Clearance to Side 96” 2438 mm 0 mm CLEARANCE BELOW MINIMUM CLEARANCES TO COMBUSTIBLES...
  • Page 6 ASSEMBLY KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual TO ASSEMBLE THE FIREPLACE WARNING: 1. Ensure the fireplace surround is anchored per specifications. Failure to position parts in accordance with these diagrams and instructions 2. Connect the Burner Assembly to the gas supply using the supplied and/or failure to use parts specifically flex connector, following the instructions on p 9.
  • Page 7 BURNER MEDIA & DECORATIVE TOPPING KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual CAUTION: Do not use any media over the burner that have not been supplied by Paloform. Landscape stone or other natural or manufactured materials may explode when heated.

  • Page 8: Connecting To Gas Supply

    CONNECTING TO GAS SUPPLY KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual WARNING: INSTALLATION REQUIREMENTS A qualified service person must connect This appliance must be installed and serviced by trained the appliance to the gas supply. Follow all CHECKING GAS CONNECTION gas installation and service technician only.

  • Page 9: Initial Lighting Instructions

    LIGHTING YOUR FIREPLACE KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual WARNINGS INITIAL LIGHTING INSTRUCTIONS Failure to follow these instructions exactly may result in fire or explosion causing property damage, personal injury or loss Before placing burner assembly into a housing: of life.
  • Page 10 LIGHTING YOUR FIRE PIT KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual The gas valve has three positions: PILOT, ON and OFF. STOP! To light your fire pit, you first light the pilot flame, then turn on the gas to main burner.

  • Page 11: Cleaning And Maintenance

    CLEANING AND MAINTENANCE KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual KEEP YOUR FIREPLACE BURNER COVERED Covering your fireplace burner when not in use will prolong the life of all its components. WARNING: Turn off gas before servicing fireplace.

  • Page 12: Troubleshooting

    KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual TROUBLESHOOTING WARNING: OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Turn off appliance and let cool before Unit is smoking / sooting excessively. (Note: Poor fuel quality Contact local natural gas company...

  • Page 13: Illustrated Parts List

    ILLUSTRATED PARTS LIST KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual Natural Gas Propane Pilot Cover LIN-EPC same Pilot Shroud LIN-EPC same LIN-36 Burner Tube LIN-36-ASSY same Air Shutter Orifice FIT-ORI-26 FIT-ORI-43 Media Tray LIN-36-ASSY-A same Burner Tray...
  • Page 14 ANCHORING - CONCRETE FOOTING KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual ATTENTION: Drawings are guidelines only. Customer is responsible for ensuring that installation complies with local codes/regulations.
  • Page 15 ANCHORING - WOOD DECK KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual ATTENTION: Drawings are guidelines only. Customer is responsible for ensuring that installation complies with local codes/regulations.
  • Page 16 ANCHORING - WOOD DECK cont’d KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual ATTENTION: Drawings are guidelines only. Customer is responsible for ensuring that installation complies with local codes/regulations.
  • Page 17 ANCHORING - WOOD DECK cont’d KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual ATTENTION: Drawings are guidelines only. Customer is responsible for ensuring that installation complies with local codes/regulations.

  • Page 18: Warranty Information

    RETAIN FOR WARRANTY Paloform’s priority is to meet or exceed your expectations with our products and service—we take pride in our products and unequivocally stand behind them. If your product has issues, we will work with you to make things right.
