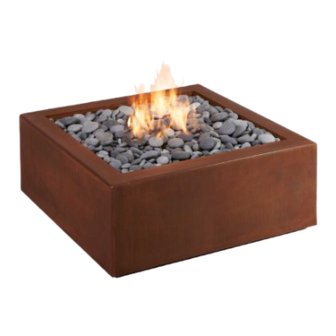

Paloform BENTO 32 Manual

Concrete fire pit
Hide thumbs Also See for BENTO 32:
Table of Contents

Advertisement

Quick Links

Download this manual
BENTO 32 CONCRETE FIRE PIT
We recommend that our fire pits be
installed and serviced by professionals
that are certified in the U.S. by NFI
(National Fireplace Institute)
Electronic Ignition
Installation + Owner's Manual
Burner conforms to:
ANSI Z21.97/CSA 2.41 - 2017 "Outdoor Decorative Gas Appliances"
CSA-2.17-2017 "Gas-fired Appliances For Use at High Altitudes"
DANGER - FIRE OR EXPLOSION HAZARD
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area immediately.
4. After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion, which could
cause property damage, personal injury, or death.
WARNING: FOR OUTDOOR USE ONLY.
Installation and service must be performed by a qualified installer, service
agency, or gas supplier
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance. An LP-cyllinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent, car
or home.
WARNING:
If the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury, or loss of life.
INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference

Advertisement

Table of Contents
loading

Related Manuals for Paloform BENTO 32

Summary of Contents for Paloform BENTO 32

  • Page 1 BENTO 32 CONCRETE FIRE PIT Electronic Ignition Installation + Owner's Manual Burner conforms to: ANSI Z21.97/CSA 2.41 - 2017 “Outdoor Decorative Gas Appliances” CSA-2.17-2017 "Gas-fired Appliances For Use at High Altitudes" DANGER - FIRE OR EXPLOSION HAZARD If you smell gas: 1.

  • Page 2: Safety Information

    SAFETY INFORMATION BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual WARNINGS: WARNING: 10. Turn the appliance off and let cool before servicing, Any modification to this appliance or its installing, repairing or covering. Any guard or other controls can be dangerous.

  • Page 3: Basic Assembly

    BASIC ASSEMBLY BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual UNPACK: Account for all parts (see p. 14) FRAGILE: Handle with care LEVEL: Place on a solid, level surface BURNER MEDIA PAN AIR VENTS: Do not block ventilation holes BURNER RING in base (see p.

  • Page 4: Dimensions And Specifications

    DIMENSIONS & SPECIFICATIONS BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual NATURAL GAS PROPANE Burner Model # CIR-E-18 CIR-E-18P Max Heat Input 69,000 BTU/h 60,000 BTU/h Inlet Pressure - Min. 4.5" W.C 11.0" W.C. Inlet Pressure - Max.

  • Page 5: Required Clearances

    REQUIRED CLEARANCES BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual 72” 72” 13” 8” 0" CLEARANCE BELOW BENTO 32 BENTO 42 FIG 1. MINIMUM CLEARANCES TO COMBUSTIBLES...
  • Page 6 ASSEMBLY BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual TO ASSEMBLE THE FIRE PIT WARNING: 1. Connect the Burner Assembly to the gas/propane CORRECT FLAME APPEARANCE Failure to position parts in supply using the supplied flex connector and following accordance with these diagrams the instructions on page 8.
  • Page 7 BURNER MEDIA & DECORATIVE TOPPING BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual CAUTION: Do not use any media over the burner that have not been supplied by Paloform. Landscape stone or other natural or manufactured materials may explode when heated.

  • Page 8: Connecting To Gas Supply

    CONNECTING TO GAS SUPPLY BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual WARNING: INSTALLATION REQUIREMENTS CHECKING GAS CONNECTION A qualified service person must connect Installation must include a manual shutoff valve, union, WARNING: Test all gas piping and connections the appliance to the gas supply.

  • Page 9: Initial Lighting Instructions

    LIGHTING YOUR FIRE PIT BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual WARNINGS: INITIAL LIGHTING INSTRUCTIONS Failure to follow these instructions exactly may result in fire or explosion causing property damage, personal injury or loss Before placing burner assembly into a housing: of life.
  • Page 10 LIGHTING YOUR FIRE PIT BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual OPERATING INSTRUCTIONS WARNING: This appliance is designed to be connected to a power 1. STOP! Read the safety information on pages 1, 2 and 9 of this manual.

  • Page 11: Cleaning And Maintenance

    CLEANING AND MAINTENANCE BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual KEEP YOUR FIRE PIT COVERED Covering your fire pit with its all-weather cover when not in use will prolong the life of PILOT ASSEMBLY all its components.

  • Page 12: Troubleshooting

    BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual TROUBLESHOOTING WARNING: OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Turn off appliance and let cool before Burner shuts off/relights intermittently. Wind or gusts in excess of 16 km/h Protect pilot from wind with servicing.
  • Page 13 TROUBLESHOOTING cont’d BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual WARNING: OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Turn off appliance and let cool before When power is turned on, nothing No power to unit Check connections between...

  • Page 14: Illustrated Parts List

    ILLUSTRATED PARTS LIST BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual Natural Gas Propane Pilot Cover CIR-EPC same Pilot Shroud CIR-EPC same Pilot Assembly PIL-E-410 PIL-E-410LP 18” Burner Ring CIR-18-BUR same Burner Pan CIR-18-PAN same Venturi...
  • Page 15 ILLUSTRATED PARTS LIST - cont’d BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual Natural Gas Propane CIR Control Box Cover CIR-E-BOX same CIR Control Box Housing CIR-E-BOX same Dual Solenoid Valve E-VAL-BASO w/ LP reg. spring 3/8”x1-1/2”...
  • Page 16 ILLUSTRATED PARTS LIST BENTO 32 CONCRETE FIRE PIT Electronic Ignition | Installation & Owner's Manual Wiring Diagram IGNITION CONTROL BOARD: E-BOARD-CC9 PILOT: PIL-E-410 OR PIL-E-410LP GAS VALVE: E-VAL-BASO AC POWER ADAPTER INPUT: AC 120V 60 Hz 8A OUTPUT: 24 VAC, 1 A...

  • Page 17: Warranty Information

    This warranty is expressly in lieu of other warranties, express or implied, including the warranty of merchantability of fitness for purpose and of all other obligations or liabilities. Paloform does not assume for it any other obligations or liabilities in connection with sale or use of the appliance.
