Installation; Wiring Diagram - Theben TIME GUARD Programstat TRT034 Operating & Installation Instructions Manual

Contents
TRT034 programmer
TRT034 wall plate
TRT034 instruction leaflet
2. Siting
The TRT034 should be located at a position
which eases wiring runs and gives good access
for programming. It should be mounted
approximately 1.5m above floor level.

3. Installation

This product should be installed by a qualified
installer to current installation standards.
If in any doubt contact the Timeguard Helpline
020 8450 0515.
Always isolate the mains supply before
removing the unit from its wall plate.
The TRT034 is designed to be surface mounted
on the supplied wall plate.
Isolate 230VAC mains supply.
Incoming and outgoing cable should be 1.5mm sq.
Remove wall plate from unit, by undoing
retaining screws, and pivoting the bottom of the
unit outwards. The unit can then be lifted off.
2 x wall plugs
2 x screws
Pass incoming wires through opening in wall
plate, and fix wall plate securely to the wall,
using screws provided (and wall plugs if
necessary). The screws which hold the product
to the wall plate should point downwards.
Allow sufficient excess cable to wire up the unit,
but not too much to make it difficult to close
the unit to the wall plate.
Connect the conductors to the relevant terminal,
according to the wiring diagram on the wall
plate (or below). Ensure that the curved brass
washer grips the conductor.

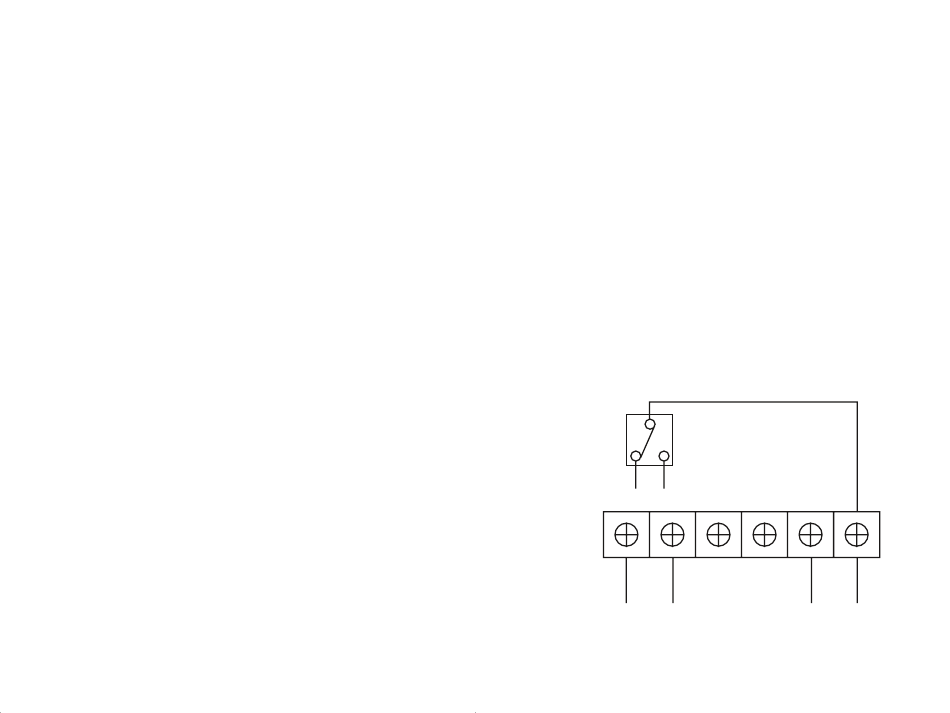

Wiring Diagram

Note:
Check boiler
instructions
before
connecting.
NC1 NO1
CH CH
OFF ON
Fig. 4
N L
N L
230 VAC
