Theben Timeguard WFADAPM Installation & Operating Instructions Manual

Wifi smart plug
Hide thumbs

Advertisement

Quick Links

Download this manual

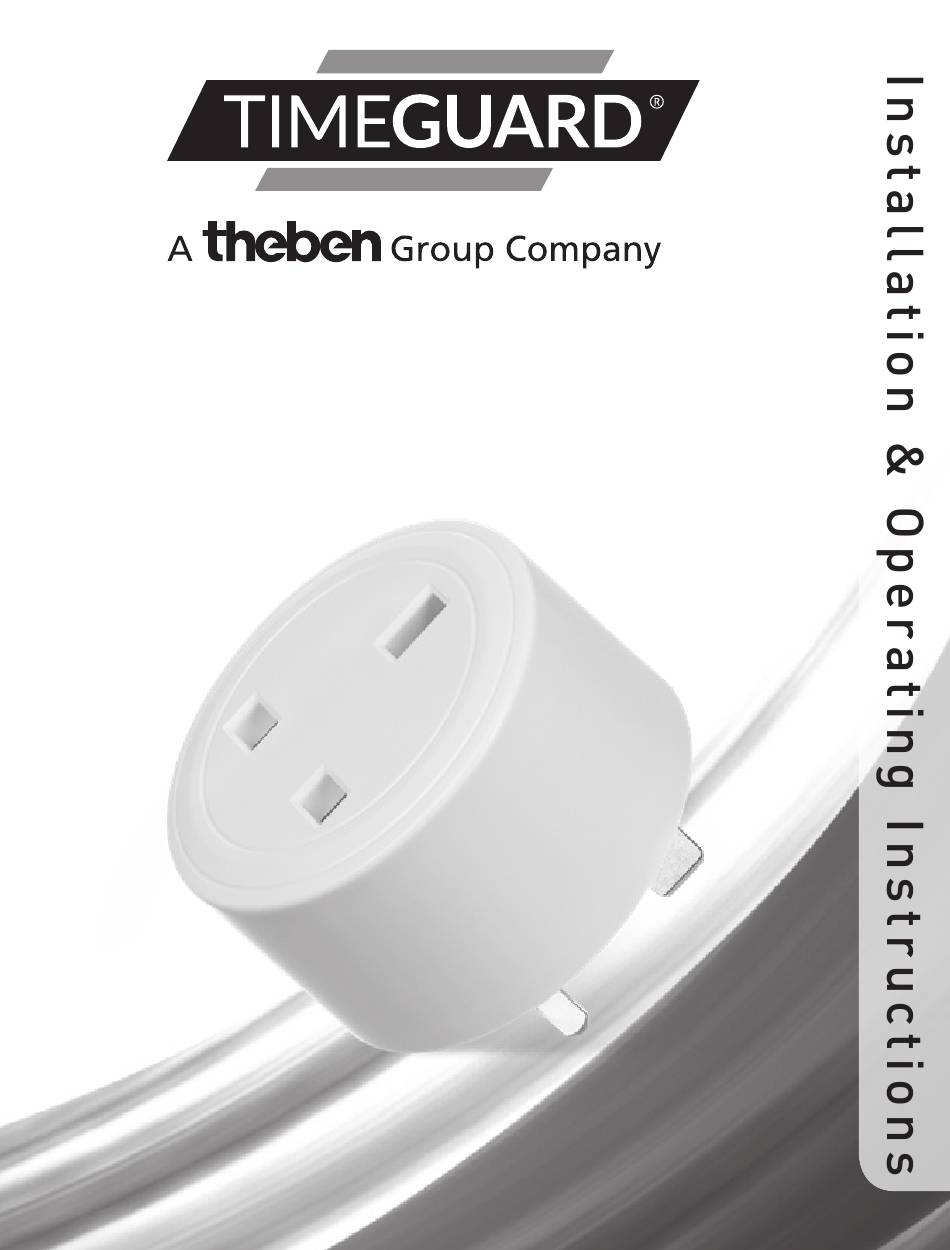

WiFi Smart Plug
Model: WFADAPM

Advertisement

loading

Related Manuals for Theben Timeguard WFADAPM

Summary of Contents for Theben Timeguard WFADAPM

  • Page 1 WiFi Smart Plug Model: WFADAPM...

  • Page 2: General Information

    1. General Information These instructions should be read carefully in full before installation, and retained for further reference and maintenance. 2. Safety • Do not plug in any appliance that exceeds the capacity of the Smart Plug. • Always ensure the plug of any appliance is fully inserted into the Smart Plug outlet.
  • Page 3 • Manual ON/OFF Controls • Operating temperature: -10°c to +45°c • Operating Humidity: ≤80%RH • WLAN-Standard: 802.11 b/g/n • Encryption: WEP/WPA/WPA2 • CE Compliant • EC Directives: Conforms to latest directives • Dimensions (H x W x D): 58.2 x 58.2 x 55.5mm 4.
  • Page 4 5. Downloading App and Registration Note: the smartphone or tablet must be connected to a 2.4GHz band on the router. Paring on the 5GHz band will result in paring either timing out or being unsuccessful. Refer to your ISP (Internet Service Provider) on separating the bands if required.
  • Page 6 • Install the App and open it to the registration screen. Click on the ‘Register’ button.
  • Page 7 • Install the App and open it to the registration screen. Click on the ‘Register’ button.
  • Page 8 • Choose your region by selecting the Country Code. Enter your email address or phone number and click ‘Get Verification Code’ .
  • Page 9 • Enter the Verification Code sent to the email address or phone number that you provided. Once you have successfully entered the code, it will automatically move you to the Password screen.
  • Page 10 • Assign a Password (this must be between 6 to 20 characters including letters and digits) and click ‘Done’ .
  • Page 11 • You are now registered and by default will see the App home page.

  • Page 12: Home Management

    6. Home Management Note: Before adding any devices to your account, structuring your household (or the property) may be a consideration if you plan on using Smart devices in different rooms or locations. Select the ‘Me’ option from the home •...
  • Page 15 Select the ‘Home Name’ option and • enter your last name or even ‘My Home’ if preferred. (This is required to allocate devices to separate rooms later once paired). • Next tick the rooms you wish to assign to your account; this can be changed at any time and custom room names can also be added.
  • Page 16 • To navigate back to the home screen, press the ‘Back’ button, and then click Home.

  • Page 17: Pairing Your Device(S)

    7. Pairing your Device(s) • To add a new device to your account, click the ‘Add Device’ button (or click on the + button in the top right hand corner)
  • Page 18 • Notice the different categories of products; it is essential that the correct product is selected for the pairing process to be successful. For the WiFi Smart Plug, choose the ‘Socket (Wi-Fi)’ option from the list.
  • Page 19 • Plug the Wi-Fi Smart Plug into a socket with the power switch in the ON position. The Wi-Fi light (Smart Plug ON/OFF power button LED) will begin to flash. • When the Wi-Fi light is flashing, press the ‘Confirm indicator rapidly blinking’ button.
  • Page 22 • Shortly into the pairing process, the flashing Wi-Fi light will turn OFF and become stable. This indicates that the product has joined the network.
  • Page 23 • If the following screen is displayed, then the product has been paired successfully. To rename your product, select the pencil icon. If this is not required, click on the ‘Done’ button and you will guided to the device controls menu.
  • Page 25 • To navigate back to the home screen, press the ‘Back’ button. The newly paired WiFi Smart Plug will now be listed. Note: If the pairing process was not successful, disconnect the mains supply from the product and re-establish power to the unit. Follow the bullet points from ’Section 7‘...
  • Page 26 8. Smart Home Assistant • To add your device to your Smart Home Assistant services, such as Google Home or Amazon Alexa, follow the on-board instructions located on the TuyaSmart App. To do this, select the ‘Me’ option from the home menu, and then select ‘More Services’...
  • Page 27 • On the more services screen, you will see support or different applications for automated Smart Home control. Follow the instructions on the TuyaSmart App to add the devices to your Smart Home Assistant service.
  • Page 28 Note: The Smart Home Assistant services supported by the TuyaSmart App may change as it is a 3rd party App Service. Any services that may be removed are the responsibility of TuyaSmart developers and not Timeguard.
  • Page 29 9. Support Note: If you have any concerns that the intended application of this product does not meet your requirements, please contact Timeguard directly prior to installation.

  • Page 30: Year Guarantee

    10. Guarantee & Company Details 3 Year Guarantee In the unlikely event of this product becoming faulty due to defective material or manufacture, within 3 years of the date of purchase, please return it to your supplier in the first year with proof of purchase and it will be replaced free of charge.
  • Page 31 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline: HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Coordinators will be online to assist in resolving your query. For a product brochure please contact: Timeguard Limited.
