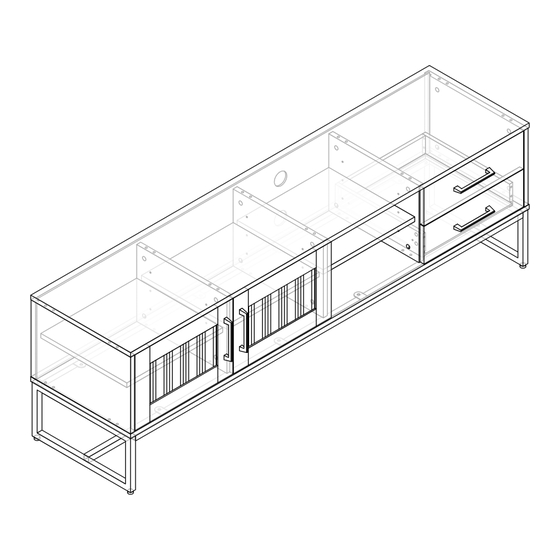

Entertainment unit
Hide thumbs

Advertisement

Quick Links

Download this manual

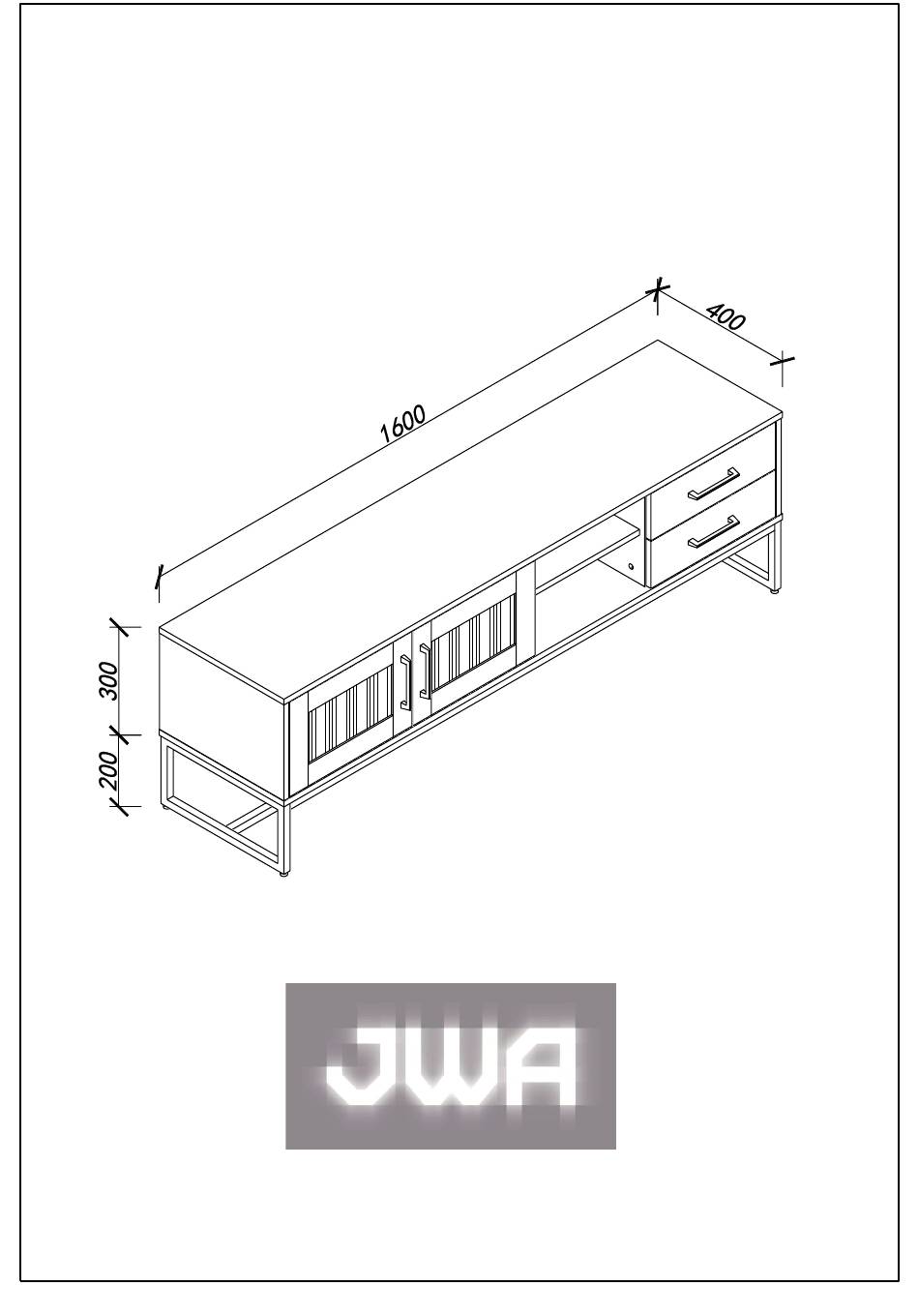

ASSEMBLY INSTRUCTION
MAYER ENTERTAINMENT UNIT
ITEM CODE 74696
Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia.
For any assistance with assembly or for missing parts please refer to your receipt
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAYER 74696 and is the answer not in the manual?

Questions and answers

Related Manuals for JWA MAYER 74696

Summary of Contents for JWA MAYER 74696

  • Page 1 ASSEMBLY INSTRUCTION MAYER ENTERTAINMENT UNIT ITEM CODE 74696 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.

  • Page 4: Parts List

    PARTS LIST Ø15x12mm M6x40mm 8x30mm 20p cs 20p cs 20p cs 12p c s 1 pc M6x30mm M6x16mm 1pcs V2=12pcs I3=2pcs V2=12pcs I2=2pcs 16pcs Ø12x10.5 mm M6x34mm 2pcs 12pcs 16pcs 16pcs 4pcs M3.5x12 8pcs 8pcs 16pcs 2pcs 2pcs...
  • Page 6 STEP 1: Fix rails (N-1) to panel (4) (7) with screw (V1) . N-1 =4...
  • Page 7 ST EP 2: Fix dowel (B) and cam pin (A) to panel (1) (2) . A=20...
  • Page 8 STEP 3: Insert panel (1) (2) into hole in panel (3) (4) (5) (6) (7). Insert panel (10) into grooves between panel (1) (2) (3) (4).
  • Page 9 STEP 4: Fix panel (1) (2) to panel (3) (4) (5) (6) (7) with cam lock (C). C=20 STEP 5: Fix support tube (J-4) to support tube (J-2) (J-3) with bolt (G1) (G2), Fix metal leg (J-1) to support tube (J-2) (J-3) with bolt (G1).
  • Page 10 STEP 6: Fix metal leg (J-1) and support tube (J-2) to bottom panel (2) with bolt (G1), lock washer (Z1), washer (Z2). Using allen key (H) to fix 100% as shown.
  • Page 11 STEP 7: Attach hinge (I-1) to panel (3) (6) with screw (V2). STEP 8: Attach hinge (I2) to door panel (11B) with screw (V2). Attach hinge (I3) to door panel (11A) with screw (V2). Attach handle (U) to door panel (11A) (11B) with bolt.
  • Page 12 STEP 9:Insert the shelf support (L) into the panel (3) (5) (6) (7), as shown. L=12 STEP 10:Put the panel (8) (9) on the shelf support.
  • Page 13 STEP 11: Insert the door (11A) (11B) into the hinge (I-1), as shown. STEP 12: Adjust to proper position.
  • Page 14 STEP 13-1:Fix cam pin (O) to panel (12) (13) (14) (15). STEP 13-2: Fix panel (14) (15) to panel (13) with cam lock (P). Insert panel (16) into grooves between panel (12) (13) (14) (15). Fix panel (14) (15) to panel (12) with cam lock (P). STEP 13-3:Fix rails (N-2) to panel (14) (15) with screw (V1) Attach handle (U) to panel (12) with bolt.
  • Page 15 STEP 14: Adjust to proper position.
  • Page 16 STEP 15:Insert the back panel hook (E) into the back and using screw to fix , as shown.
  • Page 17 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
  • Page 18 ASSEMBLY COMPLETE...
  • Page 19 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
