JWA MILLS 74697 Assembly Instruction Manual

3 drawer shoe cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual

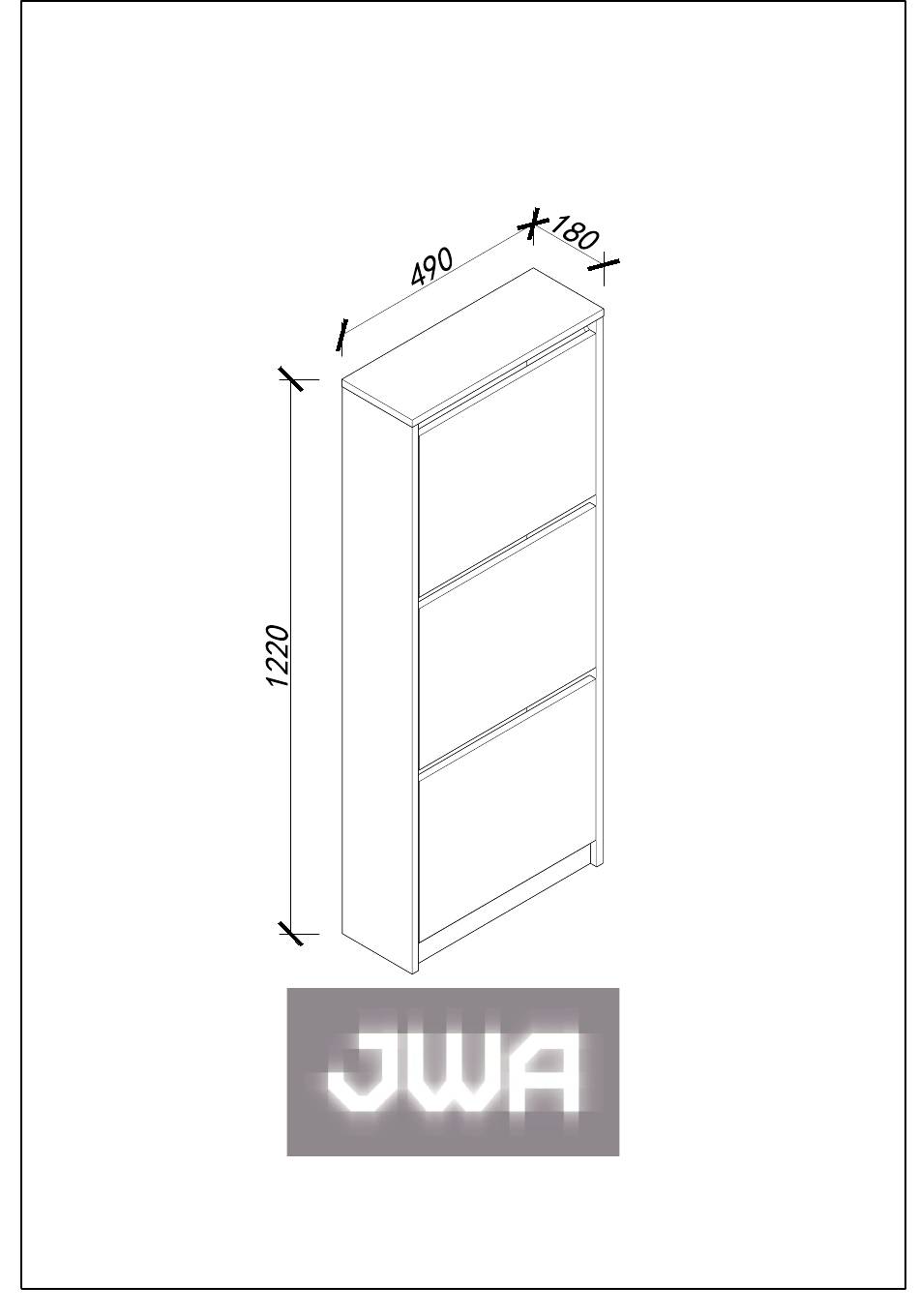

ASSEMBLY INSTRUCTION
MILLS 3 DRAWER SHOE CABINET
ITEM CODE 74697
Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia.
For any assistance with assembly or for missing parts please refer to your receipt
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MILLS 74697 and is the answer not in the manual?

Questions and answers

Related Manuals for JWA MILLS 74697

Summary of Contents for JWA MILLS 74697

  • Page 1 ASSEMBLY INSTRUCTION MILLS 3 DRAWER SHOE CABINET ITEM CODE 74697 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.

  • Page 4: Parts List

    PARTS LIST M4x16 Ø15x12mm M6x40mm 8x30mm 1 pc 48pcs 24p cs 6pcs 24p cs 3pcs...
  • Page 6 STEP 1:Fix dowel (B) and cam pin (A) to panel (1) (2) (3) (4).
  • Page 7 STEP 2:Fix panel (6) to panel (2) with cam lock (C). STEP 3:Insert panel (3) (4) into the holes in the panel (2) (5) (6).
  • Page 8 STEP 4:Insert panel (1) into the holes in the panel (3) (4).
  • Page 9 STEP 5:Fix panel (1) (2) (5) (6) to panel (3) (4) with cam lock (C).
  • Page 10 STEP 6:Fix Plastic tipping bucket (W) to panel (7) (8) (9) with screw (V2).
  • Page 11 STEP 7: Put the plastic retention plug into the hole of the panel (3) (4)。 Fix Plastic tipping bucket (W) to panel (3) (4) with screw (V2).
  • Page 12 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
  • Page 13 ASSEMBLY COMPLETE...
  • Page 14 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
