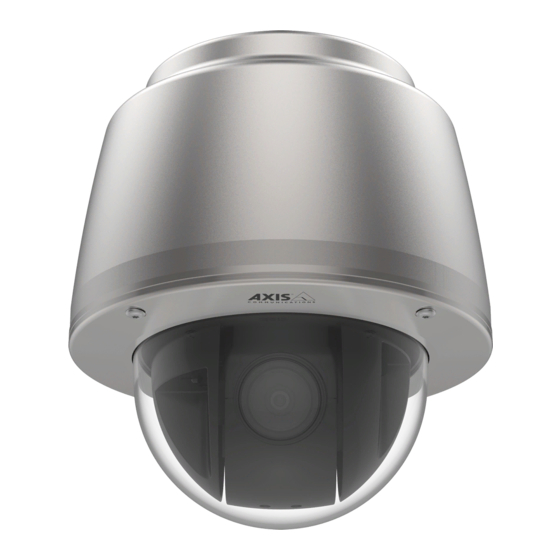

AXIS Q6075-SE PTZ Camera
User manual

Advertisement

Table of Contents
loading

Related Manuals for Axis Q6075-SE

Summary of Contents for Axis Q6075-SE

  • Page 1 AXIS Q6075-SE PTZ Camera User manual...

  • Page 2: Table Of Contents

    AXIS Q6075-SE PTZ Camera Table of Contents Installation ..........

  • Page 3: Installation

    AXIS Q6075-SE PTZ Camera Installation Installation Preview mode Preview mode is ideal for installers when fine tuning the camera view during the installation. No login is required to access the camera view in preview mode. It is available only in factory defaulted state for a limited time from powering up the device.

  • Page 4: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 5: Verify That No One Has Tampered With The Firmware

    Verify that no one has tampered with the firmware To make sure that the device has its original Axis firmware, or to take full control of the device after a security attack: 1. Reset to factory default settings. See Reset to factory default settings on page 64.

  • Page 6: Configure Your Device

    AXIS Q6075-SE PTZ Camera Configure your device Configure your device Basic settings Set the capture mode 1. Go to Video > Installation > Capture mode. 2. Click Change. 3. Select a capture mode and click Save and restart. See also Capture modes on page 52.
  • Page 7 AXIS Q6075-SE PTZ Camera Configure your device Adjust the focus faster with focus recall areas To save the focus settings at a specific pan/tilt range, add a focus recall area. Each time the camera moves into that area it recalls the previously saved focus.
  • Page 8 AXIS Q6075-SE PTZ Camera Configure your device Benefit from IR light in low-light conditions by using night mode Your camera uses visible light to deliver color images during the day. But as the visible light diminishes, color images become less bright and clear.
  • Page 9 AXIS Q6075-SE PTZ Camera Configure your device Find out more about WDR and how to use it at axis.com/web-articles/wdr. Stabilize a shaky image with electronic image stabilization (EIS) Electronic Image Stabilization (EIS) can be used in environments where the product is mounted in an exposed location and subject to vibrations, for example, wind or passing traffic.
  • Page 10 AXIS Q6075-SE PTZ Camera Configure your device Hide parts of the image with privacy masks You can create one or several privacy masks to hide parts of the image. 1. Go to Video > Privacy masks. 2. Click 3. Click the new mask and type a name.

  • Page 11: Adjust The Camera View (Ptz)

    AXIS Q6075-SE PTZ Camera Configure your device 4. The current pan and tilt positions show up in the live view image and in the recording. Add street names and compass direction to the image Note The preset positions and compass direction will be visible in the compass field in all video streams and recordings.

  • Page 12: View And Record Video

    AXIS Q6075-SE PTZ Camera Configure your device Set the move speed, which controls how fast to move to the next preset. 6. Go to Preset positions. 6.1 Select the preset positions that you want in your guard tour. 6.2 Drag them to the View order area, and click Done.

  • Page 13: Set Up Rules For Events

    AXIS Q6075-SE PTZ Camera Configure your device Note Most web browsers don’t support H.265 decoding and because of this the device doesn’t support it in its web interface. Instead you can use a video management system or application that supports H.265 decoding.
  • Page 14 AXIS Q6075-SE PTZ Camera Configure your device 2. Enter a Name. 3. Select the Condition that must be met to trigger the action. If you specify more than one condition for the rule, all of the conditions must be met to trigger the action.
  • Page 15 AXIS Q6075-SE PTZ Camera Configure your device 1. Go to System > Events and add a rule. 2. Type a name for the rule. 3. In the list of actions, under Overlay text, select Use overlay text. 4. Select a video channel.
  • Page 16 AXIS Q6075-SE PTZ Camera Configure your device 8. In the list of schedules, select After hours . 9. In the list of actions, under Recordings, select Record video while the rule is active. 10. Select where to save the recordings.

  • Page 17: Audio

    With portcast technology, you can add audio capability to your product. It allows audio and I/O communication digitally over the network cable between the camera and the interface. To add audio capability to your Axis network video device, connect the portcast compatible Axis audio device and I/O Interface between your device and the PoE switch which provides power.
  • Page 18 Axis portcast device Switch Once the devices are connected, an audio tab becomes visible in the settings for your Axis network video device. Go to the audio tab and turn on Allow audio. See your Axis portcast device’s user manual for more information.

  • Page 19: Status

    AXIS Q6075-SE PTZ Camera The device interface The device interface To reach the device interface, type the device’s IP address in a web browser. Note Support for the features and settings described in this section varies between devices. This icon indicates that the feature or setting is only available in some devices.

  • Page 20: Video

    Shows what kinds of access to the device that are active, and what encryption protocols are in use. Recommendations to the settings are based on the AXIS OS Hardening Guide. Hardening guide: Click to go to AXIS OS Hardening guide where you can learn more about how to apply cybersecurity best practices.
  • Page 21 AXIS Q6075-SE PTZ Camera The device interface Starts the wiper. Click and select a preset position to go to that preset position in the live view. Or, click Setup to go to the preset position page. Adds or removes a focus recall area. When you add a focus recall area, the camera saves the focus settings at that specific pan/tilt range.
  • Page 22 AXIS Q6075-SE PTZ Camera The device interface Installation Capture mode : A capture mode is a preset configuration that defines how the camera captures images. When you change the capture mode, it can affect many other settings, such as view areas and privacy masks.
  • Page 23 AXIS Q6075-SE PTZ Camera The device interface The image before and after it has been straightened. Image Appearance Scene profile : Select a scene profile that suits your surveillance scenario. A scene profile optimizes image settings, including color level, brightness, sharpness, contrast, and local contrast, for a specific environment or purpose.
  • Page 24 AXIS Q6075-SE PTZ Camera The device interface Sharpness: Use the slider to make objects in the image appear sharper by adjusting the edge contrast. If you increase the sharpness, it may increase the bitrate and the amount of storage space needed as well.
  • Page 25 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you have connected a supporting Axis accessory.
  • Page 26 AXIS Q6075-SE PTZ Camera The device interface Exposure Exposure mode: Select an exposure mode to reduce rapidly changing irregular effects in the image, for example flicker produced by different types of light sources. We recommend you to use the automatic exposure mode, or the same frequency as your power network.
  • Page 27 AXIS Q6075-SE PTZ Camera The device interface Max gain: Select the suitable max gain. If you increase the max gain, it improves the visible level of detail in dark images, but also increases the noise level. More noise can also result in increased use of bandwidth and storage. If you set the max gain to a high value, images can differ a lot if the light conditions are very different from day to night.
  • Page 28 Zipstream is a bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example in scenes with moving objects.
  • Page 29 AXIS Q6075-SE PTZ Camera The device interface Overlays : Click to add an overlay. Select the type of overlay from the dropdown list: • Text: Select to show a text that is integrated in the live view image and visible in all views, recordings and snapshots.

  • Page 30: Ptz

    AXIS Q6075-SE PTZ Camera The device interface Preset positions Preset positions A preset position is a saved view that can be used to quickly move the camera view to a specific position. The saved preset positions are available for use in the live view.
  • Page 31 AXIS Q6075-SE PTZ Camera The device interface View order: Displays the preset positions included in the guard tour. • Import all preset positions: Click to add all preset positions to the guard tour. The preset positions are imported in the order they are created.
  • Page 32 AXIS Q6075-SE PTZ Camera The device interface Motion Proportional speed: Turn on to set the maximum proportional speed. • Max proportional speed: Set a value between 1 and 1000 to limit the pan and tilt speed. Max proportional speed is defined as a percentage, where the value 1000 equals 1000%.

  • Page 33: Recordings

    • PTZ control queue: Turn on to place PTZ control requests in a queue. This displays the users status and position in the queue. To use the PTZ controls in AXIS Camera Station, turn off this setting. Enter queue: Click to add your request for PTZ control to the queue.

  • Page 34: Apps

    Apps Add app: Click to install a new app. Find more apps: Click to go to an overview page of Axis apps. Allow unsigned apps: Turn on to allow installation of unsigned apps. Allow root-privileged apps: Turn on to allow apps with root privileges full access to the device.

  • Page 35: System

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/products/analytics. You need a license code and the Axis product serial number to generate a license key.
  • Page 36 AXIS Q6075-SE PTZ Camera The device interface Assign IPv6 automatically: Select to turn on IPv6 and to let the network router assign an IP address to the device automatically. Hostname Assign hostname automatically: Select to let the network router assign a hostname to the device automatically.
  • Page 37 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 38 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 39 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 40 AXIS Q6075-SE PTZ Camera The device interface Update user: Edit the user’s properties. Delete user: Delete the user. You can’t delete the root user. Anonymous users Allow anonymous viewers: Turn on to allow anyone to access the device as a viewer without having to log in with a user account.
  • Page 41 AXIS Q6075-SE PTZ Camera The device interface You can set up your device to notify recipients about events or send files. The list shows all the recipients currently configured in the product, along with information about their configuration. Note You can create up to 20 recipients.
  • Page 42 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 43 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management systems (VMS).
  • Page 44 AXIS Q6075-SE PTZ Camera The device interface Keep alive interval: The keep alive interval enables the client to detect when the server is no longer available without having to wait for the long TCP/IP timeout. Timeout: The time interval in seconds to allow a connect to complete. Default value: 60 Device topic prefix: Used in the default values for the topic in the connect message and LWT message on the MQTT client tab, and in the publication conditions on the MQTT publication tab.
  • Page 45 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share, since each device gets its own folder.
  • Page 46 AXIS Q6075-SE PTZ Camera The device interface Unmount: Click to unmount the network share. Mount: Click to mount the network share. Write protect: Turn on to stop writing to the network share and protect recordings from being removed. You can’t format a write-protected network share.
  • Page 47 AXIS Q6075-SE PTZ Camera The device interface Stream profiles A stream profile is a group of settings that affect the video stream. You can use stream profiles in different situations, for example when you create events and use rules to record.
  • Page 48 When you create an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. Add user: Click to add a new ONVIF user.
  • Page 49 Pairing Pairing allows you to use a compatible Axis network speaker or microphone as if it’s part of the camera. Once paired, the network speaker acts as an audio out device where you can play audio clips and transmit sound through the camera. The network microphone will take up sounds from the surrounding area and make it available as an audio input device, usable in media streams and recordings.
  • Page 50 AXIS Q6075-SE PTZ Camera The device interface Microphone pairing: Select to pair a microphone. Clear fields: Click to clear all fields. Connect: Click to establish connection to the speaker or microphone. Logs Reports and logs Reports • View the device server report: Click to show information about the product status in a pop-up window. The Access Log is automatically included in the Server Report.

  • Page 51: Maintenance

    The device interface CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device. This does not affect any of the current settings. Running applications restart automatically.

  • Page 52: Learn More

    Capture modes What capture mode to choose depends on the requirements for the frame rate and resolution of the specific surveillance setup. For specifications about available capture modes, see the product’s datasheet at axis.com. Privacy masks A privacy mask is a user-defined area that covers a part of the monitored area. In the video stream, privacy masks appear either as blocks of solid color or with a mosaic pattern.

  • Page 53: Streaming And Storage

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to older MPEG formats.

  • Page 54: Applications

    Applications With applications you can get more out of your Axis device. AXIS Camera Application Platform (ACAP) is an open platform that makes it possible for third parties to develop analytics and other applications for Axis devices. Applications can be preinstalled on the device, available for download for free, or for a license fee.
  • Page 55 2. Direct the camera view to the area you want to track, and click Add preset position to create a preset position. 3. Go to Apps > AXIS PTZ Autotracking. 4. Start and open the application. In the application interface:...
  • Page 56 AXIS Object Analytics AXIS Object Analytics is an analytic application that comes preinstalled on the camera. It detects objects that move in the scene and classifies them as, for example, humans or vehicles. You can set up the application to send alarms for different types of objects. To find out more about how the application works, see AXIS Object Analytics user manual.

  • Page 57: Security

    A tamper-protected environment for the protection of private keys and secure execution of cryptographic operations. It prevents unauthorized access and malicious extraction in the event of a security breach. Depending on security requirements, an Axis device can have either one or multiple hardware-based cryptographic computing modules, which provide a hardware-protected secure keystore.

  • Page 58: Specifications

    AXIS Q6075-SE PTZ Camera Specifications Specifications Product overview NOTICE TICE TICE Make sure the dome is attached in operation mode, otherwise focus may be affected. Dome Control button Status LED indicator SD card slot Part number (P/N) and serial number (S/N)

  • Page 59: Led Indicators

    O-ring Dome bracket screw T20 (4x) Dome O-ring Dome ring Dome ring screw T25 (4x) AXIS T8607 Media Converter Switch - external view Cover Network connector SFP (2x) Network connector RJ45 (2x) Camera network LED indicator Network LED indicator (4x)

  • Page 60: Sd Card Slot

    Don’t remove the SD card while the product is running. This device supports SD/SDHC/SDXC cards. For SD card recommendations, see axis.com. SD, SDHC, and SDXC Logos are trademarks of SD-3C LLC. SD, SDHC and SDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
  • Page 61 AXIS Q6075-SE PTZ Camera Specifications Function Notes Specifications DC ground 0 V DC DC output Can be used to power auxiliary equipment. 12 V DC Note: This pin can only be used as power out. Max load = 50 mA 3–6...
  • Page 62 AXIS Q6075-SE PTZ Camera Specifications Multicable connectors Multicable overview Power wire (red) Digital I/O wire (blue) Ethernet wire (green/white) Ethernet wire (green) Ethernet wire (orange/white) Ethernet wire (orange) Digital I/O wire (yellow) Ground wire (black) Power wire (red) 10 Ethernet wire foil shield (2x)

  • Page 63: Cleaning Recommendations

    AXIS Q6075-SE PTZ Camera Cleaning recommendations Cleaning recommendations If the device gets grease stains or becomes heavily soiled, you can clean it with mild, solvent-free soap or detergent. NOTICE TICE TICE Never use harsh detergent, for example gasoline, benzene, or acetone.

  • Page 64: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 65: Technical Issues, Clues And Solutions

    3. Go to Settings > System > Maintenance. Follow the instructions on the page. When the upgrade has finished, the product restarts automatically. Technical issues, clues and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support. Problems upgrading the firmware Firmware upgrade failure If the firmware upgrade fails, the device reloads the previous firmware.
  • Page 66 Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 67: Performance Considerations

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.
  • Page 68 User manual Ver. M6.3 AXIS Q6075-SE PTZ Camera Date: June 2023 © Axis Communications AB, 2020 - 2023 Part no. T10156643...
