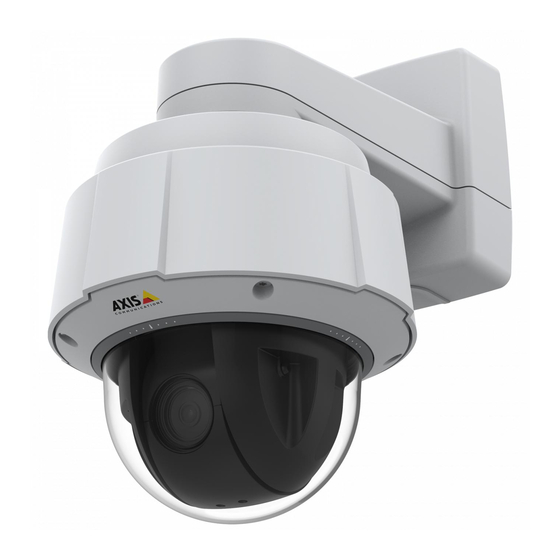

Axis Q6075-E User Manual
Ptz network camera
Hide thumbs
Also See for Q6075-E:
- User manual (66 pages) ,
- Installation manual (24 pages) ,
- Repainting instructions (10 pages)
Related Manuals for Axis Q6075-E
Summary of Contents for Axis Q6075-E
- Page 1 AXIS Q60-E Series AXIS Q6074-E PTZ Network Camera AXIS Q6075-E PTZ Network Camera D201-S XPT Q6075 Explosion-protected Camera User Manual...
-
Page 2: Table Of Contents
AXIS Q60-E Series Table of Contents Get started .......... -
Page 3: Get Started
Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support. - Page 4 Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.
-
Page 5: Webpage Overview
AXIS Q60-E Series Get started Webpage overview Live view control bar Live view Product name User information, color themes, and help Video control bar Settings toggle... - Page 6 AXIS Q60-E Series Get started Settings tabs...
-
Page 7: Additional Settings
AXIS Q60-E Series Additional settings Additional settings Adjust the image This section includes instructions about how to configure your device. If you want to learn more about how certain features function, go to Learn more on page 18. Adjust the focus faster with focus recall areas To save the focus settings at a specific pan/tilt range, add a focus recall area. - Page 8 AXIS Q60-E Series Additional settings Note If you set the shift to night mode to occur when it’s brighter, the image remains sharper as there will be less low-light noise. If you set the shift to occur when it’s darker, the image colors are maintained for longer, but there will be more image blur due to low-light noise.
- Page 9 3. To set the amount of WDR, select Low, Medium or High from the WDR level list. 4. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Verify the pixel resolution To verify that a defined part of the image contains enough pixels to, for example, recognize license plates, you can use the pixel counter.
- Page 10 AXIS Q60-E Series Additional settings To watch this video, go to the web version of this document. www.axis.com/products/online-manual/58170#t10106902 How to create a privacy mask 1. Go to Settings > Privacy mask. 2. Click New. 3. Adjust the size, color, and name of the privacy mask according to your needs.
- Page 11 How to show text overlay when the camera detects motion Make sure that AXIS Video Motion Detection is running: 1. Go to Settings > Apps > AXIS Video Motion Detection. 2. Start the application if it is not already running.
-
Page 12: Adjust The Camera View (Ptz)
AXIS Q60-E Series Additional settings 4. Choose appearance, text size, and alignment. 5. The current pan and tilt positions show up in the live view image and in the recording. Adjust the camera view (PTZ) To learn more about different pan, tilt, and zoom settings, see Pan, tilt, and zoom (PTZ) on page 20. -
Page 13: Set Up Rules And Alerts
AXIS Q60-E Series Additional settings 1. Go to live view and select H.264. 2. Go to Settings > Stream. 3. Do one or more of the following: Note The zipstream settings are used for both H.264 and H.265. Turn on dynamic GOP and set a high GOP length value. - Page 14 1. Go to Settings > System > Events and add a rule. 2. Type a name for the rule. 3. In the list of conditions, under Application, select AXIS Video Motion Detection (VMD). 4. In the list of actions, under Recordings, select Record video while the rule is active.
- Page 15 3. Create the zoomed-in preset position so that it covers the area in the image where you assume that the license plate will appear. Create a motion detection profile: 1. Go to Settings > Apps and open AXIS Video Motion Detection. 2. Create a profile that covers the entrance of the gate and then save the profile. Create a rule: 1.
- Page 16 AXIS Q60-E Series Additional settings 3. In the list of conditions, under Application, select the motion detection profile. 4. In the list of actions, under Preset positions, select Go to preset position. 5. Select a Video channel. 6. Select the Preset position.
- Page 17 AXIS Q60-E Series Additional settings Send an email automatically if someone spray paints the lens To watch this video, go to the web version of this document. www.axis.com/products/online-manual/58170#t10106687 How to send an email notification if someone spray paint the lens 1.
-
Page 18: Learn More
AXIS Q60-E Series Learn more Learn more Cleaning recommendations If the device gets grease stains or becomes heavily soiled, you can clean it with mild, solvent-free soap or detergent. NOTICE TICE TICE Never use harsh detergent, for example gasoline, benzene, or acetone. - Page 19 AXIS Q60-E Series Learn more Target bitrate Average bitrate (ABR) With average bitrate, the bitrate is automatically adjusted over a longer timescale. This is so you can meet the specified target and provide the best video quality based on your available storage. Bitrate is higher in scenes with a lot of activity, compared to static scenes.
-
Page 20: Capture Modes
Actual average bitrate Capture modes Capture mode defines the maximum frame rate available in the Axis product. Depending on which capture mode you select, you may not be able to use WDR. Which capture mode to choose depends on the requirements of frame rate and resolution for the specific surveillance setup. For specifications about available capture modes, see the product’s datasheet at axis.com. -
Page 21: Streaming And Storage
Stream tab. Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications. -
Page 22: Security
TPM module The TPM (Trusted Platform Module) is a component that provides cryptographic features to protect information from unauthorized access. It is always activated and there are no settings you can change. To learn more about TPM, go to axis.com/press-center/media-resources/white-papers. -
Page 23: Troubleshooting
Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track. -
Page 24: Technical Issues, Clues And Solutions
3. Go to Settings > System > Maintenance. Follow the instructions on the page. When the upgrade has finished, the product restarts automatically. Technical issues, clues and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support. Problems upgrading the firmware Firmware upgrade failure If the firmware upgrade fails, the device reloads the previous firmware. - Page 25 Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...
-
Page 26: Performance Considerations
Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Need more help? Useful links •... -
Page 27: Specifications
AXIS Q60-E Series Specifications Specifications Product overview Hook for safety wire Network connector (High PoE) Ground screw Unit holder (3x) Control button Status LED indicator Part number (P/N) and serial number (S/N) Power button Heater 10 Dome 11 SD card slot... -
Page 28: Led Indicators
This product supports SD/SDHC/SDXC cards. For SD card recommendations, see axis.com. SD, SDHC, and SDXC Logos are trademarks of SD-3C LLC. SD, SDHC and SDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both. - Page 29 User Manual Ver. M6.2 AXIS Q60-E Series Date: May 2021 © Axis Communications AB, 2019 - 2020 Part No. T10142949...
