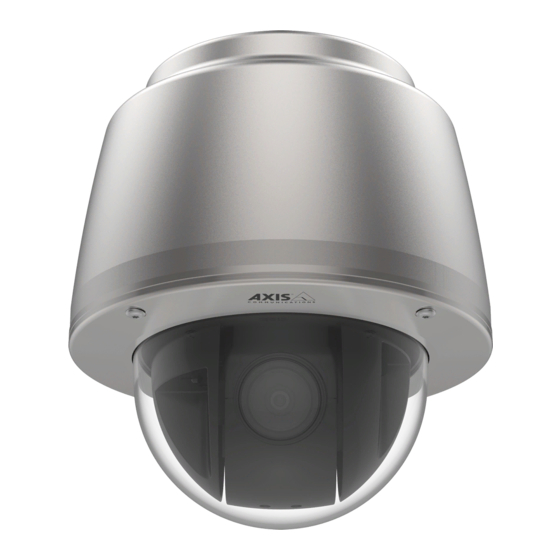

AXIS Q6075-SE PTZ Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q6075-SE and is the answer not in the manual?

Questions and answers

Related Manuals for Axis Q6075-SE

Summary of Contents for Axis Q6075-SE

  • Page 1 AXIS Q6075-SE PTZ Camera User Manual...

  • Page 2: Table Of Contents

    AXIS Q6075-SE PTZ Camera Table of Contents Get started ..........

  • Page 3: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.
  • Page 4 Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.

  • Page 5: Webpage Overview

    AXIS Q6075-SE PTZ Camera Get started Webpage overview Live view control bar Live view Product name User information, color themes, and help Video control bar Settings toggle...
  • Page 6 AXIS Q6075-SE PTZ Camera Get started Settings tabs...

  • Page 7: Additional Settings

    AXIS Q6075-SE PTZ Camera Additional settings Additional settings Adjust the image This section includes instructions about how to configure your device. If you want to learn more about how certain features function, go to Learn more on page 19. Adjust the focus faster with focus recall areas To save the focus settings at a specific pan/tilt range, add a focus recall area.
  • Page 8 AXIS Q6075-SE PTZ Camera Additional settings Note If you set the shift to night mode to occur when it’s brighter, the image remains sharper as there will be less low-light noise. If you set the shift to occur when it’s darker, the image colors are maintained for longer, but there will be more image blur due to low-light noise.
  • Page 9 3. To set the amount of WDR, select Low, Medium or High from the WDR level list. 4. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Verify the pixel resolution To verify that a defined part of the image contains enough pixels to, for example, recognize license plates, you can use the pixel counter.
  • Page 10 AXIS Q6075-SE PTZ Camera Additional settings To watch this video, go to the web version of this document. www.axis.com/products/online-manual/67691#t10106902 How to create a privacy mask 1. Go to Settings > Privacy mask. 2. Click New. 3. Adjust the size, color, and name of the privacy mask according to your needs.
  • Page 11 How to show text overlay when the camera detects motion Make sure that AXIS Video Motion Detection is running: 1. Go to Settings > Apps > AXIS Video Motion Detection. 2. Start the application if it is not already running.

  • Page 12: Adjust The Camera View (Ptz)

    AXIS Q6075-SE PTZ Camera Additional settings Type #y to show the tilt position. 4. Choose appearance, text size, and alignment. 5. The current pan and tilt positions show up in the live view image and in the recording. Add street names and compass direction to the image Note The street name and compass direction will be visible on all video streams and recordings.

  • Page 13: View And Record Video

    AXIS Q6075-SE PTZ Camera Additional settings Create a guard tour with preset positions A guard tour displays the video stream from different preset positions either in a predetermined or random order, and for configurable periods of time. 1. Go to Settings > PTZ > Guard tours.

  • Page 14: Set Up Rules And Alerts

    AXIS Q6075-SE PTZ Camera Additional settings Note Web browsers do not support H.265 decoding. Use a video management system or application supporting H.265 decoding. Set up network storage To store recordings on the network, you need to set up your network storage.
  • Page 15 1. Go to Settings > System > Events and add a rule. 2. Type a name for the rule. 3. In the list of conditions, under Application, select AXIS Video Motion Detection (VMD). 4. In the list of actions, under Recordings, select Record video while the rule is active.
  • Page 16 3. Create the zoomed-in preset position so that it covers the area in the image where you assume that the license plate will appear. Create a motion detection profile: 1. Go to Settings > Apps and open AXIS Video Motion Detection. 2. Create a profile that covers the entrance of the gate and then save the profile. Create a rule: 1.
  • Page 17 AXIS Q6075-SE PTZ Camera Additional settings Record video when the camera detects impact Shock detection allows the camera to detect tampering caused by vibrations or shock. Vibrations due to the environment or to an object can trigger an action depending on the shock sensitivity range, which can be set from 0 to 100. In this scenario, someone is throwing rocks at the camera after hours and you would like to get a video clip of the event.

  • Page 18: Cleaning Recommendations

    AXIS Q6075-SE PTZ Camera Cleaning recommendations Cleaning recommendations If the device gets grease stains or becomes heavily soiled, you can clean it with mild, solvent-free soap or detergent. NOTICE TICE TICE Never use harsh detergent, for example gasoline, benzene, or acetone.

  • Page 19: Learn More

    For information about how to install the media converter see the Installation Guide for this product. Capture modes Capture mode defines the maximum frame rate available in the Axis product. Depending on which capture mode you select, you may not be able to use WDR.

  • Page 20: Streaming And Storage

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard.

  • Page 21: Applications

    Target bitrate Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications. To find the user manuals for Axis applications, go to axis.com.

  • Page 22: Security

    TPM module The TPM (Trusted Platform Module) is a component that provides cryptographic features to protect information from unauthorized access. It is always activated and there are no settings you can change. To learn more about TPM, go to axis.com/press-center/media-resources/white-papers.

  • Page 23: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 24: Technical Issues, Clues And Solutions

    3. Go to Settings > System > Maintenance. Follow the instructions on the page. When the upgrade has finished, the product restarts automatically. Technical issues, clues and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support. Problems upgrading the firmware Firmware upgrade failure If the firmware upgrade fails, the device reloads the previous firmware.
  • Page 25 Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 26: Performance Considerations

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.

  • Page 27: Specifications

    AXIS Q6075-SE PTZ Camera Specifications Specifications Product overview NOTICE TICE TICE Make sure the dome is attached in operation mode, otherwise focus may be affected. Dome Control button Status LED indicator SD card slot Part number (P/N) and serial number (S/N)

  • Page 28: Led Indicators

    O-ring Dome bracket screw T20 (4x) Dome O-ring Dome ring Dome ring screw T25 (4x) AXIS T8607 Media Converter Switch - external view Cover Network connector SFP (2x) Network connector RJ45 (2x) Camera network LED indicator Network LED indicator (4x)

  • Page 29: Sd Card Slot

    This product supports SD/SDHC/SDXC cards. For SD card recommendations, see axis.com. SD, SDHC, and SDXC Logos are trademarks of SD-3C LLC. SD, SDHC and SDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
  • Page 30 AXIS Q6075-SE PTZ Camera Specifications Function Notes Specifications DC ground 0 V DC DC output Can be used to power auxiliary equipment. 12 V DC Note: This pin can only be used as power out. Max load = 50 mA 3–6...
  • Page 31 AXIS Q6075-SE PTZ Camera Specifications Multicable connectors Multicable overview Power wire (red) Digital I/O wire (blue) Ethernet wire (green/white) Ethernet wire (green) Ethernet wire (orange/white) Ethernet wire (orange) Digital I/O wire (yellow) Ground wire (black) Power wire (red) 10 Ethernet wire foil shield (2x)
  • Page 32 User Manual Ver. M3.2 AXIS Q6075-SE PTZ Camera Date: August 2021 © Axis Communications AB, 2020 - 2021 Part No. T10156643...
