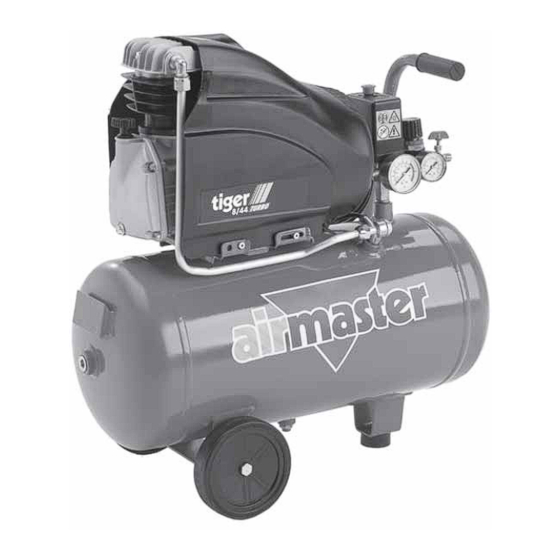

- Page 1 TIGER 8/44 AIR COMPRESSOR OPERATION & MAINTENANCE INSTRUCTIONS 1210...
-
Page 2: Guarantee
Thank you for purchasing this AIRMASTER Air Compressor which is fitted with a 24 litre air receiver. Please read this leaflet thoroughly and carefully follow all instructions. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to the compressor giving you long and satisfactory service. -
Page 3: Table Of Contents
CONTENTS PAGE Guarantee ..................2 Specifications ................... 2 Contents ................... 3 Safety Precautions ................4 Warning Symbols ................9 Electrical Connections ..............10 Parts Identification ................11 Assembly ..................12 Preperation for use ................14 Operating instructions ..............16 Routine Maintenance ............... 20 Troubleshooting ................ -
Page 4: Safety Precautions
SAFETY PRECAUTIONS WARNING As with all machinery, there are certain hazards involved with their operation and use. Exercising respect and caution will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked, or ignored, personal injury to the operator, or damage to property may result. It is in your own interest to read and pay attention to the following rules: WARNING! When using the air compressor, you should follow basic safety precautions... - Page 5 SAFETY PRECAUTIONS TRAINING: Prior to use all operators should become familiar with the instructions in this booklet. In particular, become familiar with the ON/OFF control for emergency stopping. ALWAYS WEAR EYE PROTECTION: When operating the air compressor, always wear eye protection, and make sure that other people in the work area are also wearing eye protection.
- Page 6 SAFETY PRECAUTIONS STORE THE AIR COMPRESSOR PROPERLY: When not in use the air compressor should be stored in a secure, dry place out of the reach of children. Always lock up the storage area. PROTECT YOUR HEARING: Ear protection should be worn when operating this compressor.
- Page 7 SAFETY PRECAUTIONS KEEP ALL SCREWS AND COVERS TIGHTLY IN PLACE: Check the screws and covers periodically. ADEQUATE VENTILATION: The compressor should only be used in areas with adequate ventilation and should not be exposed to heat, or used near inflammable substances. NEVER USE AN AIR COMPRESSOR WHICH APPEARS DEFECTIVE OR IS OPERATING ABNORMALLY: If the compressor operates unusually or makes strange noises, switch off immediately and purge the air tank.
- Page 8 SAFETY PRECAUTIONS NEVER STOP THE COMPRESSOR BY REMOVING THE PLUG OR SWITCHING OFF AT THE MAINS SUPPLY: Always use the On/Off switch on the compressor. NEVER OPERATE WITHOUT ALL GUARDS IN PLACE: Never operate without all guards or safety features in place and in proper working order. NEVER OPERATE IN THE PRESENCE OF FLAMMABLE LIQUIDS OR GASES: The air compressor produces sparks during operation.
-
Page 9: Warning Symbols
WARNING SYMBOLS READ THIS INSTRUCTION BOOKLET CAREFULLY BEFORE POSITIONING, OPERATING OR ADJUSTING THE COMPRESSOR. Risk of electric shock. The compressor must be disconnected from the mains supply before removing any covers. Do not use in a damp environment. Risk of accidental start-up. The compressor could start automatically in the event of a power cut and subsequent reset. -
Page 10: Electrical Connections
ELECTRICAL CONNECTIONS Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. WARNING! THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Green &... -
Page 11: Parts Identification
PARTS IDENTIFICATION Motor housing Drain valve On/Off switch (red button) 10 Compressed air reservoir Main reservoir pressure gauge 11 Transportation wheel Output pressure regulator 12 Data plate Regulator locking ring 13 Pressure regulator and cut-out Output pressure gauge 14 Oil dipstick Handle 15 Outlet tap Support foot... -
Page 12: Assembly
ASSEMBLY WARNING! Before assembling and using the air compressor, make sure that you have read and understood all of the safety instructions. Installation Take care when lifting the compressor from the packaging. CAUTION! Do not lift the compressor by the pressure regulator and cut-out. Get assistance if necessary. - Page 13 ASSEMBLY Locating the air compressor This compressor should be positioned on a stable, flat surface (or one with a maximum inclination of 15 ), See figure 4, and ensure it is completely stable. Do not cover or box in the compressor. Always position it at least 50cm from any obstacle or wall Make sure the compressor has good all...
-
Page 14: Preperation For Use
PREPARING FOR USE Before connecting your compressor to the mains supply, check the following:- • The mains voltage is 230V. • The ON/OFF switch (2) is in the OFF (lower) position. • The pressure regulator (5) should be set at its lowest setting, i.e. turned fully anticlockwise. - Page 15 PREPARING FOR USE Before connecting your compressor to the mains supply, Check the Oil Lift the dipstick out of the oil reservoir. Figure 7 Ensure the oil level is between the min and max marks on the dipstick. • If needed top up the reservoir using suitable oil, taking care not to exceed the maximum mark.
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS Switching the air compressor ON The compressor will make a continuous loud noise when the tank is charging - this is normal. Lift the red On/Off switch located on top of the air compressor to switch the compressor ON. •... - Page 17 OPERATING INSTRUCTIONS The illustration below shows the pressure regulator locked at 6 bar. • Never set the pressure higher than the rated pressure of the attachments being used, as there is a risk of bursting and resultant injury. To increase the output pressure from this preset value you will need to intentionally loosen the locking ring.
- Page 18 OPERATING INSTRUCTIONS Switching the air compressor off To switch the air compressor off, 1. Close the outlet tap and press down the on/off switch (red button) located on top of the air compressor. 2. Switch off the mains supply and remove the plug. •...
- Page 19 OPERATING INSTRUCTIONS Draining the reservoir Caution! It is important to drain the reservoir before storage. Switch the air compressor off, by pressing down the red on/off button, and remove the plug from the mains supply. • Place a suitable container beneath the compressor to catch any condensate.
-
Page 20: Routine Maintenance
ROUTINE MAINTENANCE IMPORTANT: Before carrying out any maintenance, always disconnect the compressor from the mains supply, drain the air receiver and, if necessary, allow the machine to cool down before starting work. Daily Check Oil Ensure the oil level is between the min and max marks on the dipstick. See page 14 and top-up if necessary - (use Clarke SAE40 compressor oil, available from your local dealer). - Page 21 ROUTINE MAINTENANCE Every six months Make sure that all bolts are securely tightened. Clean all the external parts of the compressor. After the first 100 hours use, replace the oil completely using Clarke SAE40 compressor oil. Then replace the oil after every 500 hours of operation or every 6 months.
-
Page 22: Troubleshooting
TROUBLE SHOOTING With considerate use, your AIRMASTER Air Compressor should provide you with long and trouble free service. Routine checks should be made on both the electrical supply as well as on all the compressed air lines and connections. If any fault appears, the reason for which is not immediately obvious, we recommend that you contact Machine Mart. -
Page 23: Spare Parts And Services
SPARE PARTS AND SERVICE For spare parts and service, please contact your nearest dealer, or Machine Mart, on one of the following numbers. PARTS TEL: ....... 0115 956 1805 SERVICE TEL:......0115 956 1809 CUSTOMER CARE LINE: ..0115 956 1810 OR: ......... -
Page 24: Parts Diagram
PARTS DIAGRAM... -
Page 25: Parts List
PARTS LIST NO. DESCRIPTION PART NO. NO. DESCRIPTION PART NO. TANK FN168HQ1000 SCREW M6X10 FN014013024 TAPPING SCREW FN014013042 O-RING FN010072000 WASHER FN014005006 SCREW FN130203179 WHEEL SPINDLE FN168HQ0004 OIL DIPSTICK FN012043000 WHEEL FN020188000 CASING COVER FN016120003 FN014003005 CASING COVER GASKET FN116120030 DRAIN VALVE FN022021000 CRANKSHAFT...
