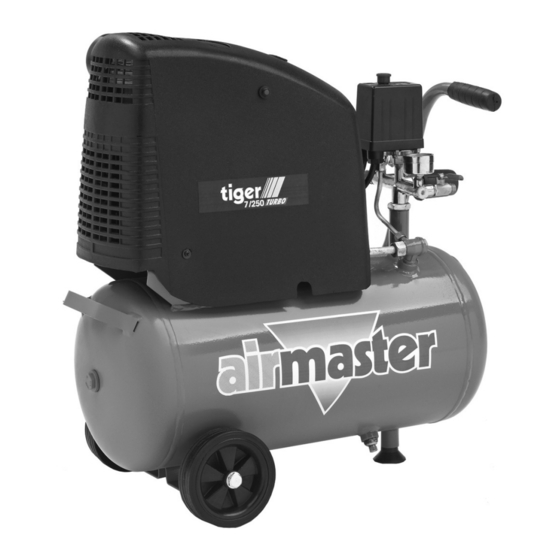

24L OIL FREE AIR COMPRESSOR
MODEL NO: TIGER 7-250
PART NO: 2244030
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC1020 - REV 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIGER 7-250 and is the answer not in the manual?

Questions and answers

Summary of Contents for airmaster TIGER 7-250

  • Page 1 24L OIL FREE AIR COMPRESSOR MODEL NO: TIGER 7-250 PART NO: 2244030 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1020 - REV 6...
  • Page 2: Specification

    INTRODUCTION Thank you for purchasing this Air Compressor. Before attempting to operate the machine, it is essential that you read this manual thoroughly and carefully follow all instructions given. In doing so you will ensure the safety of yourself and that of others around you, and you can also look forward to the product giving you long and satisfactory service.
  • Page 3: General Safety Warnings

    GENERAL SAFETY WARNINGS WARNING: WHEN USING ELECTRICAL TOOLS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY WARNING: READ ALL THESE INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS PRODUCT AND KEEP THESE INSTRUCTIONS IN A SAFE PLACE. WORK AREA 1.
  • Page 4 GENERAL MACHINE USE AND CARE 1. Prior to use, all operators should become familiar with the instructions in this booklet especially the ON/OFF switch for emergency stopping. 2. ALWAYS maintain the compressor with care and keep it clean for best / safest performance.
  • Page 5 AIR COMPRESSOR SAFETY INSTRUCTIONS 1. ONLY USE WITHIN THE RECOMMENDED OPERATING TEMPERATURE RANGE: This compressor should only be used in an ambient temperature of between +5 C and +40 C (never at or below freezing temperatures). 2. NEVER USE AN AIR COMPRESSOR WHICH APPEARS DEFECTIVE OR IS OPERATING ABNORMALLY: If the compressor operates unusually or makes strange noises, switch off immediately and purge the air reservoir.
  • Page 6: Safety Symbols

    SAFETY SYMBOLS The following safety symbols are shown on the product or it’s packaging. Please read all of the safety and operating instructions carefully before use. Read this instruction booklet carefully before positioning, operating or adjusting the compressor. This compressor produces a high sound level during operation. Ear protection should be worn.
  • Page 7: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz.
  • Page 8: Attach The Wheels

    ASSEMBLY ATTACH THE WHEELS Use a spanner to attach the wheels to the compressor. Use the washers and spring washer in the positions shown. ATTACH THE SUPPORT FEET Insert the support feet into the position shown. FIT THE AIR FILTER 1.
  • Page 9: Before Use

    BEFORE USE Before connecting your compressor to the power supply, check the following:- • Set the ON/OFF switch to the OFF position (pushed down). • Make sure that the compressor is on level ground. • Make sure that the supply voltage matches the voltage shown on the data label.
  • Page 10: Operation

    OPERATION If the compressor has not been used for more then 24 hours, open the drain valve (on the bottom of the reservoir) and drain any condensate which has collected. See page 13. ATTACHING AIR TOOLS WARNING: BEFORE CONNECTING AIR TOOLS, MAKE SURE THAT YOU READ THE INSTRUCTIONS SUPPLIED WITH THE TOOL, ALSO ENSURE THAT THE TOOL IS SUITABLE FOR USE WITH THE COMPRESSOR AND HOSE SPECIFICATIONS.
  • Page 11: Check The Safety Valve

    CHECK THE SAFETY VALVE To make sure that the safety valve works correctly: 1. Unscrew the knurled end and pull it firmly outwards. • Air will be released when you pull the cap out and stop when released. 2. If the valve does not operate in this way, do not use the compressor.
  • Page 12: Turning The Compressor Off

    REMOVING AIR DRIVEN TOOLS FROM THE AIR HOSE WARNING: ALWAYS SET THE PRESSURE REGULATOR TO ZERO BEFORE YOU REMOVE OR REPLACE A TOOL. 1. Push down on the On/Off button to stop the compressor. 2. Turn the outlet valve handle to the off position.
  • Page 13: Draining The Reservoir

    DRAINING THE RESERVOIR CAUTION: YOU MUST DRAIN THE RESERVOIR AFTER EACH DAYS USE AND BEFORE YOU PUT YOUR COMPRESSOR INTO STORAGE 1. Turn the compressor off and disconnect from the power supply. 2. Put a container below the drain valve to collect the condensate. 3.
  • Page 14: Maintenance

    MAINTENANCE DRAIN THE RESERVOIR (DAILY) After use, always open the drain valve to make sure that any condensate is drained off. CLEAN THE AIR FILTER (MONTHLY) The air filter must be examined monthly, more often in dusty conditions, 1. Remove the filter from the compressor.
  • Page 15: Check The Non-Return Valve (Every 6 Months)

    CHECK THE NON-RETURN VALVE (EVERY 6 MONTHS) If the reservoir pressure decreases for no apparent reason, it is possible that the non-return valve is leaking. To check, 1. Make sure that the reservoir is not under pressure and the compressor is switched OFF. 2.
  • Page 16: Troubleshooting

    TROUBLESHOOTING CAUTION: DO NOT TRY TO REPAIR OR ADJUST THIS COMPRESSOR IF YOU ARE UNCERTAIN OF YOUR ABILITY. IF YOU HAVE ANY QUERIES, CONTACT YOUR DEALER. PROBLEM PROBABLE CAUSE REMEDY The compressor Bad electrical 1. Check electrical has stopped connections. connections.
  • Page 17: Declaration Of Conformity

    DECLARATION OF CONFORMITY...
  • Page 18: Component Parts

    COMPONENT PARTS Description Description Bolt M6×25 Spring Washer Bolt M6×35 Nut M3 Spring Washer Capacitor...
  • Page 19 Cylinder Head Tooth Washer 8 O Ring Screw St3.9x12 Valve Plate assembly Washer 4 Cylinder Seals Discharge Tube Cylinder Elbow Connector Connection Stud Air Filter Screw M5×16 Fan Cover Connecting Rod Cover Big Washer 8 Piston Ring Screw Connecting Rod Base Board Bolt M6×16 Bolt M8×25...
