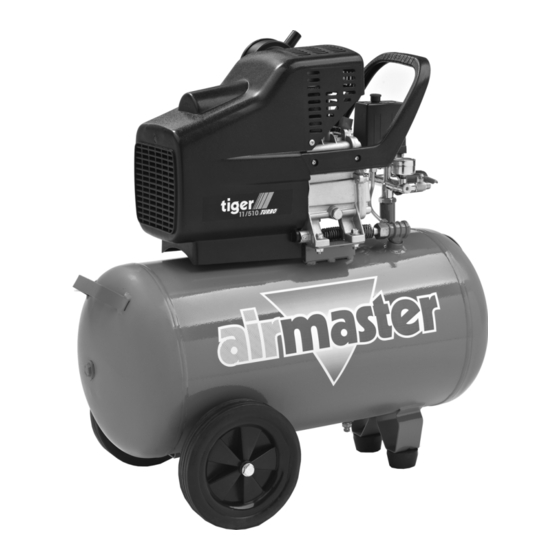

- Page 1 50L AIR COMPRESSOR MODEL NO: TIGER 11/510 PART NO: 2244015 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS LS0620 - ISS 6...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Before using your compressor it is in your own interest to read and pay attention to the following safety rules. 1. Compressed air is dangerous. Do not point a jet of air at persons or animals, and do not discharge compressed air against the skin. -
Page 4: Safety Symbols
SAFETY SYMBOLS Read this instruction booklet carefully before positioning, operating or adjusting the compressor. Risk of electric shock. The compressor must be disconnected from the mains supply before removing any covers. Do not use in a damp environment. Risk of accidental start-up. The compressor could start automatically in the event of a power cut and subsequent reset. -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. -
Page 6: Attach The Wheels
ASSEMBLY ATTACH THE WHEELS Use a spanner to attach the wheels to the compressor. Use the washers and spring washer in the positions shown. ATTACH THE SUPPORT FEET Insert the support feet into the position shown. FIT THE AIR FILTER 1. -
Page 7: Fit The Oil Filler Cap
FIT THE OIL FILLER CAP 1. Remove the travel plug. 2. Insert the oil filler cap. MOVING THE AIR COMPRESSOR CAUTION: TO PREVENT INJURY, GET ASSISTANCE WHEN LIFTING THIS COMPRESSOR. • Stop the compressor and disconnect it from the power supply before you move it. -
Page 8: Before Use
BEFORE USE Before connecting your compressor to the power supply, check the following:- • Set the ON/OFF switch to the OFF position (pushed down). • Make sure that the compressor is on level ground. • Make sure that the supply voltage matches the voltage shown on the data label. -
Page 9: Operation
OPERATION If the compressor has not been used for more then 24 hours, open the drain valve (on the bottom of the reservoir) and drain any condensate which has collected. See page 11 ATTACHING AIR TOOLS WARNING: BEFORE CONNECTING AIR TOOLS, MAKE SURE THAT YOU READ THE INSTRUCTIONS SUPPLIED WITH THE TOOL, ALSO ENSURE THAT THE TOOL IS SUITABLE FOR USE WITH THE COMPRESSOR AND HOSE SPECIFICATIONS. -
Page 10: Set The Output Pressure
SET THE OUTPUT PRESSURE When viewed from the front, the left hand outlet valve is adjustable. The right hand outlet valve will only supply the full reservoir pressure and is not adjustable. 1. Use the pressure regulator to set the output pressure of the left hand outlet valve. -
Page 11: Turning The Compressor Off
2. Turn the outlet valve handle to the off position. 3. Operate the tool to depressurise the air hose. 4. Disconnect the tool from the hose. TURNING THE COMPRESSOR OFF 1. Follow steps 1-3 in “Removing Tools From The Air Hose” above. 2. -
Page 12: Reset Button
RESET BUTTON This compressor has a thermal overload device. If the motor gets too hot, the thermal overload device cuts the power which prevents damage to the motor. If the thermal overload device operates, let the motor cool down for 5 minutes and push the reset button. -
Page 13: Maintenance
MAINTENANCE CHECKING THE OIL LEVEL (DAILY) 1. Make sure that the oil level is half way up the oil sight glass. 2. If not, remove the oil cap and add oil to the reservoir. • Only use SAE30 compressor oil, available from your dealer. -
Page 14: Check The Non-Return Valve (Every 6 Months)
CHECK THE NON-RETURN VALVE (EVERY 6 MONTHS) If the reservoir pressure decreases for no apparent reason, it is possible that the non-return valve is leaking. To check, 1. Make sure that the reservoir is not under pressure and the compressor is switched OFF. 2. -
Page 15: Troubleshooting
TROUBLESHOOTING CAUTION: DO NOT TRY TO REPAIR OR ADJUSTMENT IF YOU ARE UNCERTAIN. IF YOU HAVE ANY QUERIES, CONTACT YOUR DEALER. PROBLEM PROBABLE CAUSE REMEDY The compressor Bad electrical connections. 1. Check electrical connections. has stopped and 2. Clean and tighten if necessary. does not start. -
Page 16: Exploded Diagram
EXPLODED DIAGRAM... -
Page 17: Parts List
PARTS LIST DESCRIPTION DESCRIPTION Air tank Bolt M8x110 Discharge pipe Cylinder head Motor Cylinder head gasket Bearing 6202 RS Valve plate Motor bracket Valve gasket Bolt M5x105 Cylinder Cylinder gasket Circlip Piston ring Bearing 6204 RS Piston Sealing ring Cilrclip Capacitance Connecting rod Nut M8... -
Page 18: Declaration Of Conformity
DECLARATION OF CONFORMITY... - Page 19 DECLARATION OF CONFORMITY...
