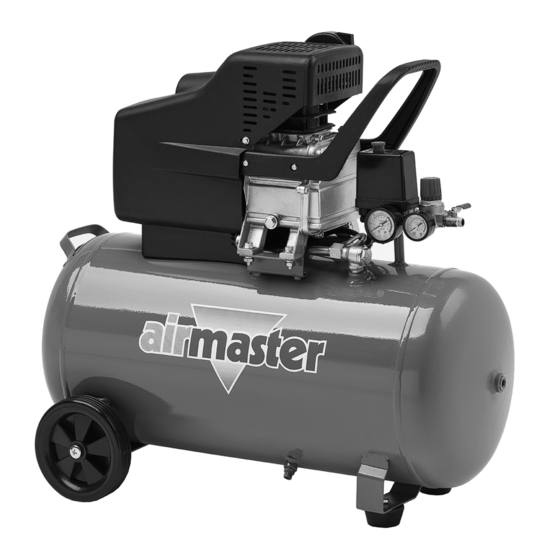

50L AIR COMPRESSOR
MODEL NO: TIGER 11/550
PART NO: 1499505
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC0622 - ISS 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIGER 11/550 and is the answer not in the manual?

Questions and answers

Summary of Contents for airmaster TIGER 11/550

  • Page 1 50L AIR COMPRESSOR MODEL NO: TIGER 11/550 PART NO: 1499505 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0622 - ISS 4...
  • Page 2: Environmental Recycling Policy

    INTRODUCTION Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you and you can look forward to your purchase giving you long and satisfactory service.
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Before using your compressor it is in your own interest to read and pay attention to the following safety rules. 1. Compressed air is dangerous. Do not point a jet of air at persons or animals and do not discharge compressed air against the skin.
  • Page 4: Safety Symbols

    SAFETY SYMBOLS Read this instruction booklet carefully before positioning, operating or adjusting the compressor. This compressor contains surfaces which may reach a high temperature during operation. Never operate with the motor housing removed. Wear safety goggles when using this compressor Wear ear protectors when using this compressor This compressor produces a high sound level during operation.
  • Page 5: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below.
  • Page 6: Attach The Wheels

    ASSEMBLY ATTACH THE WHEELS Use a spanner to attach the wheels to the compressor. Use the washers and spring washer in the positions shown. ATTACH THE FEET Insert the feet into the position shown. ATTACH THE AIR FILTER 1. Screw the air filter into position. •...
  • Page 7: Install The Oil Breather Cap

    INSTALL THE OIL BREATHER CAP 1. Remove the travel plug. 2. Insert the oil breather cap. MOVING THE AIR COMPRESSOR CAUTION: THE COMPRESSOR IS HEAVY AND REQUIRES TWO PEOPLE TO LIFT SAFELY. • Stop the compressor and disconnect it from the power supply before you move it.
  • Page 8: Before Use

    BEFORE USE Before you connect your compressor to the power supply, check the following:- • Set the ON/OFF switch to the OFF position (pushed down). • Make sure that the compressor is on level ground. • Make sure that the supply voltage matches the voltage shown on the data label.
  • Page 9: Operation

    OPERATION If the compressor has not been used for more than 24 hours, open the drain valve (on the bottom of the tank) and drain any condensate which has collected. See page 12. ATTACHING AIR TOOLS WARNING: BEFORE CONNECTING AIR TOOLS, MAKE SURE THAT YOU READ THE INSTRUCTIONS SUPPLIED WITH THE TOOL, ALSO ENSURE THAT THE TOOL IS SUITABLE FOR USE WITH THE COMPRESSOR AND HOSE SPECIFICATIONS.
  • Page 10: Check The Safety Valve

    CHECK THE SAFETY VALVE To make sure that the safety valve works correctly: 1. Unscrew the knurled end and pull it firmly outwards. • Air will be released when you pull the cap out and stop when released. 2. If the valve does not operate, do not use the compressor.
  • Page 11: Remove Tools From The Air Hose

    REMOVE TOOLS FROM THE AIR HOSE WARNING: ALWAYS SET THE PRESSURE REGULATOR TO ZERO BEFORE YOU REMOVE OR REPLACE A TOOL. 1. Push down on the On/Off button to stop the compressor. 2. Turn the outlet valve handle to the closed position.
  • Page 12: Draining The Tank

    DRAINING THE TANK CAUTION: YOU MUST DRAIN THE MOISTURE FROM THE TANK AFTER EACH DAYS USE AND BEFORE YOU PUT YOUR COMPRESSOR INTO STORAGE. 1. Turn the compressor off and disconnect from the power supply. 2. Slowly open one of the outlet valves to depressurise the tank.
  • Page 13: Maintenance

    MAINTENANCE CHECKING THE OIL LEVEL (DAILY) 1. Make sure that the oil level is half way up the oil sight glass. 2. If not, remove the oil breather cap and add oil to the reservoir. • Only use SAE30 compressor oil, available from your dealer.
  • Page 14: Check The Non-Return Valve (Every 6 Months)

    CHECK THE NON-RETURN VALVE (EVERY 6 MONTHS) If the tank pressure decreases for no apparent reason, it is possible that the non-return valve is leaking. To check, 1. Make sure that the tank is not under pressure and the compressor is switched OFF. 2.
  • Page 15: Specifications

    SPECIFICATIONS Max Pressure 8 Bar Voltage 230 VAC (50Hz) Air Displacement 9.3 CFM Receiver Capacity 50 L Fuse Rating 13 A Dimensions (L x W x H) 740 x 330 x 650 mm Guaranteed Sound Power Level 97 dB(A) Weight 31 kg Please note that the details and specifications contained herein, are correct at the time of going to print.
  • Page 16: Troubleshooting

    TROUBLESHOOTING CAUTION: DO NOT TRY TO REPAIR OR ADJUSTMENT IF YOU ARE UNCERTAIN. IF YOU HAVE ANY QUERIES, CONTACT YOUR DEALER. PROBLEM PROBABLE CAUSE REMEDY The compressor Bad electrical connec- 1. Check electrical has stopped tions. connections. and does not 2.
  • Page 17: Component Parts

    COMPONENT PARTS...
  • Page 18: Component Parts List

    COMPONENT PARTS LIST Crankcase Cylinder Head Air Reservoir Crankshaft Flat Washer Hole Plug Connecting rod Spring Washer Drain Valve Screw Bolt Gasket Elbow Flat Washer Crankcase cover Sping Washer Sightglass oil seal Capacitor Foot Sightglass Overload Protector Screw Screw Flat Washer Oil breather Spring Washer Flat Washer...
  • Page 19: Declaration Of Conformity

    DECLARATION OF CONFORMITY...
