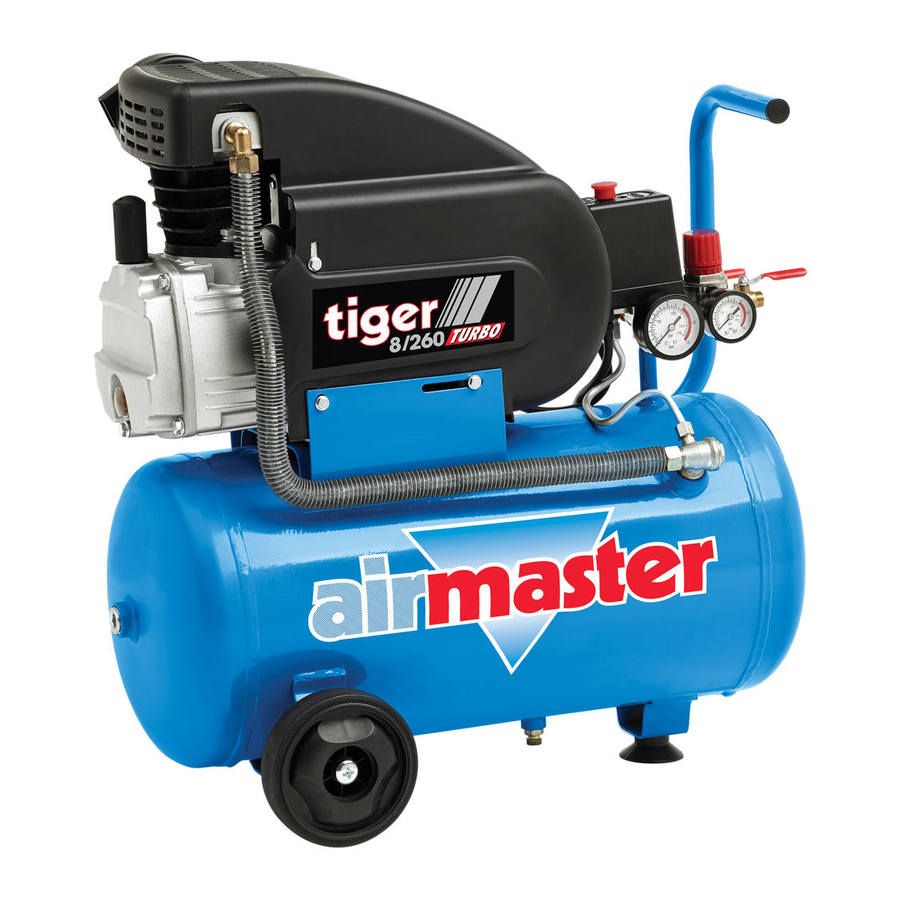

24L AIR COMPRESSOR
MODEL NO: TIGER 8/260
PART NO: 1499490
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC1120 - ISS 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIGER 8/260 and is the answer not in the manual?

Questions and answers

Summary of Contents for airmaster TIGER 8/260

  • Page 1 24L AIR COMPRESSOR MODEL NO: TIGER 8/260 PART NO: 1499490 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1120 - ISS 4...
  • Page 2: Technical Data

    INTRODUCTION Thank you for purchasing this Air Compressor. Before attempting to operate the machine, it is essential that you read this manual thoroughly and carefully follow all instructions given. In doing so you will ensure the safety of yourself and that of others around you, and you can also look forward to the product giving you long and satisfactory service TECHNICAL DATA.
  • Page 3: General Safety Warnings

    GENERAL SAFETY WARNINGS WARNING: WHEN USING ELECTRICAL TOOLS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY WARNING: READ ALL THESE INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS PRODUCT AND KEEP THESE INSTRUCTIONS IN A SAFE PLACE. WORK AREA 1.
  • Page 4 GENERAL MACHINE USE AND CARE 1. Prior to use, all operators should become familiar with the instructions in this booklet especially the ON/OFF switch for emergency stopping. 2. ALWAYS maintain the compressor with care and keep it clean for best / safest performance.
  • Page 5 AIR COMPRESSOR SAFETY INSTRUCTIONS 1. ONLY USE WITHIN THE RECOMMENDED OPERATING TEMPERATURE RANGE: This compressor should only be used in an ambient temperature of between +5 C and +40 C (never at or below freezing temperatures). 2. NEVER USE AN AIR COMPRESSOR WHICH APPEARS DEFECTIVE OR IS OPERATING ABNORMALLY: If the compressor operates unusually or makes strange noises, switch off immediately and purge the air reservoir.
  • Page 6: Safety Symbols

    SAFETY SYMBOLS The following safety symbols are shown on the product or it’s packaging. Please read all of the safety and operating instructions carefully before use. Read this instruction booklet carefully before positioning, operating or adjusting the compressor. This compressor produces a high sound level during operation. Ear protection should be worn.
  • Page 7: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz.
  • Page 8: Attach The Wheels

    ASSEMBLY ATTACH THE WHEELS Use a suitable spanner and screwdriver to attach the wheels to the compressor. • Use the washers and spring washer in the positions shown. ATTACH THE SUPPORT FEET Insert the support feet into the position shown. Use a suitable spanner and screwdriver to attach each foot to the compressor.
  • Page 9: Install The Oil Breather Cap

    INSTALL THE OIL BREATHER CAP 1. Remove the travel plug. 2. Insert the oil breather cap. MOVING THE AIR COMPRESSOR CAUTION: TO PREVENT INJURY, GET ASSISTANCE WHEN LIFTING THIS COMPRESSOR. 1. Stop the compressor and disconnect it from the power supply before you move it.
  • Page 10: Before Use

    BEFORE USE Before connecting your compressor to the power supply, check the following:- • Set the ON/OFF switch to the OFF position (pushed down). • Make sure that the compressor is on level ground. • Make sure that the supply voltage matches the voltage shown on the data label.
  • Page 11: Operation

    OPERATION If the compressor has not been used for more then 24 hours, open the drain valve (on the bottom of the reservoir) and drain any condensate which has collected. See page 14. ATTACHING AIR TOOLS WARNING: BEFORE CONNECTING AIR TOOLS, MAKE SURE THAT YOU READ THE INSTRUCTIONS SUPPLIED WITH THE TOOL, ALSO ENSURE THAT THE TOOL IS SUITABLE FOR USE WITH THE COMPRESSOR AND HOSE SPECIFICATIONS.
  • Page 12: Check The Safety Valve

    CHECK THE SAFETY VALVE To make sure that the safety valve works correctly: 1. Unscrew the knurled end and pull it firmly outwards. • Air will be released when you pull the cap out and stop when released. 2. If the valve does not operate in this way, do not use the compressor.
  • Page 13: Turning The Compressor Off

    REMOVING AIR DRIVEN TOOLS FROM THE AIR HOSE WARNING: ALWAYS SET THE PRESSURE REGULATOR TO ZERO BEFORE YOU REMOVE OR REPLACE A TOOL. 1. Push down on the On/Off button to stop the compressor. 2. Turn the outlet valve handle to the closed position.
  • Page 14: Draining The Reservoir

    DRAINING THE RESERVOIR CAUTION: YOU MUST DRAIN THE RESERVOIR AFTER EACH DAYS USE AND BEFORE YOU PUT YOUR COMPRESSOR INTO STORAGE 1. Turn the compressor off and disconnect from the power supply. 2. Slowly open one of the outlet valves to depressureise the tank. •...
  • Page 15: Maintenance

    MAINTENANCE CHECKING THE OIL LEVEL (DAILY) 1. Make sure that the oil level is half way up the oil sightglass. 2. If not, remove the oil breather cap and add oil to the reservoir. 3. Only use SAE30 compressor oil, available from your local dealer.
  • Page 16: Check The Non-Return Valve (Every 6 Months)

    CHECK THE NON-RETURN VALVE (EVERY 6 MONTHS) If the tank pressure decreases for no apparent reason, it is possible that the non-return valve is leaking. To check, 1. Make sure that the tank is not under pressure and the compressor is switched OFF. 2.
  • Page 17: Cleaning And Storage

    CLEANING & STORAGE Keep the compressor free of dirt and dust as far as possible. Wipe with a clean cloth or blow it down with compressed air at low pressure. If cleaning is required, use a damp cloth and some soft soap. Do not use cleaningagents or solvents as these may be aggressive to the plastic parts.
  • Page 18: Troubleshooting

    TROUBLESHOOTING CAUTION: DO NOT TRY TO REPAIR OR ADJUST THIS COMPRESSOR IF YOU ARE UNCERTAIN OF YOUR ABILITY. IF YOU HAVE ANY QUERIES, CONTACT YOUR DEALER. PROBLEM PROBABLE CAUSE REMEDY The compressor Bad electrical 1. Check electrical has stopped connections. connections.
  • Page 19: Declaration Of Conformity

    DECLARATION OF CONFORMITY...
  • Page 20 DECLARATION OF CONFORMITY...
  • Page 21: Component Parts

    COMPONENT PARTS...
  • Page 22: Parts List

    PARTS LIST CRANKCASE CRANKSHAFT BEARING SEAT OILSEAL GASKET WAVE GASKET FRONT COVER STATOR OIL DRAIN PLUG BALL BEARING OIL SIGHTGLASS SEAL ROTOR OIL SIGHTGLASS BALL BEARING BOLT OIL SEAL BREATHER OVERLOAD PROTECTOR SCREW TANK CONNECTING ROD HOLE PLUG RETAINING RING PISTON PIN SPRING WASHER PISTON...
  • Page 23 RELATED PRODUCTS AVAILABLE...
