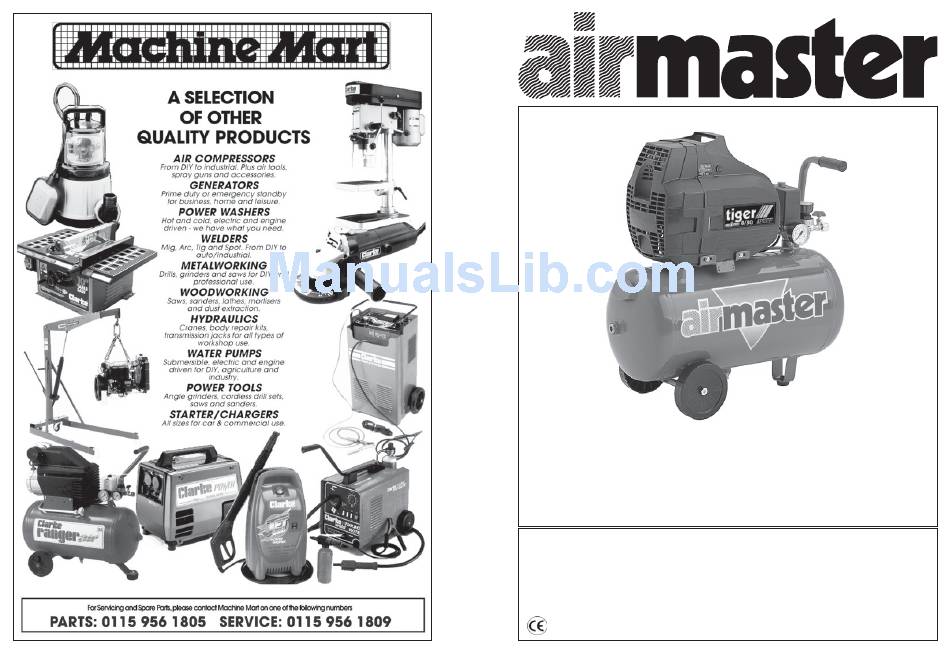

TIGER 8/30 OIL FREE
AIR COMPRESSOR
Operation & MAINTENANCE
INSTRUCTIONS
©
0102

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIGER 8/30 and is the answer not in the manual?

Questions and answers

Summary of Contents for airmaster TIGER 8/30

  • Page 1: Air Compressor

    TIGER 8/30 OIL FREE AIR COMPRESSOR OPERATION & MAINTENANCE INSTRUCTIONS © 0102...
  • Page 2 NOTES ©...
  • Page 3: Table Of Contents

    Thank you for purchasing this Airmaster Oil Free Air Compressor, which is designed for hobby and DIY use only. This machine is not designed to run continuously when delivering pressures greater than 7 bar. Please refer to the Duty Cycle details, under ‘Specifications’ on page 13.
  • Page 4: Safety Precautions

    ACCESSORIES SAFETY PRECAUTIONS Your Airmaster Tiger Oil Free Air Compressor can be used in conjunction with a range of WARNING optional accessories for inflating tyres, air brushing, stapling, blowing and many other uses. For details contact your local accessory stockist. 3 and 5 piece kits are available from your As with all machinery, there are certain hazards involved with their Machine Mart which are ideal for almost all applications.
  • Page 5: Assembly

    14. Personal safety products can be obtained from your local dealer. PARTS IDENTIFICATION 15. Do not exert any strain on electrical cables and ensure that air hoses are not tangled or wrapped around machinery etc. 16. When disconnecting air hoses or other equipment from your compressor ensure that the air supply is turned off at the machine outlet and expel all pressurised air from within the machine and other equipment attached to it.
  • Page 6: Electrical Connections

    For a professional looking finish paint must be thinned. If the manufacturers ELECTRICAL CONNECTIONS recommendations on thinning are not available, the following can be used as a general guide: Water based paints (emulsions) - 10-20% water Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through Oil based paints (gloss) - up to 10% white spirit thinners an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
  • Page 7: Operation

    PAINT SPRAYING HINTS OPERATION (Numbers in brackets refer to fig. 1 below) Before connecting your Tiger to the mains supply, check the following:- WARNING • The mains voltage is 230V. NEVER attempt to spray unless you are wearing suitable, approved •...
  • Page 8: Routine Maintenance

    The device will reset when the temperature falls to a predetermined level. In this event, switch OFF the With considerate use, your AIRMASTER Air Compressor should provide machine and wait for 5 - 10 minutes, before pressing the RESET button (2).
