ASSEMBLY INSTRUCTION

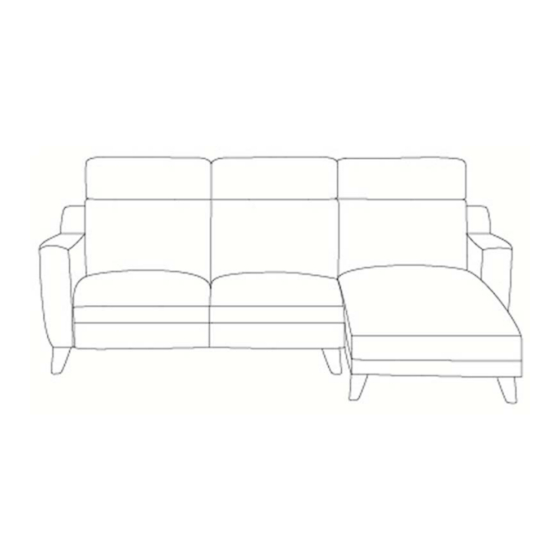

DELUCA 3.5 SEATER WITH CHAISE
ITEM CODE 66139
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084

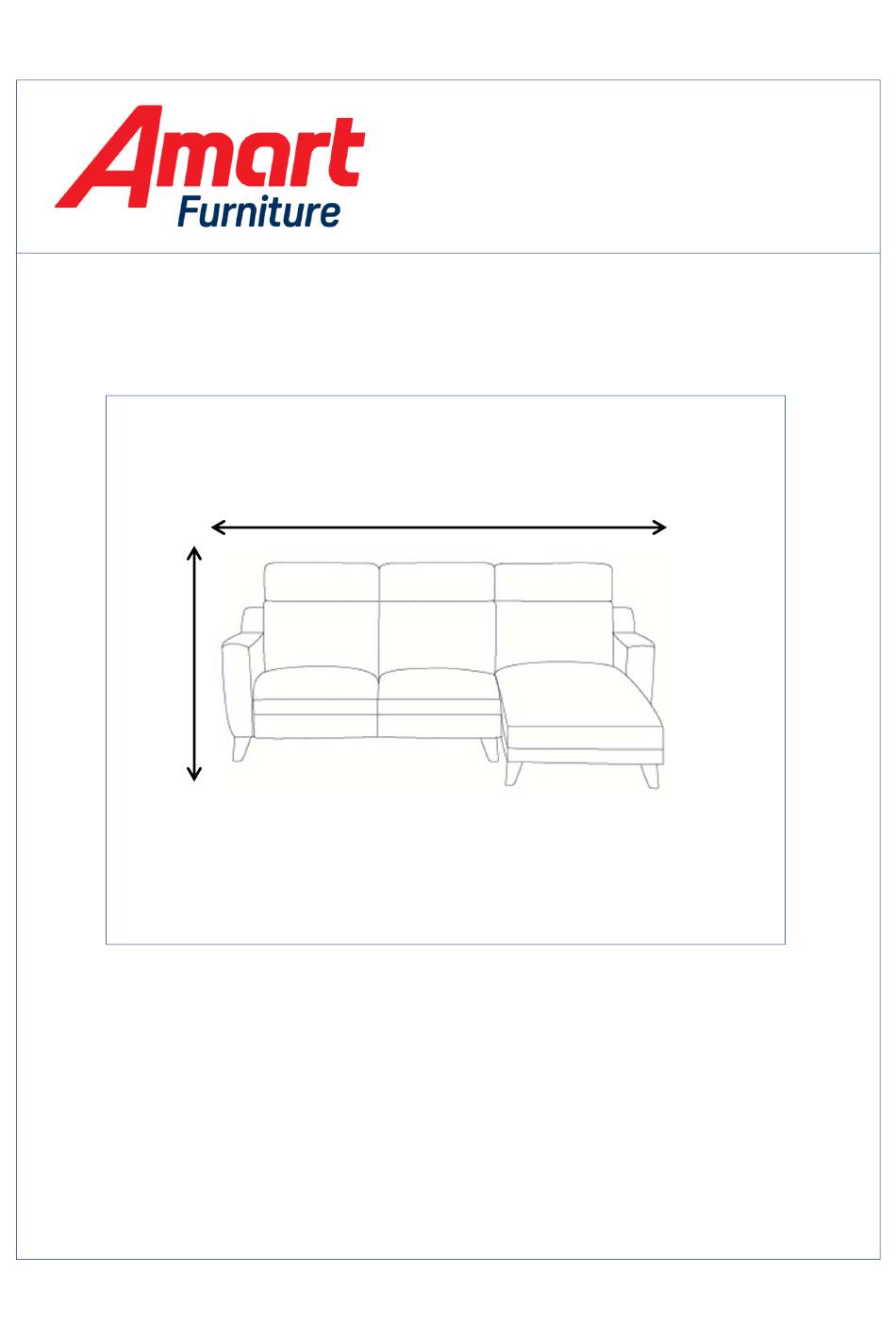

248cm
Depth: 166cm
1
66139
Advertisement
Related Manuals for Amart Furniture DELUCA 66139
Summary of Contents for Amart Furniture DELUCA 66139
- Page 1 ASSEMBLY INSTRUCTION DELUCA 3.5 SEATER WITH CHAISE ITEM CODE 66139 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 248cm 101cm Depth: 166cm Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 66139...
-
Page 2: Pre-Assembly Preparation
PRE‐ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. - Page 3 Locate package of sofa legs, power cord and hardware that Step1: are attached to the post at rear of LHF sofa seat. Bolt M8X40 Washer Hexagon key Timber leg Power cord Plastic leg a. Bolt M8X60 6pcs 6pcs 3pcs 3pcs 1pcs 1pcs STEP2: Take out 3 timber legs, then use hexagon key to fasten the timber legs to the holes at bottom of sofa with bolts and washers. Front With 2 people carefully turn onto back on piece of cardboard or carpet to protect covering completion with 3 timber legs 66139...
- Page 4 Step3: Screw 2 plastic legs at two ends of horizontal support rail in the middle of LHF recliner and 1 plastic leg at rear corner. Front IMPORTANT NOTE Adding the centre support leg is very important for this range. Failing to do this will cause your lounge to sag in the middle which can cause mech misalignments and cause your footrest to come into contact with the floor, resulting in permanent and irreparable damage to your leather. clockwise turning for tighten of plastic leg with screw rear Step4: Slide back receivers into steel mechanism posts in the base of the furniture, and then press both sides of the each back firmly into place ensure each back automatically locks in place. Receiver at bottom of back rest Mechanism post at rear of seat slide receiver into post 66139...
- Page 5 Locate package of sofa legs and hardware that is placed into Step5: zipper pocket at the bottom of right hand facing chaise. With 2 people pocket carefully turn onto back on piece of cardboard or carpet to protect covering Bolt M8X40 Washer Hexagon key Timber leg Plastic leg Bolt M8X90 a. Bolt M8X60 8pcs 10pcs 4pcs 2pcs 1pcs 2pcs STEP6: Take out 4 timber legs, then use hexagon key to fasten the timber legs to the holes at bottom of sofa with bolts and washers. Rear Front completion with 4 timber legs 66139...
- Page 6 Step7: Take out 2 plastic legs, then use hexagon key to fasten the plastic legs to the centre and rear corner at bottom of the chaise with bolts and washers. clockwise turning of hexagon key for tighten of bolts Rear IMPORTANT NOTE Adding the centre support leg is very important for this range. Failing to do this will cause your lounge to sag in the middle which can cause mech misalignments and cause your footrest to come into contact with the floor, resulting in permanent and irreparable Front damage to your leather. Step8: Connect left hand facing sofa to right hand facing chaise. slide clips at connecting item into clips at connected item, then together press front and rear side of connecting item to ensure the clips go into each other to the bottom. 66139...
-
Page 7: Safety Note
Step9: Plug power cable into socket at back of electric seat. Safety Note: Power cable is not to be placed under or within the recliner structure. power cable ASSEMBLY IS COMPLETE SAFETY NOTE: PLEASE ENSURE THAT ALL ELECTRICAL CORDS AND CABLES ARE CLEAR OF THE FRAME AND MECHANISM. A FAILURE TO DO SO MAY SEVER YOUR POWER CORD RESULTING IN SERIOUS INJURY OR DEATH. 66139... - Page 8 READ THESE INSTRUCTIONS THOROUGHLY BEFORE USE: DANGER: TO REDUCE THE RISK OF ELECTRIC SHOCK: Always unplug from electric outlet before cleaning. WARNING: RISK OF INJURY Keep children away from extended footrest and any moving parts. CAUTION: Do not allow children to play on this electric recliner or operate the powered mechanism.
