Amart Furniture VALERIE 66710 Assembly Instruction Manual

3 seater

Download this manual

Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia.

For any assistance with assembly or for missing parts please

phone Amart Furniture, Customer Service Free Call

1800 351 084

ASSEMBLY INSTRUCTION

VALERIE 3 SEATER

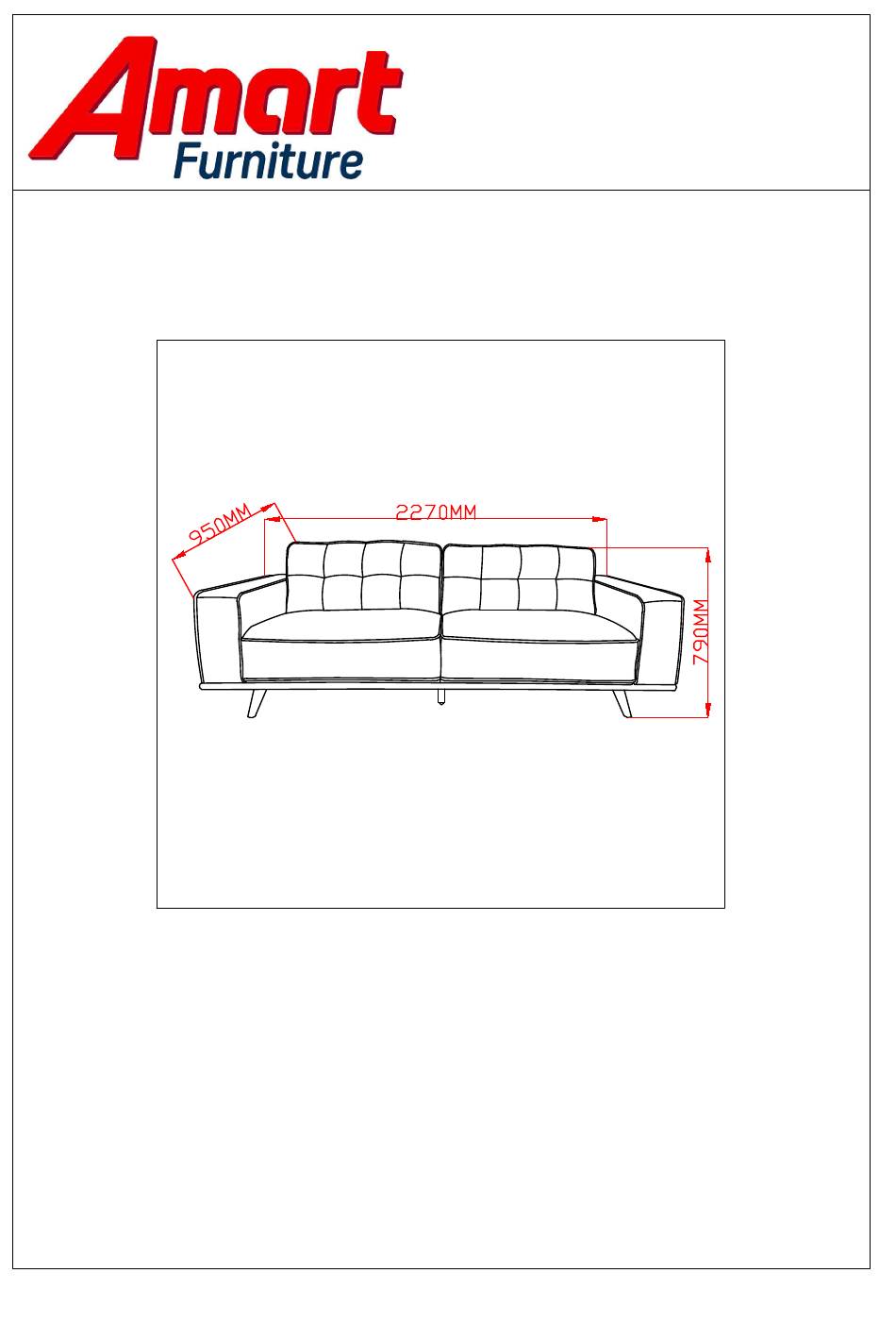

ITEM CODE 66710

Imported by Amart Pty Ltd, Qld, Brisbane Australia.

For any assistance with assembly or for missing parts please phone

Amart furniture, Customer Service Free call 1800 351 084

66710

Need help?

Do you have a question about the VALERIE 66710 and is the answer not in the manual?

Page 1 Imported by Amart Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart furniture, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia. For any assistance with assembly or for missing parts please...
Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
Page 3 PARTS LIST A.1PC D.1PC E.1PC(M5*100) F.8PCS(M8) B.2PCS C.4PCS G.8PCS(M8*19) H.8PCS(M8*30) Allen Key Seat Backrest Middle Leg Flat Washer Spring Washer Bolt 66710...
Page 4 Attach leg(C) to base frame(A) ,using bolt(H) with flat STEP 1 washer(G) and spring washer(F),then fasten by allen key(E). Attach middle leg (D) by fastening to thread in centre of base. With 2 people carefully turn over STEP 2 66710...
Page 5 STEP 3 Lift Backrest Frame into upright position. STEP 4 Place the backrest(B) on the seat(A) and secure with Hook and Loop Tape. 66710...
Page 6 ASSEMBLY IS COMPLETE 66710...
