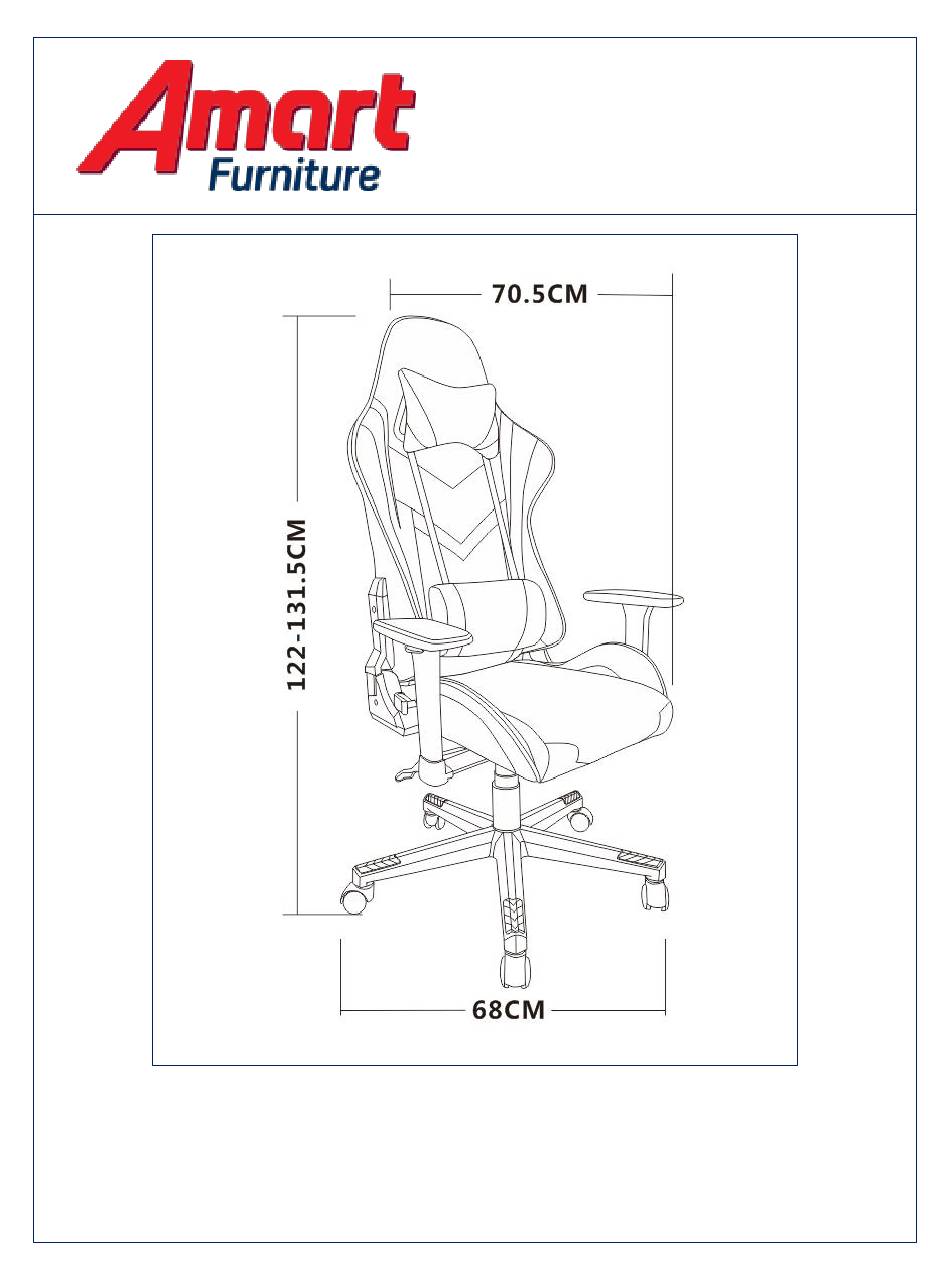

ASSEMBLY INSTRUCTION
AG1 Gaming Chair
ITEM CODE 66360
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
1-8
66360
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture AG1
Summary of Contents for Amart Furniture AG1
- Page 1 ASSEMBLY INSTRUCTION AG1 Gaming Chair ITEM CODE 66360 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST HEADREST BACK LUMBAR PILLOW ARMREST(L)&(R) REGULATOR SEAT MECHANISM GAS LIFT COVER GAS LIFT BASE CASTOR Bolt Bolt Bolt Rubber cover Regulator housing Allen key 1 PC 2 PCS 66360...
- Page 4 STEP 1: 1. Insert castor ⑪ into base ⑩. 2. Put gas lift ⑨ into base ⑩, then put gas lift cover on gas lift as shown. STEP 2: Attach the mechanism ⑦ to the seat using bolt B and fasten with the Allen key D.
- Page 5 STEP 3: Attach the armrest ④ to seat ⑥ using bolt A and fasten with the Allen key D. STEP 4: Attach the regulator ⑤ to the back ② using bolt B. Then fasten with the Allen key D as shown. 66360...
- Page 6 STEP 5: Cover the cover E of regulator using Bolt C, and fasten with Cross wrench D,then cover bolt with rubber cover. STEP 6: Put the chair mechanism ⑦ on the gas lift ⑨ as shown. 66360...
- Page 7 STEP 7: Installation method for the top pillows and lower pillows. Top pillows installed Lower pillows installed Adjustment strap Adjustment strap Figure 1 Figure 1 1.Pass both ends of the adjustment 1.Move the adjustment strap strap through the seat back hole. across the back of the chair where it is attached to the seat.
- Page 8 GENERAL PRODUCT CARE CARE AND MAINTENANCE OFFICE CHAIR DO NOT REMOVE THIS LABEL ● DO NOT STAND ON THIS CHAIR-DO NOT USE THIS CHAIR AS STEP LADDER. ● USE THIS PRODUCT ONLY FOR SEATING ONE PERSON AT A TIME. ● DO NOT USE THIS CHAIR UNLESS ALL BOLTS, SCREWS AND KNOBS ARE FIRMLY SECURED.
