Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
ASSEMBLY INSTRUCTION

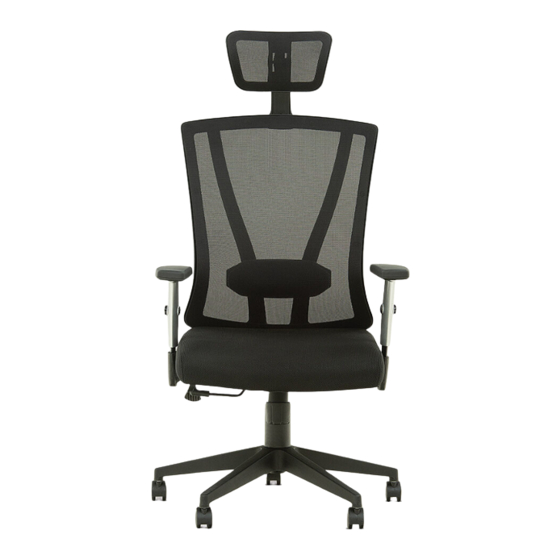

CANTERBURY OFFICE CHAIR
ITEM CODE 66263
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
9-1
66263
Advertisement
Related Manuals for Amart Furniture CANTERBURY 66263
Summary of Contents for Amart Furniture CANTERBURY 66263
- Page 1 ASSEMBLY INSTRUCTION CANTERBURY OFFICE CHAIR ITEM CODE 66263 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST HEADREST BACK ARMREST (L)&(R) SEAT GAS LIFT BASE CASTOR MECHANISM bolt bolt bolt bolt Rubber pad Allen key 66263... - Page 4 STEP 1: Insert castor to base STEP 2: Put gas lift into base as instruction shown, then put gas lift cover on gas lift. Remove gas lift cover before assembly. gas lift cover gas lift body 66263...
- Page 5 STEP 3: Put the gasket into the screw B, connect the handrail with the screw B, connect the rubber pad F, connect it to the seat , and finally fasten it with an Allen key. STEP 4: The metal ring is used to connect the mechanism Connect the mechanism to the back .
- Page 6 STEP 5:Connect the mechanism to the seat , and fasten the screw E to the mechanism with an Allen key. STEP 6: Connect the screw D to the headrest on the connection back and fasten it with an Allen key. Put the whole back and seat to the gas lift , make sure the mechanism hole directly into...
- Page 7 STEP 5: Assembly is complete. 66263...
-
Page 8: General Product Care
GENERAL PRODUCT CARE To protect your furniture, we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
