101cm
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
ASSEMBLY INSTRUCTION

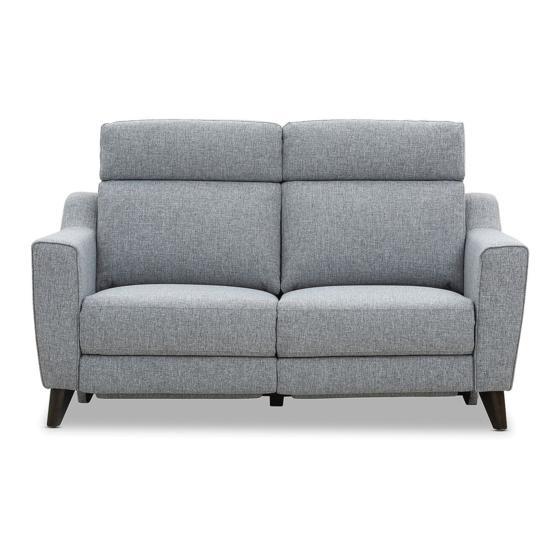

DELUCA 2.5 SEATER
ITEM CODE 66138
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
173cm
Depth: 97cm
1
66138
Advertisement
Related Manuals for Amart Furniture DELUCA 66138
Summary of Contents for Amart Furniture DELUCA 66138
- Page 1 ASSEMBLY INSTRUCTION DELUCA 2.5 SEATER ITEM CODE 66138 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 173cm 101cm Depth: 97cm Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 66138...
- Page 2 PRE‐ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
- Page 3 Locate package of sofa legs, power cord and hardware that Step1: are attached to the bottom of sofa. With 2 people carefully turn onto back on piece of cardboard or carpet to protect covering Bolt M8X40 Washer Hexagon key Timber leg Power cord Plastic leg a. Bolt M8X60 9pcs 9pcs 4pcs 1pcs 1pcs 1pcs STEP2: Take out 4 timber legs, then use hexagon key to fasten the timber legs to the holes at bottom of sofa with bolts and washers. clockwise turning of hexagon key for tighten of bolts completion with 4 timber legs 66138...
- Page 4 Step3: Take out plastic leg, then use hexagon key to fasten the plastic leg to the centre at bottom of sofa with bolts and washers. clockwise turning of hexagon key for tighten of bolts IMPORTANT NOTE Adding the centre support leg is very important for this range. Failing to do this will cause your lounge to sag in the middle which can cause mech misalignments and cause your footrest to come into contact with the floor, resulting in permanent and irreparable damage to your leather. Step4: Slide back receivers into steel mechanism posts in the base of the furniture, and then press both sides of the each back firmly into place to ensure each back automatically locks in place. Receiver at bottom of back rest Mechanism post at rear of seat slide receiver into post 66138...
- Page 5 Step5: Plug power cable into socket at back of electric seat. Safety Note: Power cable is not to be placed under or within the recliner structure. power cable ASSEMBLY IS COMPLETE SAFETY NOTE: PLEASE ENSURE THAT ALL ELECTRICAL CORDS AND CABLES ARE CLEAR OF THE FRAME AND MECHANISM. A FAILURE TO DO SO MAY SEVER YOUR POWER CORD RESULTING IN SERIOUS INJURY OR DEATH. 66138...
- Page 6 READ THESE INSTRUCTIONS THOROUGHLY BEFORE USE: DANGER: TO REDUCE THE RISK OF ELECTRIC SHOCK: Always unplug from electric outlet before cleaning. WARNING: RISK OF INJURY Keep children away from extended footrest and any moving parts. CAUTION: Do not allow children to play on this electric recliner or operate the powered mechanism.
