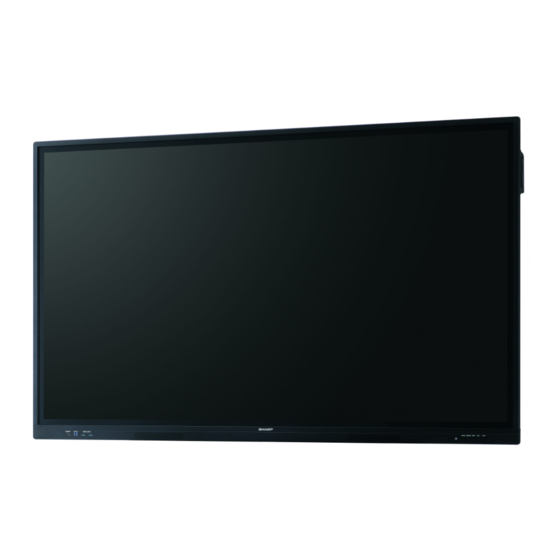

Sharp PN-LC862 Operation Manual
  1. Manuals
  2. Brands
  3. Sharp Manuals
  4. Monitor
  5. PN-LC862
  6. Operation manual
Sharp PN-LC862 Operation Manual

Sharp PN-LC862 Operation Manual

Hide thumbs Also See for PN-LC862:
Table of Contents

Advertisement

Quick Links

Download this manual
PN-LC862
PN-LC752
PN-LC652
LCD MONITOR
OPERATION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Sharp PN-LC862

Summary of Contents for Sharp PN-LC862

  • Page 1 PN-LC862 PN-LC752 PN-LC652 LCD MONITOR OPERATION MANUAL...
  • Page 2 Batteries are collected at points of sale. Return is free of charge. If the equipment has been used for BUSINESS PURPOSES, please contact your SHARP dealer who will inform you about take-back. You might be charged for the costs arising from take-back. Small equipment (and small quantities) might be taken back by your local collection facility.

  • Page 3: Important Information

    IMPORTANT INFORMATION WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, within CAUTION a triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” RISK OF ELECTRIC within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric...

  • Page 4: Dear Sharp Customer

    DEAR SHARP CUSTOMER Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product. SAFETY PRECAUTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled.
  • Page 5 SAFETY PRECAUTIONS (Continued) 19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below: •...

  • Page 6: Tips And Safety Instructions

    TIPS AND SAFETY INSTRUCTIONS - The TFT color LCD panel used in this monitor is made with - If you or a third party uses the product incorrectly, or if the the application of high precision technology. However, there product is subjected to the effects of static electricity or may be minute points on the screen where pixels never light electrical noise, or if the product malfunctions or is repaired, or are permanently lit.

  • Page 7: Mounting Precautions

    MOUNTING PRECAUTIONS • For SHARP dealers or service engineers, please confirm “Mounting Precautions (For SHARP dealers and service engineers)”.(See page 62.) • This product is for use indoors. • A mounting bracket compliant with VESA specifications is required. • Since the monitor is heavy, consult your dealer before installing, removing or moving the monitor.

  • Page 8: Table Of Contents

    Intellectual Property Rights and Other Matters ..61 Mounting Precautions Touch action ...............20 Cautionary points ............20 (For SHARP dealers and service engineers) ....62 Basic Operation .............21 About the home screen of APPLICATION mode ..21 Using the remote control unit ........26 Overlay board (Annotation) ........29...

  • Page 9: Supplied Components

     Wireless adapter: 1  Power cord  Cover SHARP logo: 1  Remote control unit battery: 2 Place this sticker onto the SHARP logo to cover the logo.  Setup Manual: 1  Touch pen: 2  Camera mount: 1 ...

  • Page 10: Part Names

    • Go to sleep mode. 27. DisplayPort input terminal (See page 12.) • Turn off the monitor. 28. Main power switch (See page 17.) 32. Vents 29. AC input terminal (See page 14.) Caution • Consult your SHARP dealer for attachment/detachment of optional parts.
  • Page 11 Part Names nRemote control unit 1. Signal transmitter 2. Operation buttons (See page 26.)

  • Page 12: Connecting Peripheral Equipment

    Connecting Peripheral Equipment 12 13 1. HDMI1 input terminal Caution 2. HDMI2 input terminal • Be sure to turn off the main power switch and disconnect • Use a commercially available HDMI cable (conforming to the plug from the power outlet before connecting/ the HDMI standard) that supports 4K.
  • Page 13 For details, please refer to the manual on the following website. • To remove a USB flash drive connected to a computer, https://www.sharp.eu/download-centre refer to the manual of the computer. 15. LAN terminal • You can connect to a network by using a commercially available LAN cable.

  • Page 14: Connecting The Power Cord

    Connecting the Power Cord Caution • Use only the power cord supplied with the monitor. 1. Turn off the main power switch. 2. Plug the power cord (supplied) into the AC input terminal. 3. Plug the power cord (supplied) into the power outlet. AC input terminal Power cord (Supplied)

  • Page 15: Preparing The Remote Control Unit

    Preparing the Remote Control Unit Installing the batteries Remote control operation range 1. Place your finger on the part marked with the ▲, and The operation range of the remote control unit is approx. 16.4 feet (5 m) at an angle of approx 10° from the center to the top/ then pull the cover off.

  • Page 16: Mounting A Web Camera

    Mounting a web camera It is possible to mount the PN-ZCMS1 Video-Conferencing Soundbar (optional) or a commercially available web camera (1.1 kg (2.4 lbs.) or less). Camera mount screw (M3x6) (supplied) Camera mount (supplied) Camera screw (inch thread) (supplied) 1. Remove the screw from this monitor. 2.

  • Page 17: Turning Power On/Off

    Turning Power On/Off Turning power on Caution • Turn on the monitor first before turning on the computer or 1. Press the POWER button. playback device. • When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds. A short interval may result in a malfunction.

  • Page 18: Turning Power Off

    Turning Power On/Off n O perations after first power-on Turning power off When you turn on the power for the first time, the language 1. Press the POWER button on the remote control unit. settings screen appears. Be sure to set the date and time. Or, press and hold the POWER button on the monitor.

  • Page 19: Touch Pen

    Touch Pen Pen tip (thick) Pen tip (thin) The following pre-installed software recognizes the side of the touch pen that is touching the screen, enabling the two sides to be used as different pens. • Whiteboard For details on how to use the touch pen in Whiteboard, refer to “Whiteboard” (see page 31). TIPS •...

  • Page 20: Touch Action

    Touch action Touch action Cautionary points • Do not use the touch pen for any purpose other than touch Touch actions that can be used with this monitor differ panel operation. according to operating system and application. The functions • Do not press hard on the pen tip. of touch actions are also different.

  • Page 21: Basic Operation

    Basic Operation About the home screen of APPLICATION mode This screen appears when the HOME button is pressed or the input mode is changed to APPLICATION. Start “Whiteboard”. (See page 31.) Start “Web Browser”. (See page 42.) Start “File Manager”. (See page 37.) Start “EShareServer”.
  • Page 22 Basic Operation Vote and count using the internet. After setting the subject and options, a QR code will appear. Scan with a device such as a smartphone and vote on the displayed page. Touch “END VOTING”, the result will be displayed. The result can be saved as image file or inserted into Whiteboard.
  • Page 23 Basic Operation (5) Change the input mode. Input mode Video Audio APPLICATION APPLICATION APPLICATION HDMI1 HDMI1 input terminal HDMI1 input terminal HDMI2 HDMI2 input terminal HDMI2 input terminal HDMI3 HDMI3 input terminal HDMI3 input terminal DisplayPort DisplayPort input terminal DisplayPort input terminal USB-C USB Type C port USB Type C port...
  • Page 24 Basic Operation ■Control Panel (1) Shortcut Tools Various operations can be performed. : Turns Bluetooth on/off when attaching a wireless adapter. : Temporarily mutes audio. Touching again will return it back to the original volume. : Save the image of the display of the dragged area, or import it in to the Whiteboard. : Displays a still image of what is displayed on this monitor.
  • Page 25 Basic Operation (2) Sidebar Set how the sidebar is displayed. Tap: Touch the screen. Swipe: Swipe inward from the outside of the screen (from either left or right). (3) Adjust the volume. (4) Adjust the brightness. (5) Apps Display the applications installed on this monitor. ■Compass “Compass”...

  • Page 26: Using The Remote Control Unit

    Basic Operation Using the remote control unit 5. VOLUME +/- (Volume adjustment) Press + or - to adjust the volume. 6. INFORMATION Displays monitor information. The display changes from “INFORMATION1” → “INFORMATION2” → clear display, and so on every time you press this button.
  • Page 27 Basic Operation 10. Buttons for playing the files or operating the HDMI- 18. MENU connected device The “Picture” screen of the General menu is displayed. (See When used for playing the files, the buttons that can be used page 48.) vary depending on the file that is played.
  • Page 28 Basic Operation nSwitching the screen size Even when the screen size is changed, the display may remain the same depending on the input signal. Wide Displays image so it fills the entire screen. 4:3* Displays the image with an aspect ratio of 4:3. Use with 4:3 signals such as 640 ×...

  • Page 29: Overlay Board (Annotation)

    Basic Operation Overlay board (Annotation) You can draw characters or lines on the images being displayed on this monitor. Touch on the sidebar or Compass. In this application, the data of one screen is referred to as a “sheet”. A maximum of 20 sheets can be opened. : Switches the display position to the left and right.

  • Page 30: Freeze

    Basic Operation Freeze Freezes the video shown on the monitor. Either press the FREEZE button on the remote control unit, or touch on the sidebar and touch In the case of a still image, is displayed at the top left of the screen. Settings window Settings window: Touch to operate.

  • Page 31: Whiteboard

    Whiteboard • You can write letters or draw lines on the screen as a whiteboard. • You can print or save content written on the screen. • You can display an image or PDF file, and write/draw letters and lines on the image. •...
  • Page 32 Whiteboard nFunction list Tool Function Draw lines. (See page 33.) Erase a line that you drew. (See page 33.) Select a drawn line. You can move, zoom in on, or zoom out on the selected line. (See page 34.) Draw a figure. After selecting a figure, drag an area to include the figure.

  • Page 33: Drawing

    Whiteboard Drawing The side of the touch pen (supplied) that is touching the screen, enabling the two sides to be used as different pens. 1. Touch The line setting (color, thickness, opacity, nib) can be changed. Configure the settings for drawing with the thick nib of the touch pen (supplied) or finger.

  • Page 34: Selecting A Drawn Line

    Whiteboard Selecting a drawn line Select a drawn line. Selected lines can be moved, enlarged/reduced and rotated. 1. Touch 2. Select a line. (See below.) Selection method: Touch a line. Trace over the line you wish to select. Enclose the line you wish to select. Opening a file or application on the current sheet Depending on memory usage and other factors, it may not be possible to open a file even if it is in a supported format.

  • Page 35: Opening A File

    Whiteboard Opening a file Data of this application that is saved is opened as a new whiteboard. The current whiteboard closes. The whiteboard data that is not saved is lost. 1. Touch If the current whiteboard has not been saved, a confirmation screen is appear. If you need it, touch “Yes” and save. 2.

  • Page 36: Wireless Display (Eshare)

    • The other device connects to the monitor, and the image from the other device appears on the monitor. 5. Start Overlay board. You can draw on the displayed image and save the displayed image. TIPS • The manual for this application can be downloaded from our website. (Provided only In English.) https://www.sharp.eu/download-centre...

  • Page 37: File Manager

    File Manager Manages the files and folders in the internal storage and the USB flash drive connected to the monitor. You can also display or play back the files. 1. On the home screen of APPLICATION mode, touch “File Manager”. Exit File Manager.
  • Page 38 File Manager Renaming 1. Display the file/folder to be renamed. 2. Touch to select the file/folder to be renamed. 3. Touch 4. Enter the new name, and then touch “OK”. nFile display/playback Image files (1) Returns to the list of files. (2) Displays the previous/next image.
  • Page 39 File Manager Video files (1) Plays the previous/next video. (2) Change the speed of video playback. (3) Plays the video. Pause the playback. (4) Moves the play position to the specified time. (5) Displays a list of video files in the same folder. (6) Displays information about the video.
  • Page 40 File Manager Video files Extension Video coding Audio coding Max. resolution Maximum bit rate mpeg1/2 (MP @HL) Mpeg-4 (Simple Profile, Advanced Simple Profile@ Mpeg1/2 Layer1/2/3, 1920x1080@60fps 80Mbps Level 5) * *.3gp (*.3GP2) AAC-LC, vorbis, LPCM, AMR-NB H.263 H.264 (Main, High, High10@Level 6.0) 4096x2304@60fps 200Mbps Mpeg1/2 Layer1/2/3,...

  • Page 41: Pdf Viewer

    PDF Viewer Starts when a PDF file is opened on an application such as “File Manager”, etc. (1) Displays the PDF. Zoom-in or zoom-out the display by pinching. Magnify the display by double-tap. Displays the current page / total number of pages. Rotate the page view 90°.

  • Page 42: Web Browser

    TIPS • The manual for this application can be downloaded from our website. (Provided only in English.) https://www.sharp.eu/download-centre • If a large-sized website is displayed, the Web Browser may close. • If the application does not work properly, make sure that the date and time are set correctly.

  • Page 43: Printing

    Printing You can print with SHARP MFP that supports the Sharp Print Service Plugin on the same network on this monitor. (1) Select an MFP with (2) Set the printing settings. (3) Check the page to you want to print.

  • Page 44: Updating The Software (Update)

    Updating the Software (Update) Update applications that are factory-installed in APPLICATION mode. (A network environment that allows access to the internet is required.) On the home screen of APPLICATION mode, touch “All Apps”, and then touch “Updater”. When you use Updater, a password is required. (Factory setting) (See page 45.) The “Export Law Assurances”...

  • Page 45: Menu Items

    Menu Items Displaying the menu screen Adjusts the images and sound. Makes settings for this monitor. Caution • Do not turn the main power switch off while the menu items are being displayed. Doing so may initialize the settings. Touch to operate. 1.

  • Page 46: Menu Item Details

    Menu Items Menu item details n Setup Monitor Operation mode “Mode1” is the recommended setting and conforms to the “Normal Configuration” as defined in the EcoDesign Regulation (2019/2021). Mode1 ......“Power management” is set to “Power standby” and “Power save mode” is set to on. These settings can not be changed.
  • Page 47 Auto logout time (minutes) ..Sets the time to logout automatically by minutes when there is no communication. Reset ......... Initialize the “Monitor control via network” settings. Command Format Select the command format. For details of each command, see the manual on the following website. https://www.sharp.eu/download-centre...
  • Page 48 Menu Items n General Custom Wallpaper Sets the background of the home screen of APPLICATION mode. Audio Volume Adjusts the volume. Max volume Sets the maximum volume that cannot be exceeded. Balance Adjusts the balance of the audio sound between right and left. Sound mode Selects the sound mode.
  • Page 49 Menu Items Screen record Configure the settings for “Screen record”. (See page 22.) Resolution Select the resolution of the video file to be recorded. Volume source Select the audio to record. Time limit Set the maximum recording time. n Device Bluetooth Set whether or not to use a commercially available Bluetooth device when attaching a wireless adapter.
  • Page 50 Menu Items n Input Input settings Size (HDMI/D-SUB/USB-C/DisplayPort/Video/OPS) Changes the screen size. (See page 28.) PC mode (HDMI) Configures the contents to be displayed on the HDMI input terminal. Auto ......Switches automatically. PC ......Displays as a computer. Video ....... Displays as an AV device. CEC settings (HDMI) Makes settings for linkage with devices connected to HDMI input terminal through HDMI CEC.
  • Page 51 Menu Items n System Date & Time Automatic date & time Sets whether or not to set the data & time automatically via network. Date & Time Sets the date and time when “Automatic date & time” is set to off. Date format Sets the display format for the date.

  • Page 52: Adjustments For Computer Screen Display

    Menu Items n Schedule Adjustments for computer screen display You can set the time to switch the monitor on and off. nAutomatic adjustment Set this function with “Power status” in the System menu. (See page 51.) When you use the “D-SUB” to display a computer screen for the first time, or when you change the setting of the computer, use the automatic screen adjustment.

  • Page 53: Reset/Functional Restriction Setting (Function Menu)

    Reset/Functional Restriction Setting (Function menu) You can reset the settings to the factory default settings or Application lock restrict operations. When you use Function menu, a password Sets whether or not to lock the use of the following is required. (Factory setting) (See page 45.) application.

  • Page 54: Troubleshooting

    Troubleshooting The video from the HDMI input terminal does not appear If you are experiencing any problem with your display, before properly. calling for service, please review the following troubleshooting tips. • Does the HDMI cable support 4K, and is it HDMI standard compliant? The monitor will not work with cables that are There is no picture or sound.
  • Page 55 Remove dust if • Set the screen size to “Wide”. (See page 28.) possible. Ask SHARP dealer about removing internal dust. The screen is dark. No sound is heard from the speaker.

  • Page 56: Specifications

    When no optional part is attached. As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from...
  • Page 57 * When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible mounting method. SHARP recommends using M8 screws and tighten the screws. Note that screw hole depth of the monitor is 9/16 inch (15 mm). Loose mounting may cause the product to fall, resulting in serious personal injuries as well as damage to the product.
  • Page 58 Specifications nCompatible signal timing (PC) Digital Analog Frequency Screen resolution Hsync Vsync HDMI DisplayPort USB-C D-SUB VESA 640 × 480 31.5kHz 60Hz 25.175MHz 800 × 600 37.9kHz 60Hz 40MHz 1024 × 768 48.4kHz 60Hz 65MHz 1280 × 960 60kHz 60Hz 108MHz 1280 ×...
  • Page 59 Specifications nCompatible signal timing (AV) Screen resolution Frequency HDMI USB-C 4096 × 2160p 24Hz 25Hz 30Hz 50Hz 59.94Hz 60Hz 3840 × 2160p 24Hz 25Hz 30Hz 50Hz 59.94Hz 60Hz 1920 × 1080p 24Hz 50Hz 59.94Hz 60Hz 1920 × 1080i 50Hz 59.94Hz 60Hz 1280 ×...
  • Page 60 Specifications nChannels that can be used in wireless LAN (Europe) Frequency band Standard Channel (center frequency) IEEE802.11n/g/b 1-13ch 2412-2472MHz IEEE802.11ac/n/a 36/40/44/48ch 5180-5240MHz 52/56/60/64ch 5260-5320MHz 100/104/108/112/116/120/124/128/132/136/140ch 5500-5700MHz • Outdoor use of the 5 GHz band is restricted by the Radio Law. nChannels that can be used in wireless LAN (Asia/Pacific) Frequency band Standard...

  • Page 61: Intellectual Property Rights And Other Matters

    The copyrights for the software components and various relevant documents included with this product that were developed or written by SHARP are owned by SHARP and are protected by the Copyright Act, international treaties, and other relevant laws. This product also makes use of freely distributed software and software components whose copyrights are held by third parties.

  • Page 62: Mounting Precautions (For Sharp Dealers And Service Engineers)

    Mounting Precautions (For SHARP dealers and service engineers) • When installing, removing or moving the monitor, ensure that this is carried out by at least 4 people. (PN-LC652: at least 2 people.) • Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
  • Page 63 PN-LC862-LC752-LC652 Me EN23D(1)

This manual is also suitable for:

Pn-lc752Pn-lc652
